EUROPOWER PMP1000/PMP3000/PMP5000
Fig. 4.7: Speakon
®
pin assignment
4 INSTALLATION
4.3 Loudspeaker connections
Your power mixer is equipped with high-quality loudspeaker
connectors (compatible to Neutrik
®
Speakon
®
), which ensure
safe and trouble-free operation. The Speakon
®
connector was
especially developed for high-power loudspeakers. Once it is
plugged in, it safely locks into position and cannot be accidentally
disengaged. It prevents the occurrence of electrical shock and
ensures the correct polarity. Each of the loudspeaker jacks
carries only the assigned single signal (see the information given
on the rear panel of the power mixer).

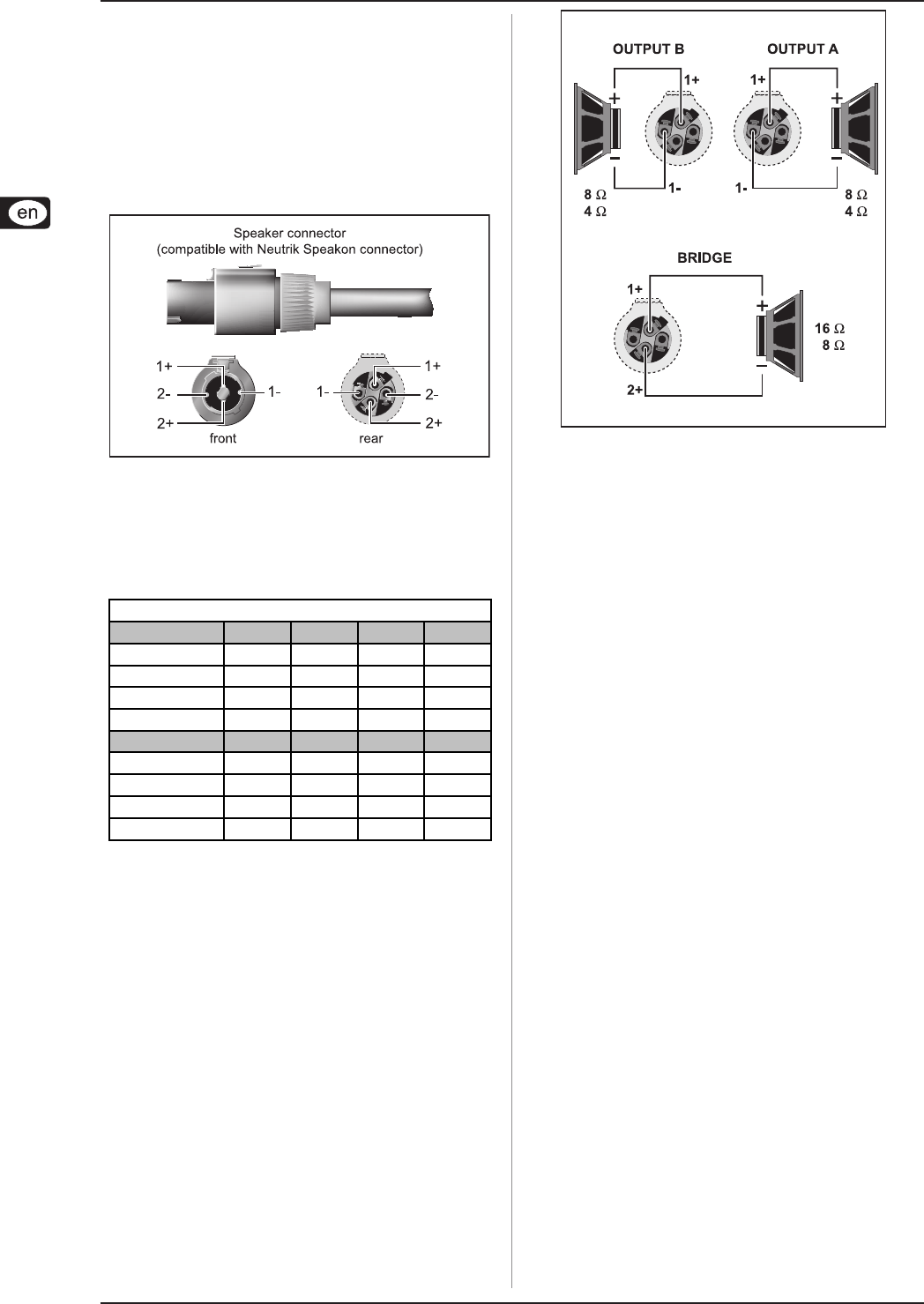

Fig. 4.6: Professional speaker connector with polarity
allocation
Please be sure to only use commercial Speakon
®
cables (type
NL4FC) for connecting your loudspeakers to the power mixer.
Please check the pin assignment of your loudspeakers and
cables dependent on the PMP speaker output you choose.
OUTPUT A 1+ 1- 2+ 2-
MAIN L xx
MONITOR xx
MONO xx
OUTPUT B xx
OUTPUT B 1+ 1- 2+ 2-
MAIN R xx
MONO xx
MONO xx
BRIDGE xx
EUROPOWER PMP1000/PMP3000/PMP5000
Tab. 4.1: Polarity configuration of speaker connectors
