EUROPOWER PMP1000/PMP3000/PMP5000
4 INSTALLATION
4 INSTALLATION
4.1 Mains connection
The mains connection is made using the enclosed power cord
and a standard IEC receptacle. It meets all of the international
safety certification requirements.
Blown fuses must be replaced by fuses of the same type and
rating.
Please make sure that all units have a proper
ground connection. For your own safety, never
remove or disable the ground conductor from the
unit or of the AC power cord.
4.2 Audio connections
The inputs and outputs of your BEHRINGER EUROPOWER are
unbalanced 1/4" mono jacks—except for the mono channel line
inputs, which are balanced 1/4" stereo jacks. Of course, all
inputs and outputs work with both balanced and unbalanced
connectors. The tape in and outputs are on RCA connectors.
Please ensure that only qualified personnel install
and operate the PMP. During installation and
operation, the user must have sufficient electrical
contact to earth. Electrostatic charges might affect
the operation of the unit.

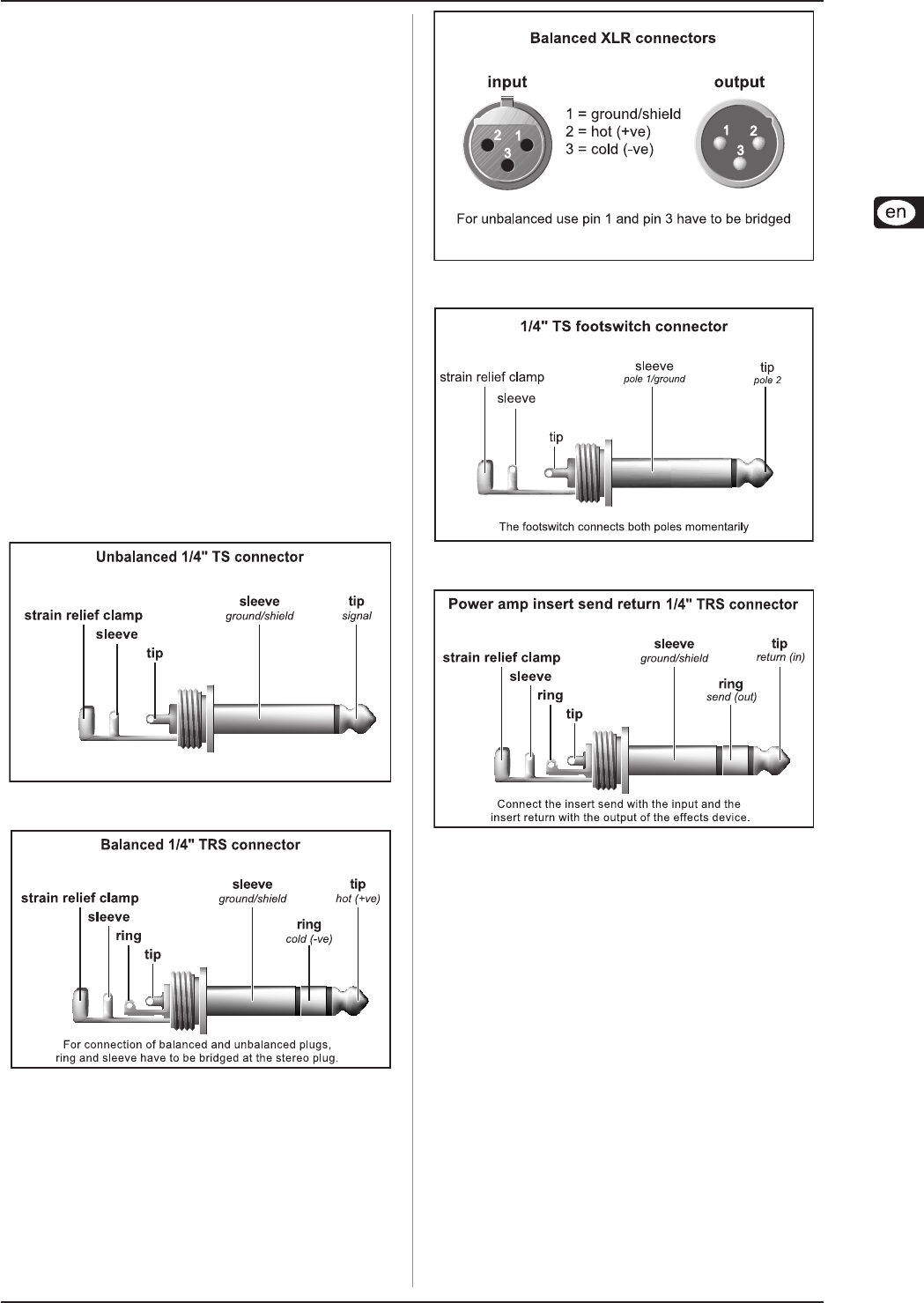

Fig. 4.1: ¼" TS connector
Fig. 4.2: ¼" TRS connector
Fig. 4.3: XLR connectors
Fig. 4.4: ¼" mono plug for footswitch
Fig. 4.5: Stereo ¼" TRS connector for power amp
ISR connection
