3.2.2.3 Enable output boost:
Output boost can be enabled for the output signal equalization over a long
cabling when desired.
Command........................................... Response
ASCII e or E (Hex 65 or 45).................Enable boost (1=DVI – 2=UTP)
ASCII 1 (or Hex 31).................................................. DVI boost enabled
ASCII 2 (or Hex 32)..................................................UTP boost enabled
3.2.2.4 Disable output boost:
Output boost can also be disabled for the output signal equalization over a
long cabling when desired.
Command........................................... Response
ASCII d or D (Hex 64 or 44)...............Disable boost (1=DVI – 2=UTP)
ASCII 1 (or Hex 31)................................................. DVI boost disabled
ASCII 2 (or Hex 32).................................................UTP boost disabled
3.2.2.5 Read EDID Information:
Read EDID information from the currently selected EDID routing selection
Command........................................... Response
ASCII r or R (Hex 72 or 52)....................................................................
Reading EDID info from DVI-Local (or UTP-Remote) Device
Or
Reading EDID info from Emulate Default (or Emulate Learned) memory

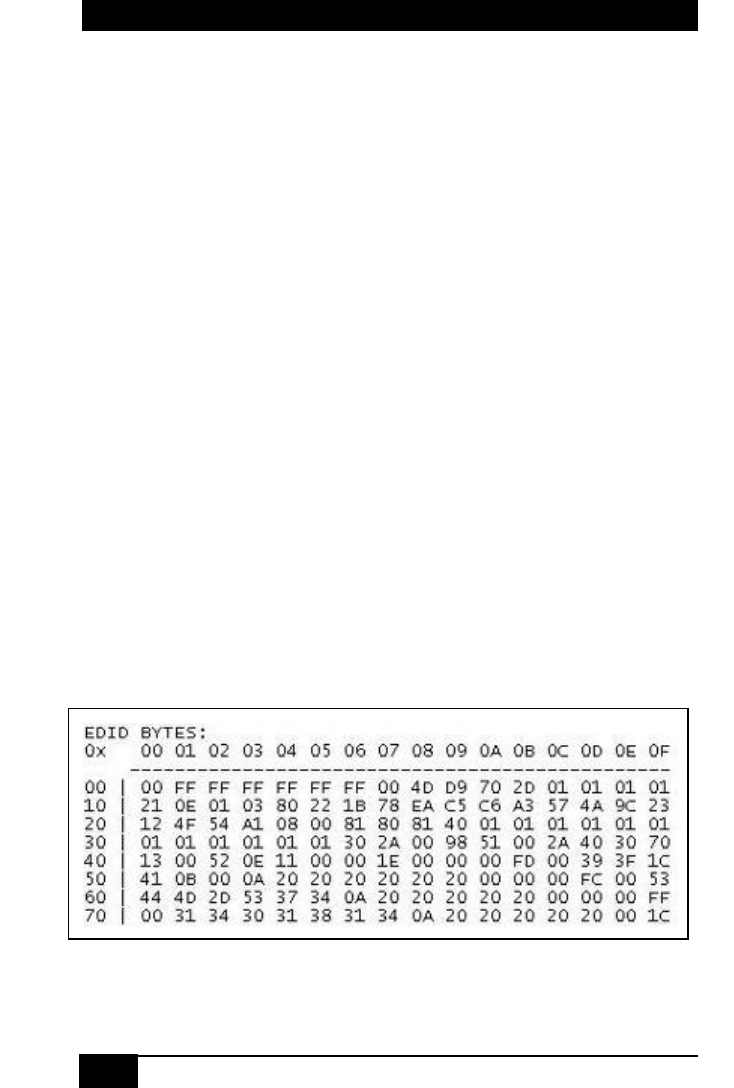

Output is in a tabular format similar to below:
