– 6 –
3. Place the piano on the front half of the stand
so that the metal fitting holes are seen when
viewed from the top. Slide the piano backward
while holding it with one hand so that it does
not incline and fall from the stand. The hooks
on the piano are then engaged with the metal
fittings on the Side Panels. Pay attention so that
your hand or fingers are not caught between the
stand and piano. Fasten the piano and the stand
with four bolts (F).
(D)
(E)
(C)
(A)
(B)

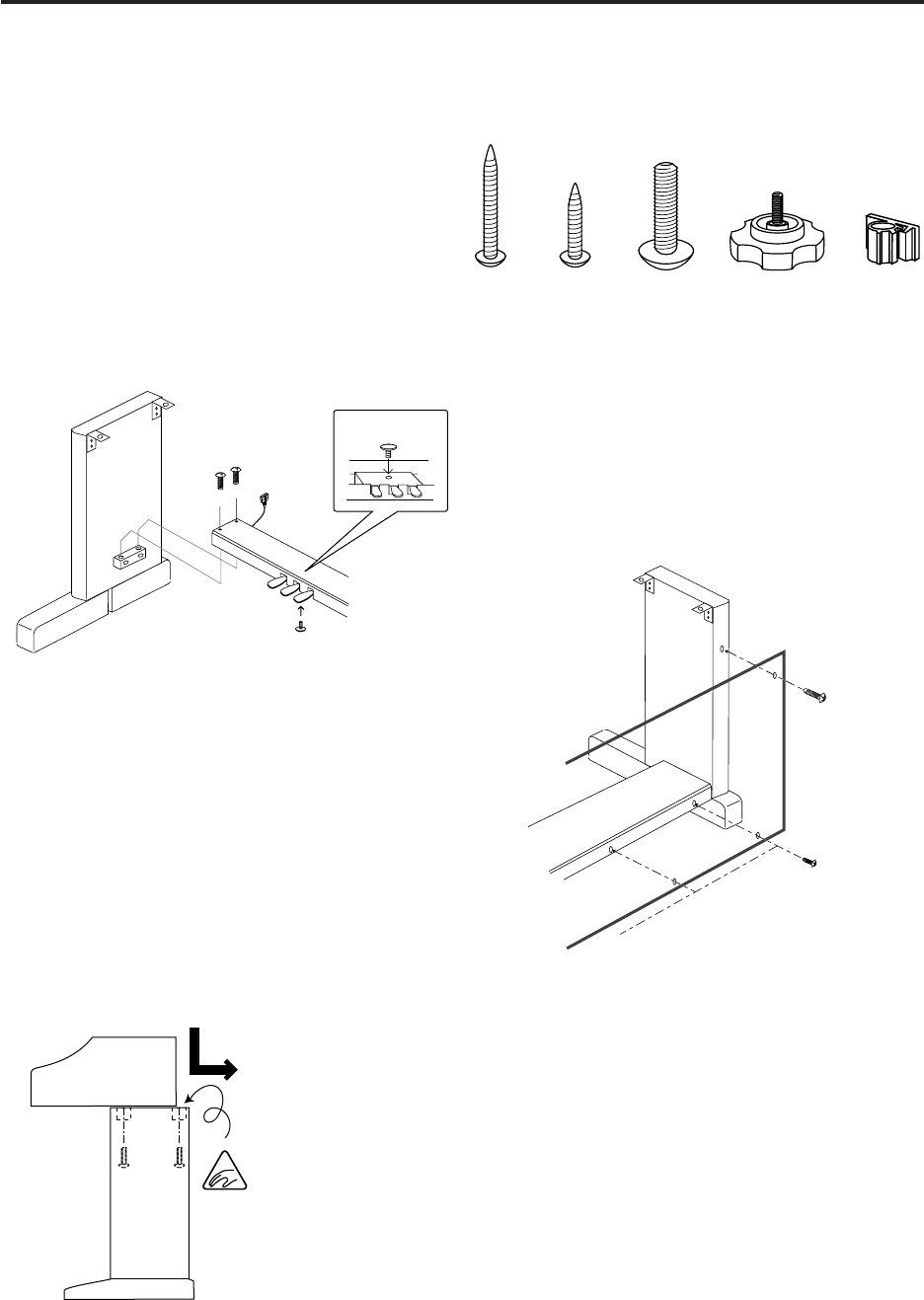

ASSEMBLING THE STAND
Be sure that all parts are included before starting to assemble your unit.
PARTS PROVIDED
Side Panel (A). . . . . . . . 2 pcs.
Back Panel (B) . . . . . . . 1 pc.
Pedal Board (C) . . . . . . 1 pc.
Screw (D) . . . . . . . . . . . 2 pcs.
Screw (E) . . . . . . . . . . . 4 pcs.
Bolt (F) . . . . . . . . . . . . . 8 pcs.
Adjuster (G) . . . . . . . . . 1 pc.
Cord Clamp (H) . . . . . . 1 pc.
1. Insert the Adjuster (G) on the bottom of
Pedal Board (C). Fasten Side Panel (A) and
Pedal Board (C) with four bolts (F).
2. Fasten Side Panel (A) and Back Panel (B)
with two screws (D). Then fix Back Panel
(B) to Pedal Board (C) with four screws (E).
(E)
(F)
(G)
(C)
(F)
Hand or Finger
catching hazard
(A)
Bottom View
(D)
(F)
(G)
(H)
