AUDIO CONNECTION
Connect the unit to your TV or home stereo system using the White and Red connections on the
supplied patch cord. Plug the white end of the patch cord into the white AUDIO OUT jack on the
unit. Plug the red end of the patch cord into the red AUDIO OUT jack on unit. Now connect the
other end of the cable’s white (left channel) and red (right channel) plugs to your TV or home
stereo system’s ‘AUDIO IN’ or ‘AUX IN’ jacks.
MAKING THE CONNECTIONS
FOR CONNECTING AN AUDIO COMPONENT FOR OUTPUT
To connect an audio component (such as a power amplifier or PA system amplifier) so you can
hear the system’s music & vocal through it, plug the audio component into the AUDIO OUT jacks.

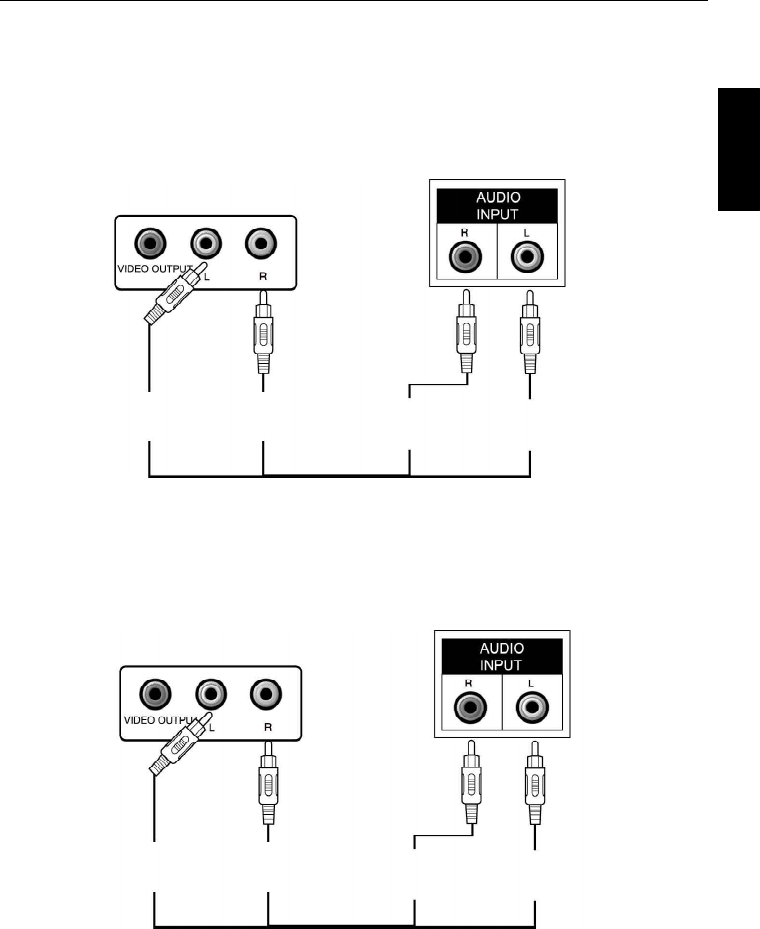

REAR VIEW OF
KARAOKE SYSTEM
REAR VIEW OF TV
AUDIO OUTPUT
L
(White Jack)
AUDIO OUTPUT
R
(Red Jack)
AUDIO INPUT
R
(Red Jack)
AUDIO INPUT
L
(White Jack)
REAR VIEW OF
KARAOKE SYSTEM
ANOTHER AUDIO
COMPONENT
AUDIO OUTPUT
L
(White Jack)
AUDIO OUTPUT
R
(Red Jack)
AUDIO INPUT
R
(Red Jack)
AUDIO INPUT
L
(White Jack)
CONNECTING TO YOUR HEADPHONE
A headphone jack is provided for using headphones instead of the built-in speakers.
(Headphones are sold separately.)
WARNING: Excessive sound pressure from headphones can cause hearing loss.
