Connect External Power Supply (Optional) 23
E-EQ-MX6OGWW-E-ARC MX6 User’s Guide
Connect External Power Supply (Optional)
The MX6 connector is located at the base of the MX6. The main battery recharges when the MX6
is connected to an external power source and the Main Batteries are Charging icon is displayed in
the toolbar.

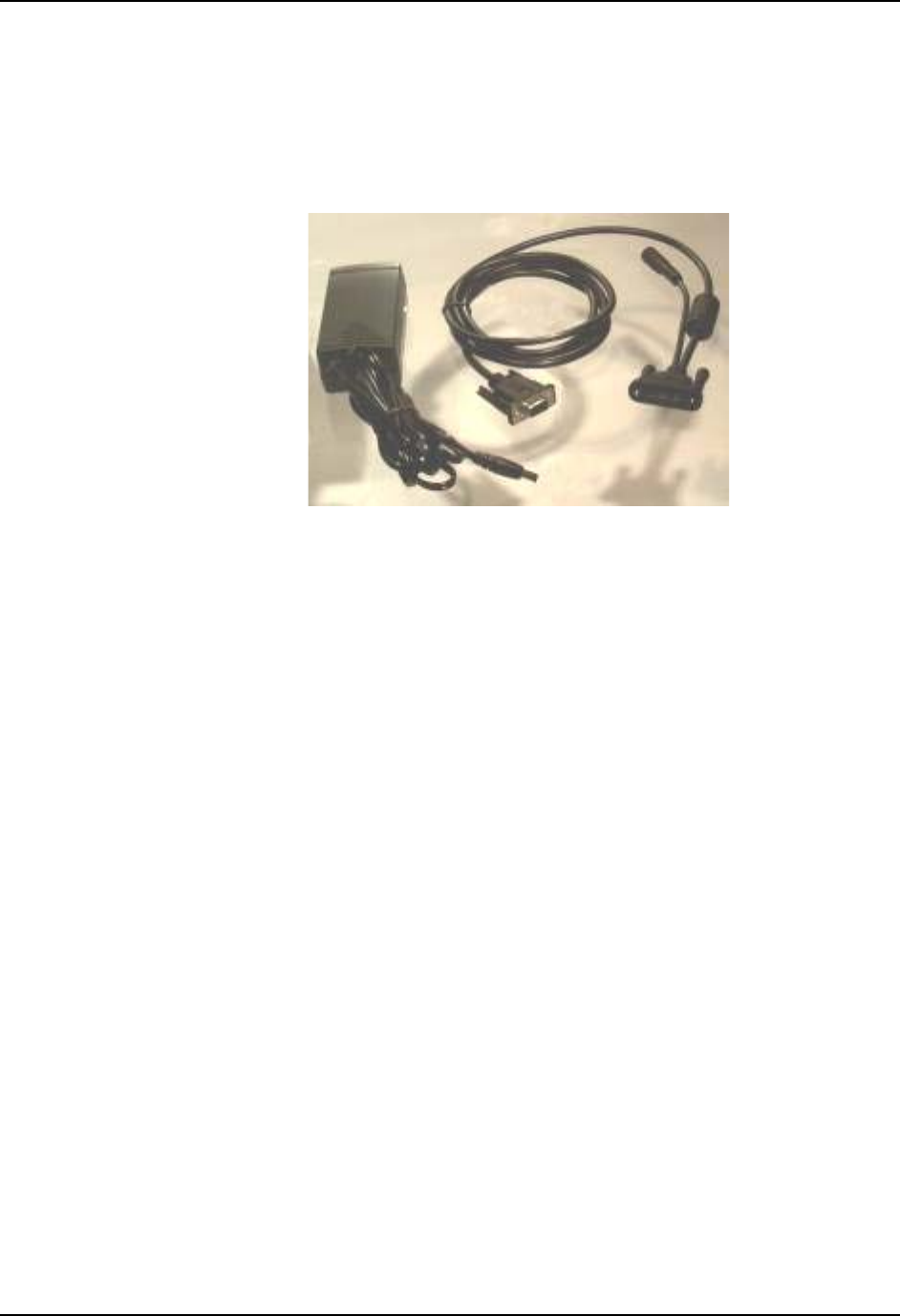

Figure 20 AC/DC 12V External Power Supply Kit
Push the 17-pin power cable connector into the MX6 serial port. When the connector is seated
over the pins, twist the cable fasteners to the right to secure the cable to the MX6. Twist to the left
to loosen and remove the cable. Insert the barrel end of the AC/DC Power adapter into the short
cable end on the power cord connected to the MX6.
