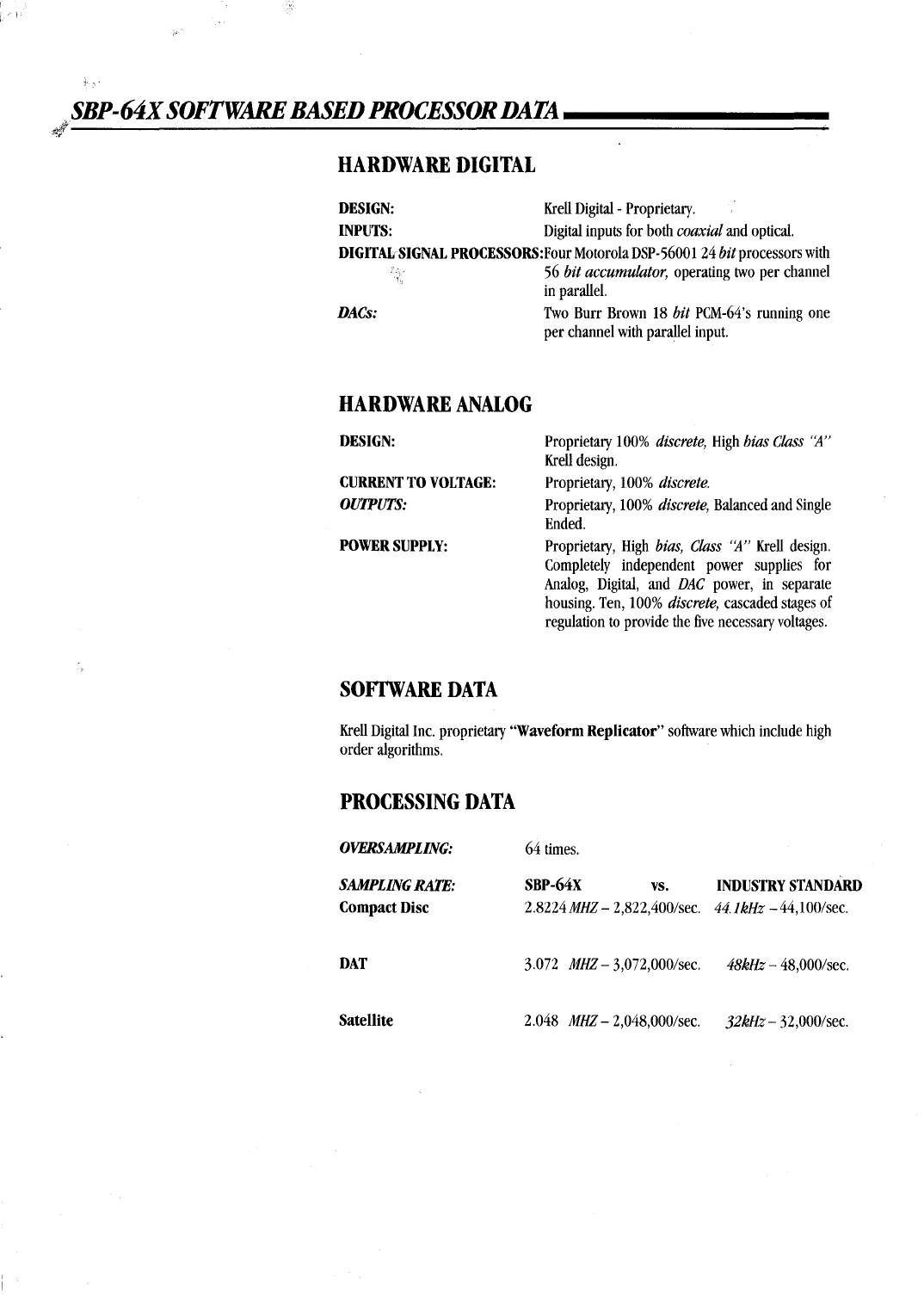

SBP-64X SOFTWARE BASED PROCESSOR DATA
HARDWARE DIGITAL
DESIGN: Krell Digital - Proprietary.
INPUTS: Digital inputs for both coaxial and optical.
DIGITAL SIGNAL PROCESSORS:Four Motorola DSP-56001 24 bit processors with
¯ i~.,
,
56 bit accumulator, operating two per channel
in parallel.
DACs:
Two Burr Brown 18 bit PCM-64’s running one
per channel with parallel input.
HARDWARE ANALOG
DESIGN:
CURRENT TO VOLTAGE:
OUTPUTS:
POWER SUPPLY:
Proprietary 100% discrete, High bias Class "A"
Krell design.
Proprietary, 100% discrete.
Proprietary, 100% discrete, Balanced and Single
Ended.
Proprietary, High bias, Class "A" Krell design.
Completely independent power supplies for
Analog, Digital, and DAC power, in separate
housing. Ten, 100% discrete, cascaded stages of
regulation to provide the five necessary voltages.
SOF’INVARE DATA
Krell Digital Inc. proprietary "Waveform Replicator" software which include high
order algorithms.
PROCESSING DATA
O VERSAMPL ING :
SAMPLING RATE:
Compact Disc
64 times.
SBP-64X vs.
2.8224 MHZ- 2,822,400/sec.
INDUSTRY STANDARD
44.1kHz - 44,100/sec.
DAT
3.072 MHZ- 3,072,000/sec. 48kHz- 48,000/sec.
Satellite 2.048 MHZ- 2,048,000/sec. 32kHz- 32,000/sec.
