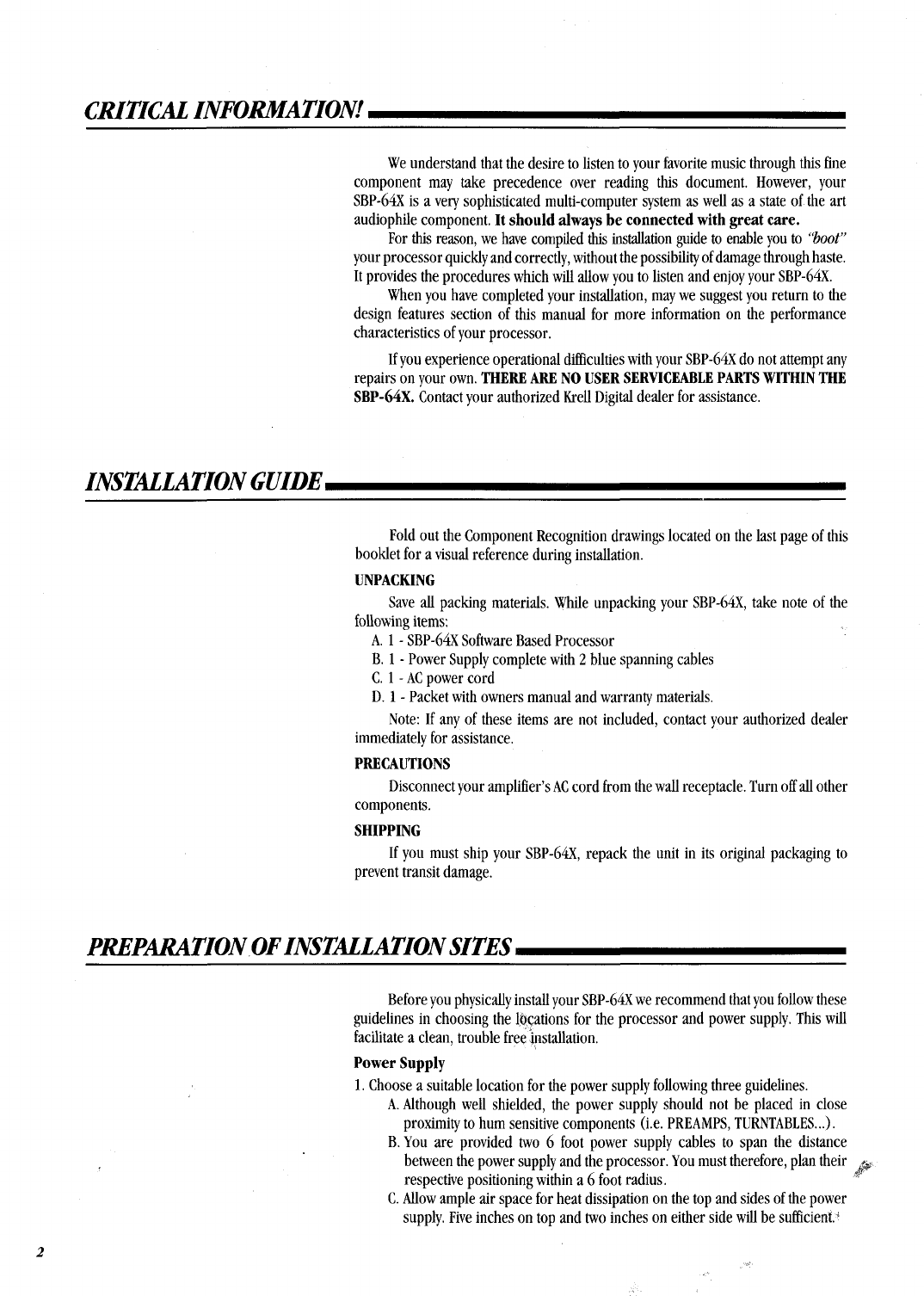

CRITICAL INFORMATION!
We understand that the desire to listen to your favorite music through this fine
component may take precedence over reading this document. However, your
SBP-64X is a very sophisticated multi-computer system as well as a state of the art
audiophile component. It should always be connected with great care.
For this reason, we have compiled this installation guide to enable you to "boot"
your processor quickly and correctly, without the possibility of damage through haste.
It provides the procedures which will allow you to listen and enjoy your SBP-64X.
When you have completed your installation, may we suggest you return to the
design features section of this manual for more information on the performance
characteristics of your processor.
If you experience operational difficulties with your SBP-64X do not attempt any
repairs on your own. THERE ARE NO USER SERVICEABLE PARTS WITHIN THE
SBP-64X. Contact your authorized Krell Digital dealer for assistance.
INSTALLATION GUIDE
Fold out the Component Recognition drawings located on the last page of this
booklet for a visual reference during installation.
UNPACKING
Save all packing materials. While unpacking your SBP-64X, take note of the
following items: ~:
A. 1 - SBP-64X Software Based Processor
B. 1 - Power Supply complete with 2 blue spanning cables
C. 1 - AC power cord
D. 1 - Packet with owners manual and warranty materials.
Note: If any of these items are not included, contact your authorized dealer
immediately for assistance.
PRECAUTIONS
Disconnect your amplifier’s AC cord from the wall receptacle. Turn off all other
components.
SHIPPING
If you must ship your SBP-64X, repack the unit in its original packaging to
prevent transit damage.
P PARATION OF INSTALLATION SITES
2
Before you physically install your SBP-64X we recommend that you follow these
guidelines in choosing the locations for the processor and power supply. This will
facilitate a clean trouble fr¢6".installation.
Power Supply
1. Choose a suitable location for the power supply following three guidelines.
A.
Although well shielded, the power supply should not be placed in close
proximity to hum sensitive components (i.e. PREAMPS, TURNTABLES...).
B.You are provided two 6 foot power supply cables to span the distance
between the power supply and the processor. You must therefore, plan their
respective positioning within a 6 foot radius.
C.Allow ample air space for heat dissipation on the top and sides of the power
supply. Five inches on top and two inches on either side will be sufficienI:*
