MULTS AND “Y”s
A mult or “Y” connector allows you to route
one output to two or more inputs by simply
providing parallel wiring connections. You can
make “Y”s and mults for the outputs of both
unbalanced and balanced circuits.
Remember: Only mult
or “Y” an output into sev-
eral inputs. If you need
to combine several out-
puts into one input, you
must use a mixer, not a mult or a “Y.”
TIP
(SEND)
RING (IN)
TIP (OUT)
RING
(RETURN)
TO MIXER
CHANNEL INSERT
RING (RETURN)
TIP (SEND)
TO
PROCESSOR
INPUT
FROM
PROCESSOR
OUTPUT

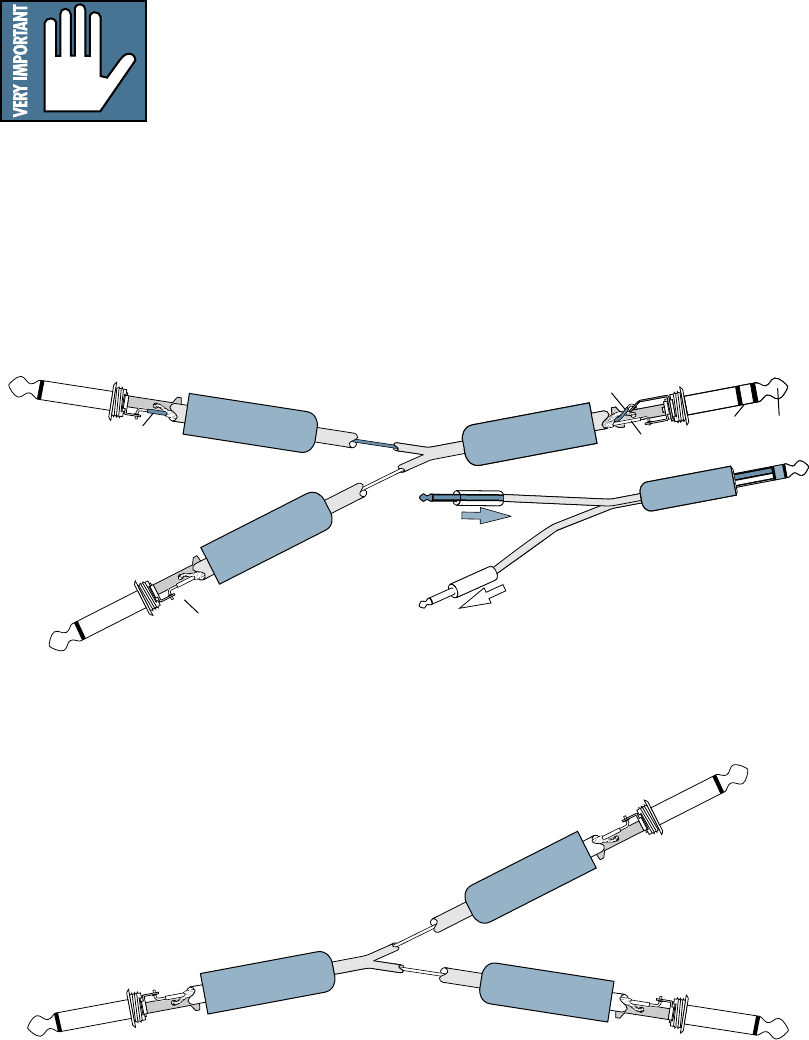

Y-cord insert cable
Y-cord splitter cable
