Attaching the GK-3 to the Guitar
■ Attaching the Pickup with the Holder
1. Attach the divided pickup to the holder.

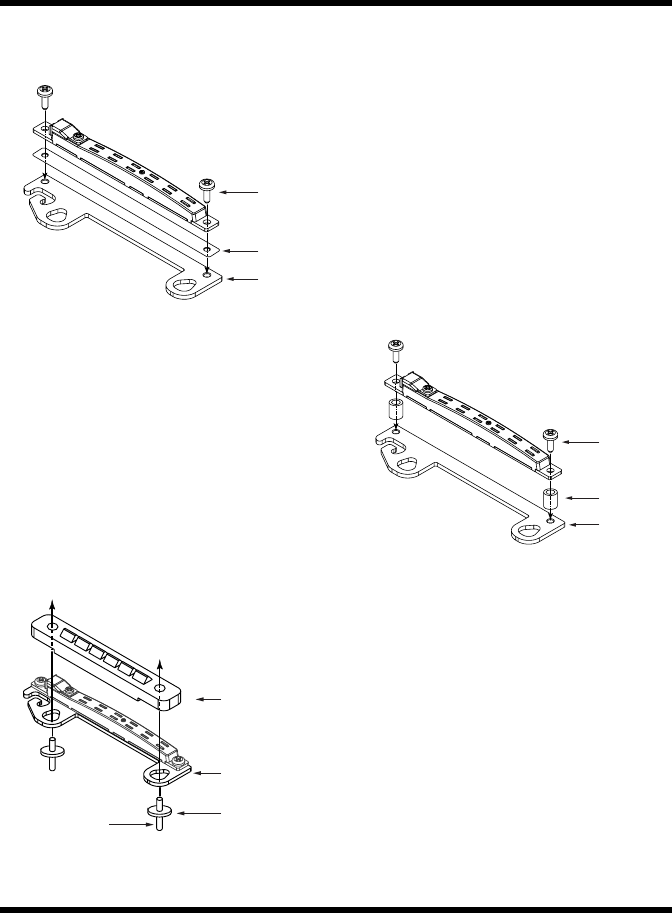

fig.1105
* Tighten the screws until the pickup lightly presses
down against the rubber sheet.
2. Remove the strings and the bridge
from the guitar.
3. Lower the two bridge height
adjustment screws of the guitar
approximately 2 mm (0.08”).
* If the bridge is of the type whereby the posts
themselves are adjusted, then lower the post height
by 2 mm (0.08”).
4. Place the holder on the posts, then
cover it with the bridge.
fig.1105 (Attachment with the Holders)
5. Restring and tune the guitar.
* Tune the strings with the divided pickup adjusted to
the optimal position (where all strings ride over their
respective yokes).
6. Adjust the height of the pickup.
* The pickup height should be adjusted so that the
distance between the pickup and the strings is about
1.0 mm (0.04") when the highest frets on the first
and sixth strings are fingered. Check the height
using the supplied clearance gauge (1.0 mm).
* If the pickup ends up being too low, use two rubber
sheets layered together.
But the pickup still sits too low even after layering
the two rubber sheets, then use the rubber tubes.
fig.1105-2e
* Afterwards, when connecting to GK devices, you
will need to adjust the pickup sensitivity again.
However, you may find that the sensitivity level on
the GK device is too high. In such instances, you
may be able to correct the problem by widening the
clearance between the strings and the pickup, so try
lowering the Pickup height slightly to see if this
approach is effective.
Pickup
Holder
Rubber
Sheet
Screw
3x8 mm
Pickup
Holder
Post
Bridge Height
Adjustment
Screw of
the Guitar
Bridge
Pickup
Holder
Rubber Tube
Screw
3 x 8 mm
