CONNECTING A VIDEO COMPONENT FOR INPUT
Please follow the steps below to display CDG lyrics on the Singing Machine’s monitor from
another video source:
AUDIO CONNECTION
Connect the unit to your TV or home stereo system using the White and Red connections on the
supplied RCA cords. Plug the white end of the patch cord into the white AUX OUT jack on the
unit. Plug the red end of the RCA cord into the red AUX OUT jack on unit. Now connect the other
end of the cable’s white (left channel) and red (right channel) plugs to your TV or home stereo
system’s ‘AUDIO IN’ or ‘AUX IN’ jacks.
(1) Locate the multicolored patch cords.
(2) Connect video cable (yellow) to the video in jack on the side of the Singing Machine.
(3) Connect the other end of the video cable (yellow) to the Video Output on another video
source such as a VCR.
(4) Set the Function Selector to AUX mode and the Monitor Selector to AUX.

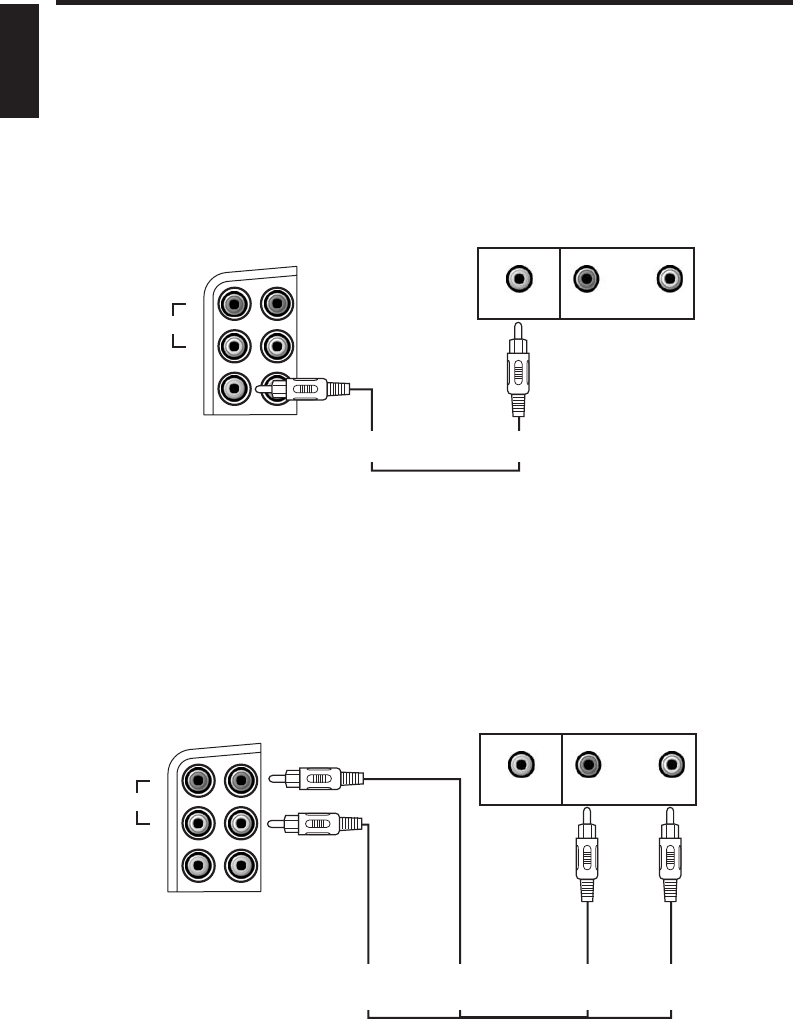

MAKING THE CONNECTIONS
E13
SIDE VIEW OF
SINGING MACHINE
REAR VIEW OF VCR
R
L
VIDEO OUT
AUDIO OUT
VIDEO OUTPUT
(YELLOW JACK)
VIDEO INPUT
(YELLOW JACK)
IN
OUT
VIDEO
AUX
R
L
SIDE VIEW OF
SINGING MACHINE
REAR VIEW OF TV
R
L
VIDEO IN
AUDIO IN
AUX OUTPUT
R
(RED JACK)
AUDIO INPUT
L
(WHITE JACK)
AUDIO INPUT
R
(RED JACK)
AUX OUTPUT
L
(WHITE JACK)
IN
OUT
VIDEO
AUX
R
L
ENGLISH
