Connectors and controls
F INPUT 1/2 jacks
The GO44 System features two high-quality analog mono inputs. The connections have been
designed for balanced/unbalanced phone 1/4" jacks. The input levels for these jacks can be
selected from three different gain settings, HIGH, MID, and LOW. Refer to page 19 for details
on how to make these settings.
G OUTPUT 1/2 jacks
The connections have been designed for balanced/unbalanced phone 1/4" jacks for main out-
put. You can connect mixers, powered speakers, or amplifiers. The analog outputs operate
with instrument-compatible levels of 2.0 Vrms.

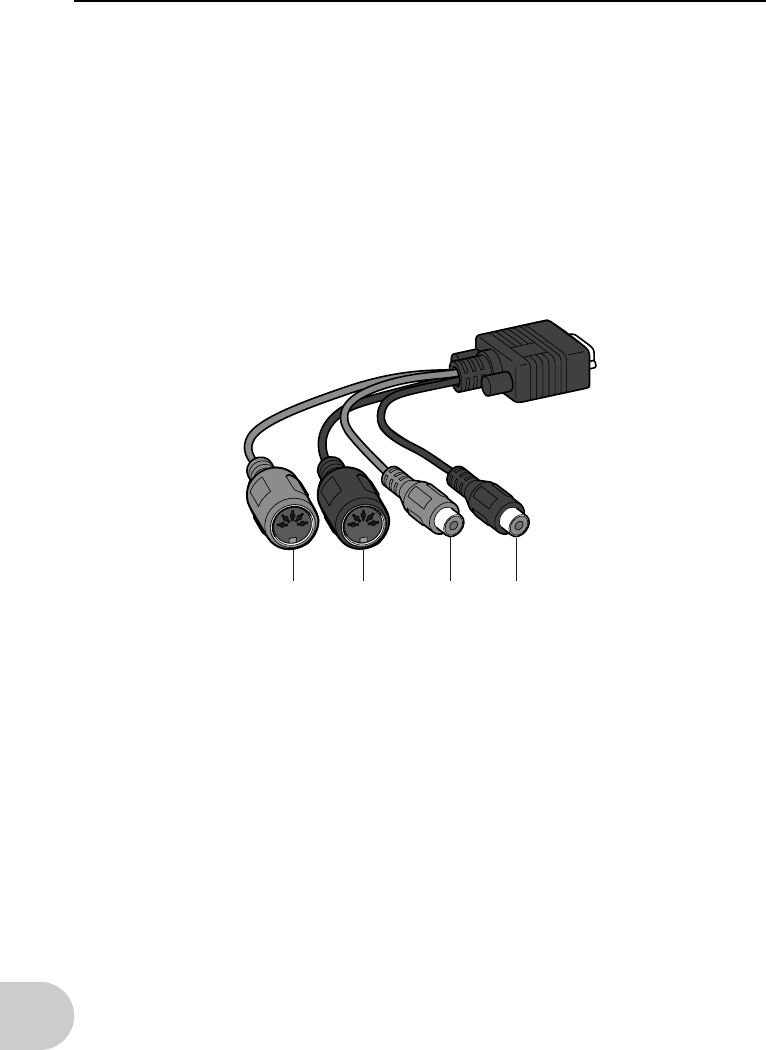

I/O cable
H MIDI IN jack
Connects MIDI devices such as MIDI keyboards and DAW controllers. For connecting MIDI
devices, connect the MIDI OUT terminal of the MIDI device to this jack using a MIDI cable.
I MIDI OUT jack
Connects to MIDI devices such as synthesizers and tone generators. For connecting MIDI
devices, connect the MIDI IN terminal of the MIDI device to this jack using a MIDI cable. This
can also be used as a MIDI Thru terminal, for MIDI sequence software that allows routing of
incoming MIDI data through the OUT jack, using a Thru (or MIDI Echo) function.
J DIGITAL IN jack
This coaxial type digital audio jack is for the digital input of audio signals. The interface can
receive sample rates of up to 24-bit/96 kHz. The input signal can be adjusted in the Digital
Mixer of the GO44 Control Panel. (See page 19.)
8 9 J K
