GO44 Control Panel

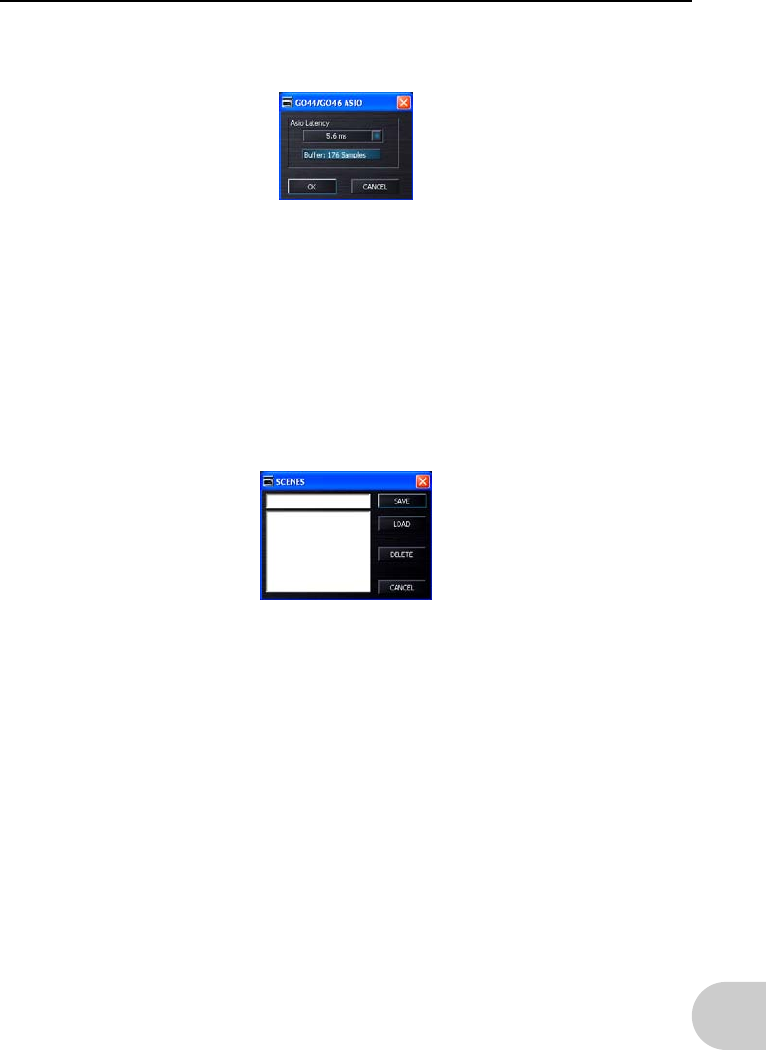

The ASIO control panel (Windows only)
Selects a latency value (delay in playing the audio signals) when using the ASIO driver. To open
the ASIO panel, click the [ASIO] button in the SETTINGS column of the MAIN display.
If the value is too low (and the sample rate too high), this will negatively affect the performance
of your overall system, introducing noise and dropouts. A more powerful computer will support a
lower latency setting. With a fast system, you should achieve values of less than 5ms at 96kHz. If
problems occur, increase the latency as needed.
Further options are generally available on the relevant panels of ASIO applications such as
Cubase, etc.
The SCENES panel
Saves/calls up scenes. A scene is a file in which the Control Panel settings are saved (except
settings in the MASTER CLOCK column; page 20). Save the scene and call up the file, and the
settings can be reloaded whenever necessary. To open the SCENES panel in Windows, click the
[SCENES] button in the SETTINGS column of the MAIN display; on the Macintosh, select [File] →
[SCENES] from the GO44 menu.
To save a scene, input a name for the scene in the box located to the left of the [SAVE] button
and click the [SAVE] button. To load or delete a saved scene, select the desired scene name from
the box and click the [LOAD] or [DELETE] button.
