40
Aviom A-16R and A-16CS User Guide
position.
Unbalanced audio devices can be connected to the A-16R Personal
Mixer by using standard guitar-type (or tip-sleeve) cables.

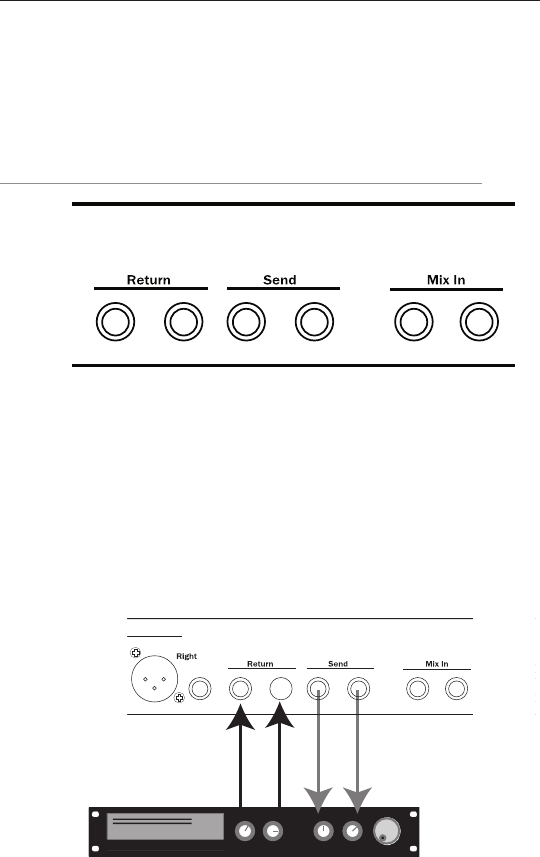

Balanced Inserts
The A-16R is equipped with a stereo insert send/return loop that can
be used just like the insert points found in many mixing consoles.
The audio signal from the A-16R can be sent to the inputs of an audio
processor such as a compressor or limiter. The signal, once processed
by the device, is then returned to the A-16R signal path via the Return
jacks.
The inserts on the A-16R are balanced. You can use either balanced or
unbalanced audio processors with the A-16R.
Audio from the A-16R is sent to the effect device’s inputs.
The processed sound is heard when the signal from the
effect is plugged into the A-16R Insert Return jacks.
The audio signal will not be interrupted when a cable is patched into
the Insert Send jack. You can use the Insert Send jacks as an additional
