Printer Pick Roller Kit - Replacing the Tray Pick Rollers
Ordering and Replacing Consumables 4-37
Consumables
New Printer Pick Roller Kit
1. Unpack the new printer pick roller kit (Product Number: C5633A). See Figure 4-45.

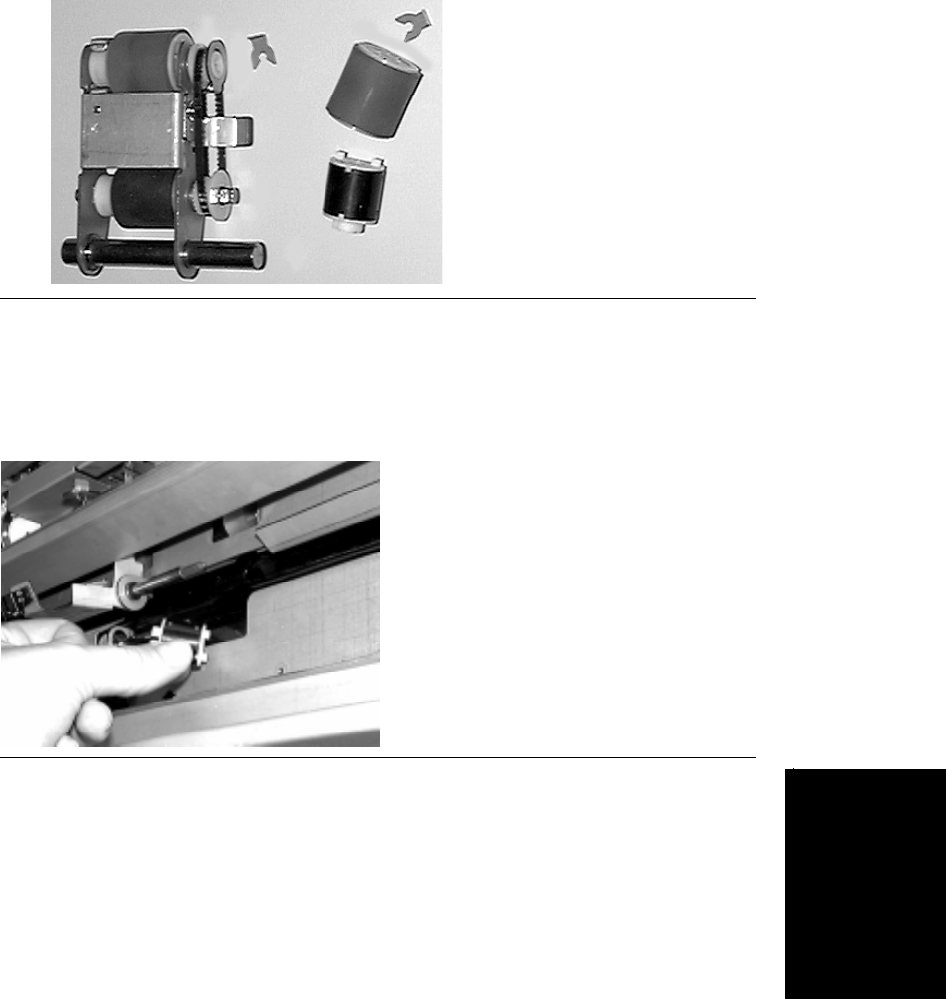

Figure 4-45 Printer Pick Roller Kit
Installing the Printer Lower Pick Rollers
During installation of the lower rollers the torque limiter roller (a smaller lower roller with a
black color outside) must go on the lower shaft first, as shown in Figure 4-46.
Figure 4-46 Installing Torque Limiter
