HCI Pick Roller Kit - Replacing the HCI Pick Rollers
Ordering and Replacing Consumables 4-45
Consumables

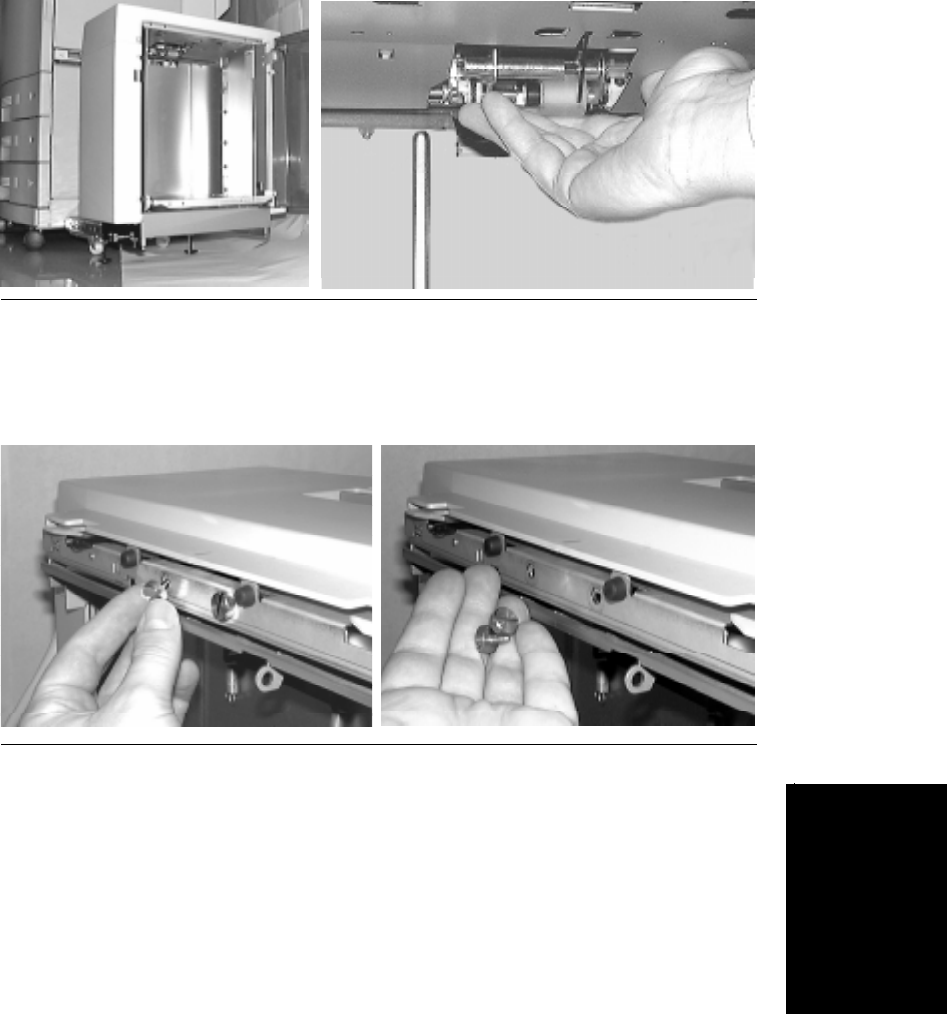

6. Move to the front of the HCI. Locate the upper roller assembly on the top underside of
the HCI, as shown in Figure 4-60. Hold this assembly up with your hand.
Figure 4-60 HCI interior and Upper Roller Assembly location
7. With your other hand, locate the two thumb screws on the back side of the HCI, as
shown in Figure 4-61. Remove these two screws (turn counterclockwise) and set them
aside.
Figure 4-61 Unscrew Thumbscrews and remove
