3. Press the green lever (callout 1) to release the duplex media-feed assembly.

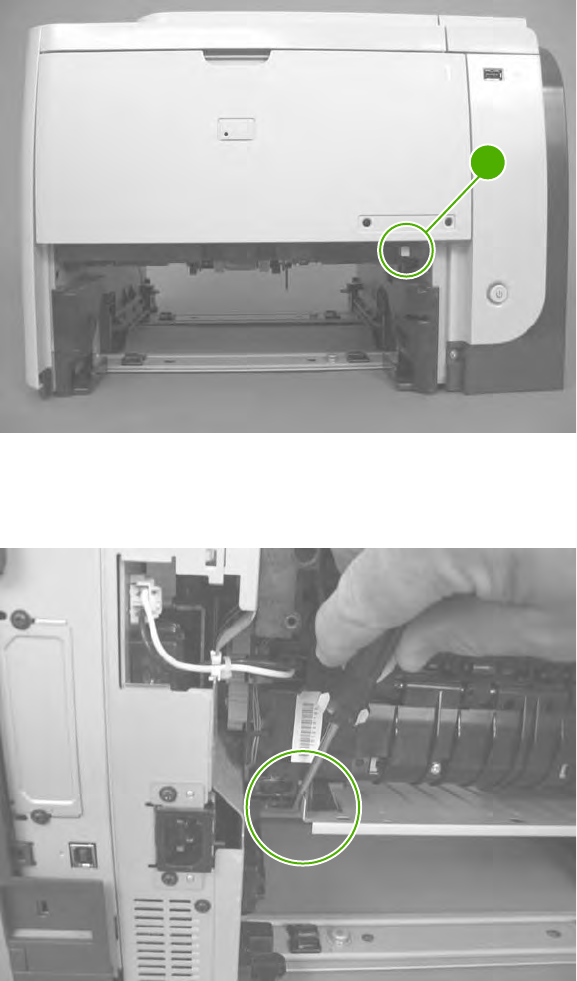

Figure 2-89 Remove the duplex media-feed assembly (2 of 5)
1
4. Use a small flat blade screwdriver to carefully pry the sheet-metal tab on the assembly away from
the hinge pin to release it.
Figure 2-90 Remove the duplex media-feed assembly (3 of 5)
ENWW Removal and replacement procedures 105
