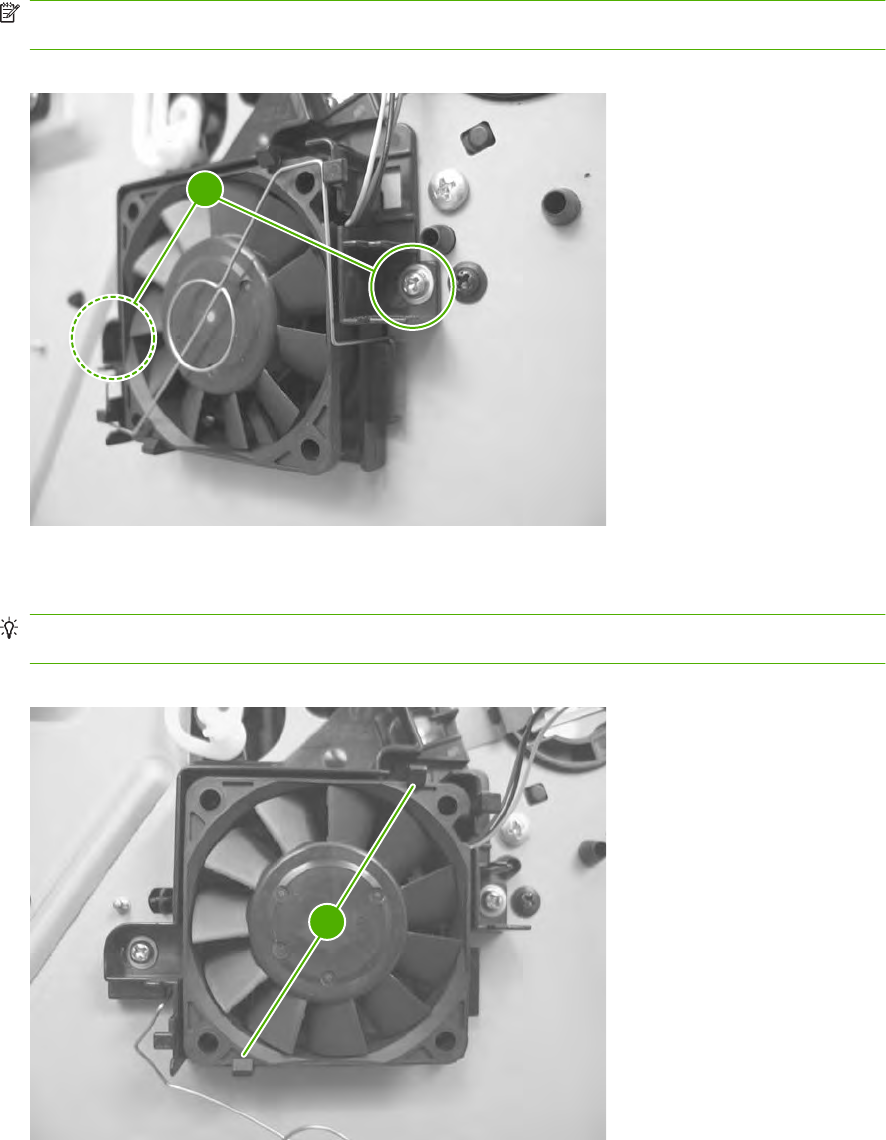

5. To remove the fan and duct: Remove two screws (callout 1), and then carefully remove the fan
and duct.
NOTE: If necessary, release the metal static clip, release two tabs and separate the fan from the
duct.
Figure 2-114 Remove the sub fan and fan duct (4 of 5)
1
6. To remove the fan only: Release the metal static clip, release two tabs (callout 1), and then
remove the sub fan.
Reinstallation tip If you install a replacement sub fan, the air must flow into the product. Arrows
embossed on the fan frame indicate air flow direction.
Figure 2-115 Remove the sub fan and fan duct (5 of 5)
1
