Appendix Radar Tank Gauge
102 Installation and Operations Manual

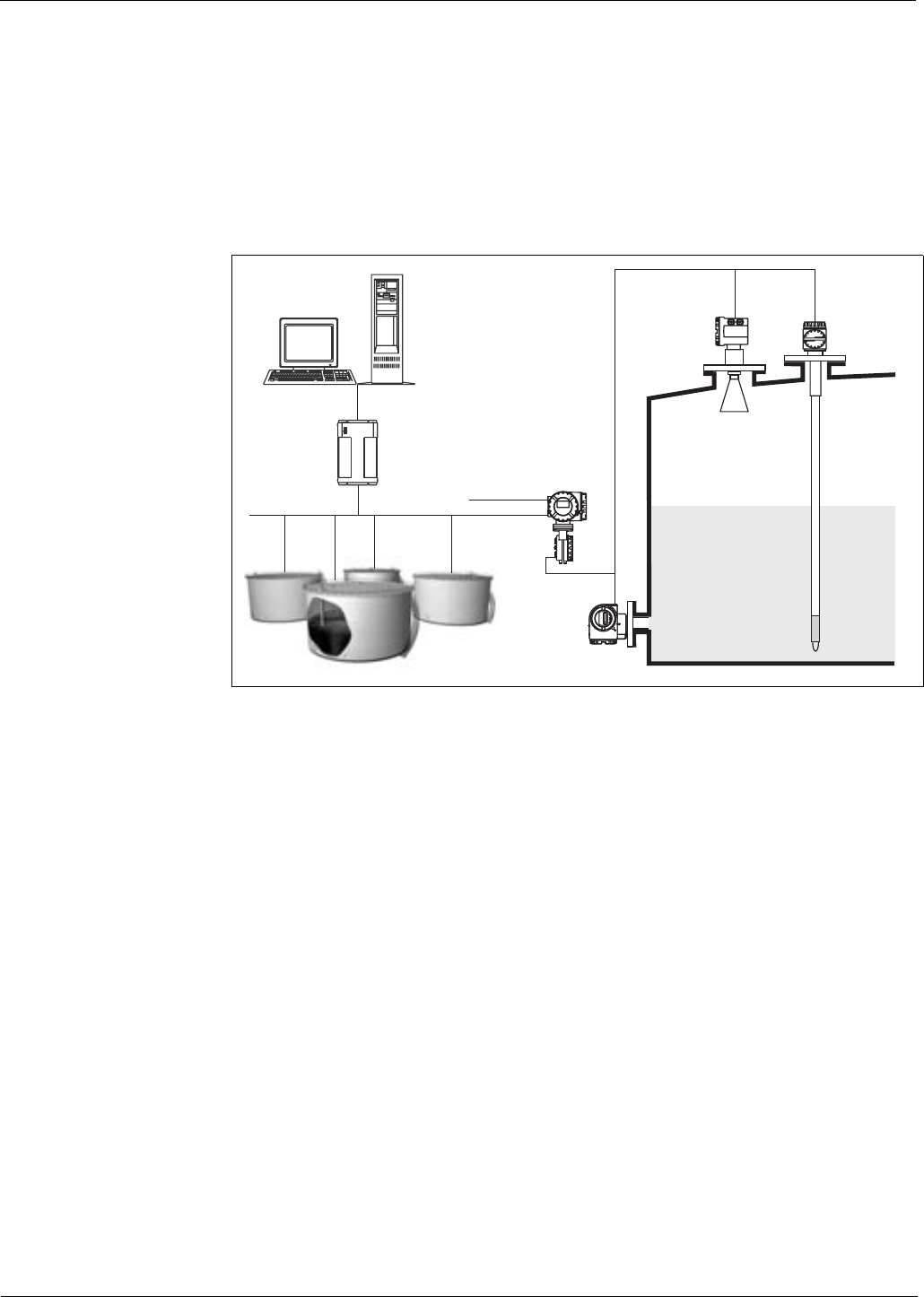

11.4.7 Integrated on tank gauging system
The Varec Tank Side Monitor 4590 provides integrated communications for sites with
multiple tanks, each with one or more sensors on the tank, such as radar, spot or
average temperature, capacitive probe for water detection and/or pressure sensors.
Multiple protocols out of the Tank Side Monitor guarantee connectivity to nearly any of
the existing industry standard tank gauging protocols. Optional connectivity of analog
4...20 mA sensors, digital I/O and analog output simplify full tank sensor integration.
Use of the proven concept of the intrinsically safe HART bus for all on-tank sensors
yields extremely low wiring costs, while at the same time providing maximum safety,
reliability and data availability.
This product may be protected by at least one of the following patents.
• US 5,387,918
i EP 0 535 196
• US 5,689,265
i EP 0 626 063
• US 5,659,321
• US 5,614,911
i EP 0 670 048
• US 5,594,449
i EP 0 676 037
• US 6,047,598
• US 5,880,698
• US 5,926,152
• US 5,969,666
• US 5,948,979
• US 6,054,946
• US 6,087,978
• US 6,014,100
Further patents are pending.
7500 RTG
Tank Side Monitor
Fuels Manager
Software
RTU 8130
(remote
terminal
unit)
Pressure
HART
4 wire
Supply voltage:
16…253VAC
L00-FMR53xxx-14-00-06-en-004
