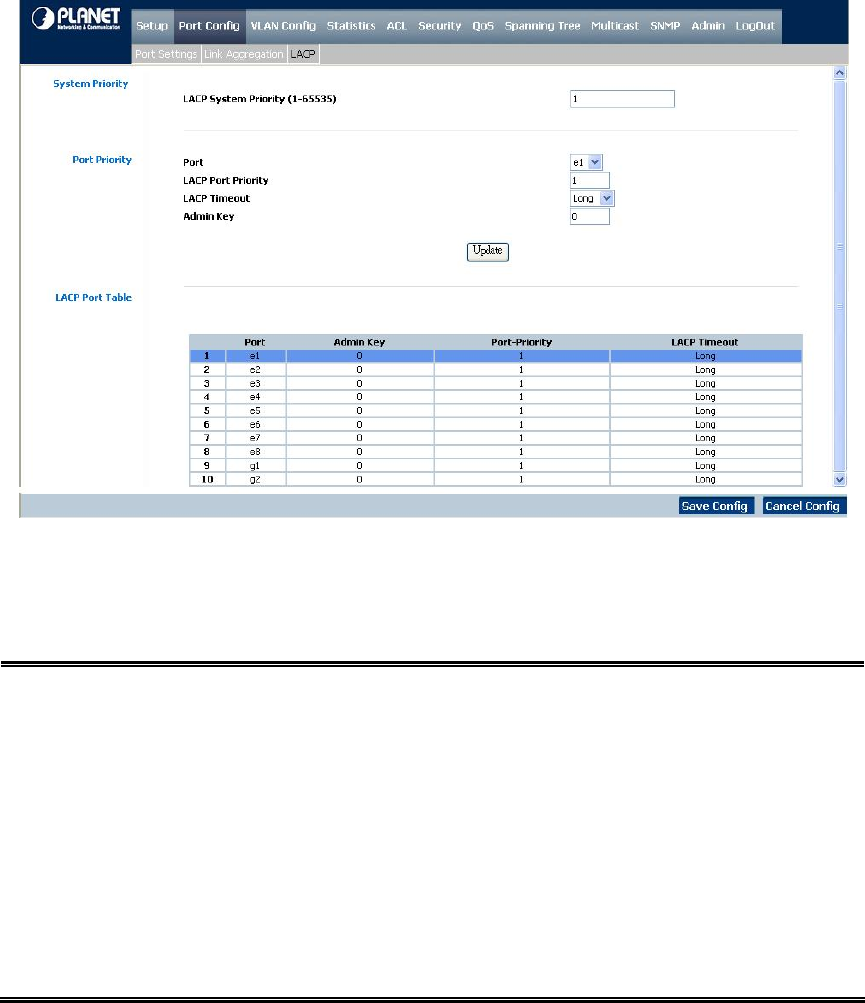

Figure 4-9 LACP configuration screen
The page contains the following fields:
• LACP System
Priority
Indicates the global LACP priority value. The possible range is 1- 65535 and the
default value is 1.
• Port
Set the port number which need to timeout and the priority values are assigned
• LACP Port Priority
Where set the LACP priority value for the port and the field range is 1-65535
• LACP Timeout
Administrative LACP timeout. A short or long timeout value can be selected. Long is
the default
• Admin Key
A channel will only be formed between ports having the same admin key, in other
words, this only applies to ports located on the same switch.
4.4 VLAN Configuration
A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain. It allows you to isolate network traffic so
only members of the VLAN receive traffic from the same VLAN members. Basically, creating a VLAN from a switch is logically
equivalent of reconnecting a group of network devices to another Layer 2 switch. However, all the network devices are still plug
into the same switch physically.
The WGSD-Switch supports 802.1Q (tagged-based) and GVRP Dynamic VLAN setting in web management page. In the default
configuration, VLAN support is “802.1Q”.
IEEE 802.1Q VLANs
