User’s Manual of WGSD-1022/WGSD-8000
- 92 –

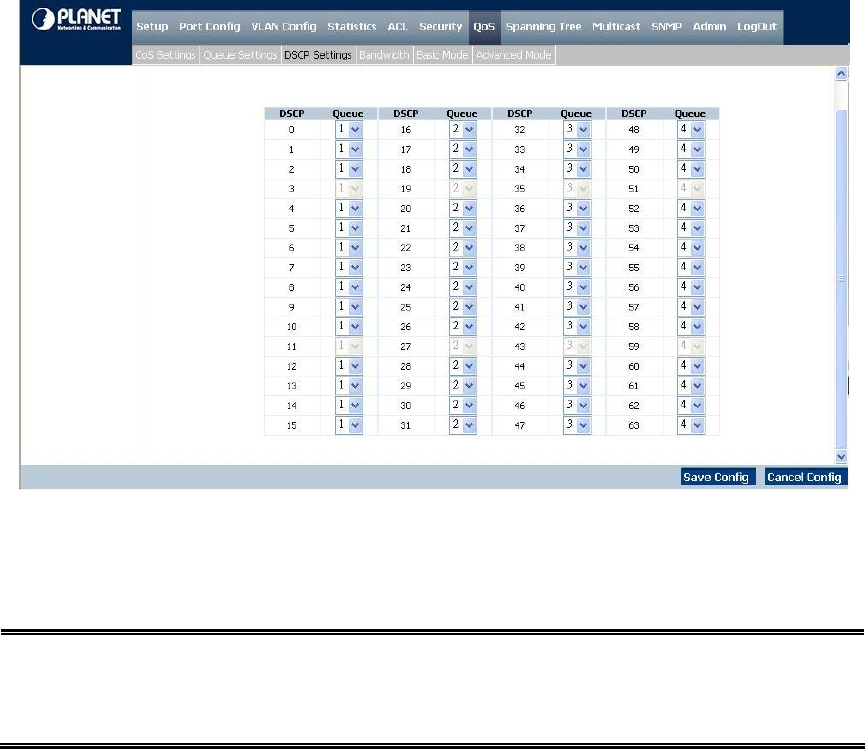

Figure 4-37 DSCP Settings screen
The DSCP Settings screen contains the following fields:
DSCP
Indicates the Differentiated Services Code Point value in the incoming packet.
Queue
Maps the DSCP value to the selected queue
.,.
4.8.4 Bandwidth
The Bandwidth screen (refer to figure 4-38) allows network managers to define the bandwidth settings for a specified egress
interface. Modifying queue scheduling affects the queue settings globally. The Bandwidth screen is not used with the Service
mode, as bandwidth settings are based on services.
