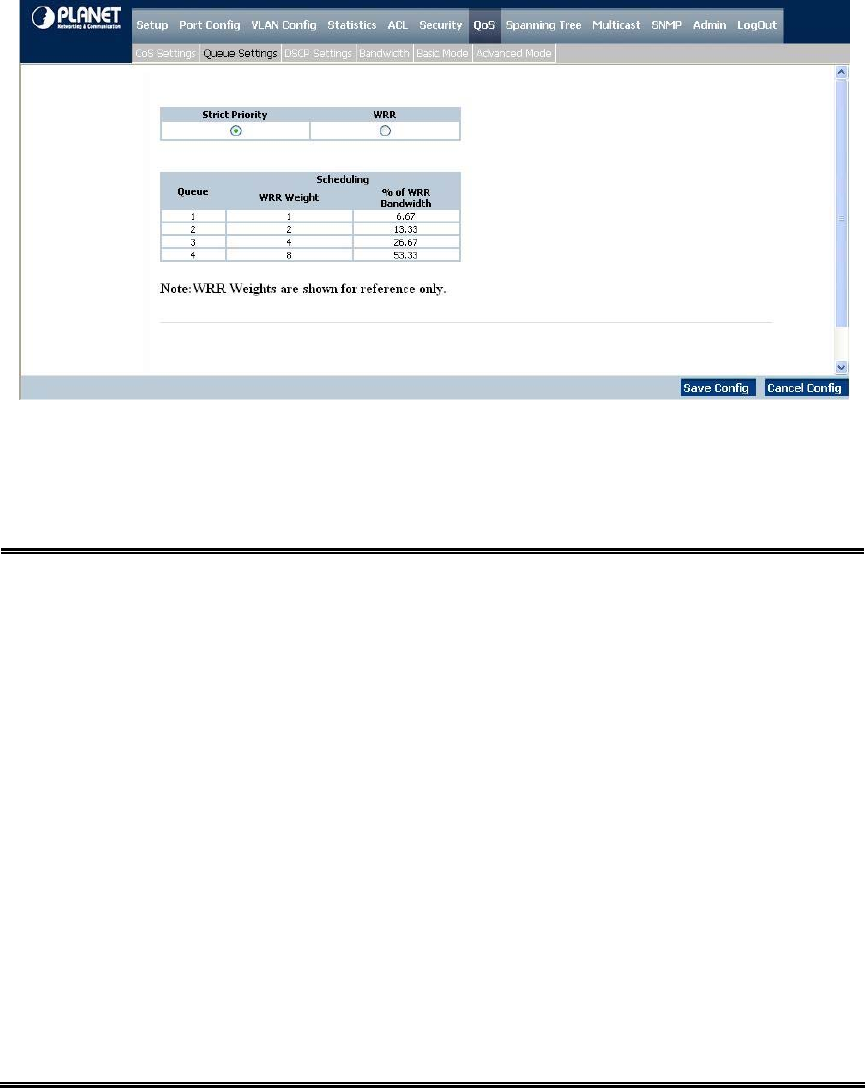

Figure 4-36 Quere Setting screen
The page contains the following fields:
Strict Priority
This indicates that traffic scheduling for the selected queue is based strictly on the
queue priority.
WRR
This indicates that traffic scheduling for the selected queue is based strictly on the
WRR.
Queue
Shows the queue for which the queue settings are displayed.
The possible field range is 1 - 4.
WRR Weight
Which displays the WRR weights to queues
Default Rate 1:2:4:8
% of WRR
Bandwidth
Displays the amount of bandwidth assigned to the queue.
These values are fixed and are not user- defined.
6.67%
13.33%
26.67%
53.33%
4.8.3 DSCP Settings
The DSCP Settings screen (see figure 4-37) enables mapping DSCP values to specific queues
