4.5.6 802.1x Statistic

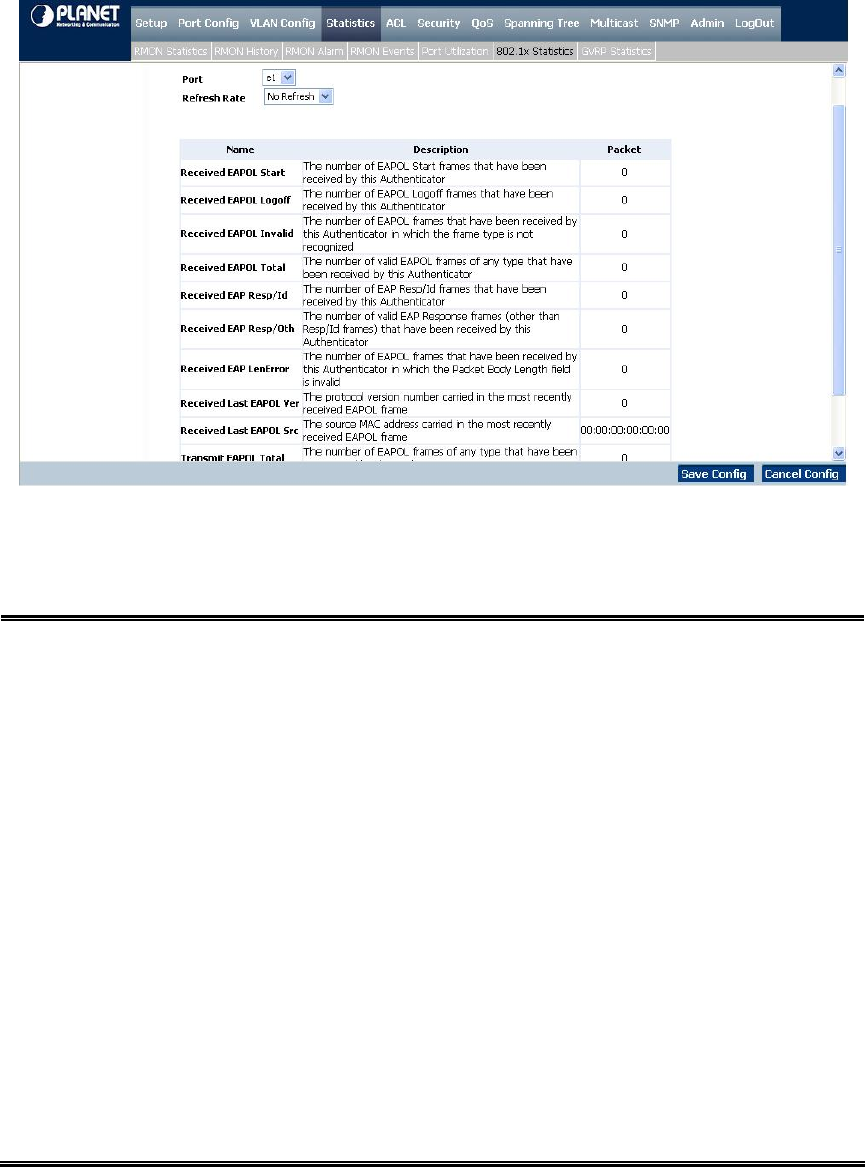

The 802.1X Statistic screen (see figure 4-23) contains information about EAP packets received on a specific port.
Figure 4-23 802.1x Statistics screen
The page includes the following fields:
• Port
Indicates the port, which is polled for statistics
• Refresh Rate
Indicates the amount of time that passes before the EAP statistics are refreshed.
The possible field values are:
• No Refresh, indicates that the EAP statistics are not refreshed.
• 15 Sec, which indicates that the EAP statistics are refreshed every 15
seconds.
• 30 Sec, which indicates that the EAP statistics are refreshed every 30
seconds.
• 60 Sec, which indicates that the EAP statistics are refreshed every 60 seconds
• Name
Displays the measured 802.1x statistic
• Description
Describes the measured 802.1x statistic
• Packet
Displays the amount of packets measured for the particular 802.1x statistic
