31

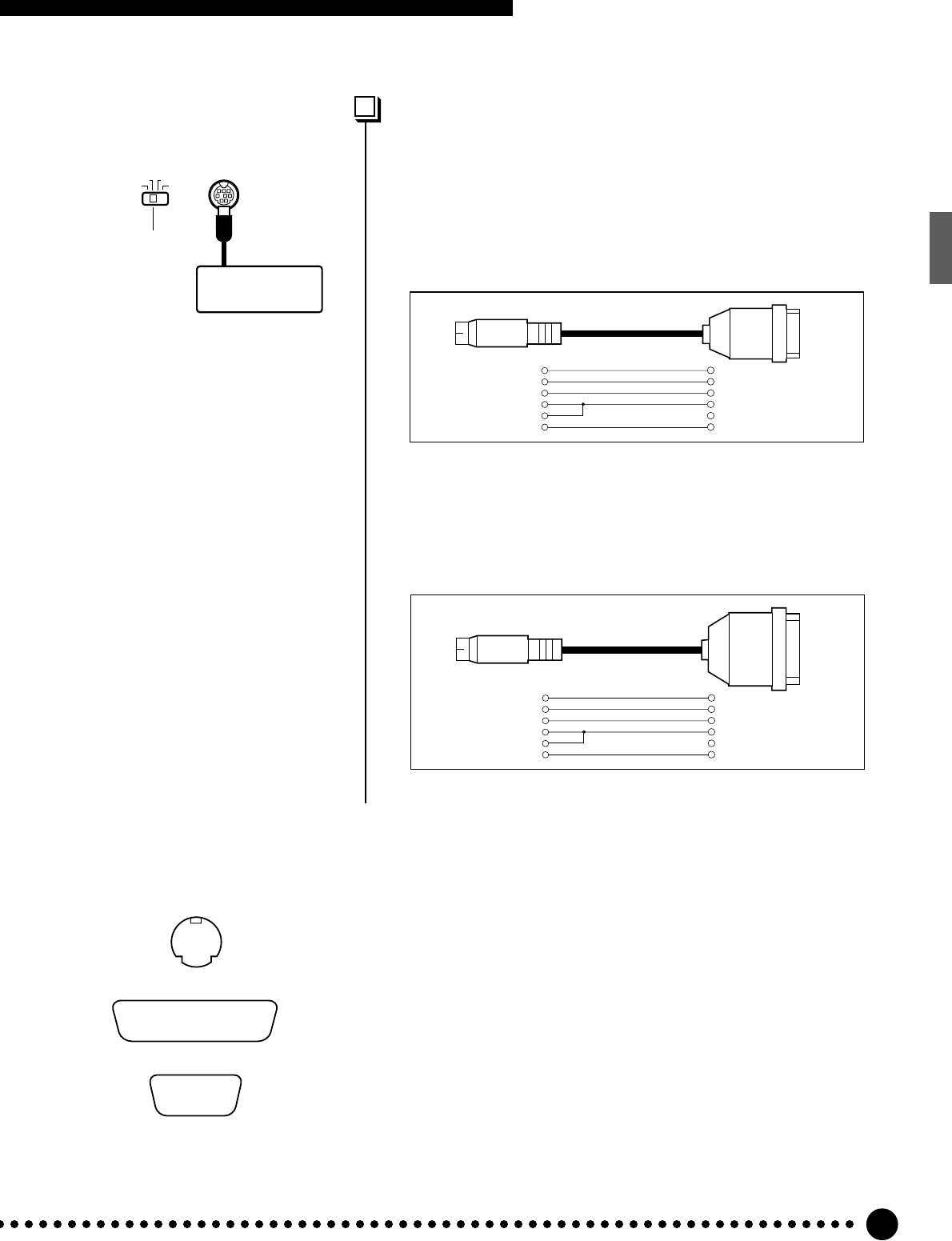

Connecting to an IBM-PC/AT Series Computer ............
Connect the TO HOST connector of the Clavinova to the RS-232C port
on your IBM computer, using a standard 8-pin MINI DIN → 9-pin D-SUB
cross cable. Set the HOST SELECT switch to the “PC-2” position.
Refer to your software owner’s manual for information on any
settings you might have to make on the computer side.
Connecting to a Personal Computer
HOST SELECT TO HOST
PC-2 PC-1
Mac
MIDI
IBM-PC/AT
Series Computer
Set to the “PC-2”
position.
● “PC-2” Cable Connections
8 (CTS)1
7 (RST)2
2 (RxD)3
4 5 (GND)
8
3 (TxD) 5
MINI DIN
8-PIN
D-SUB
9-PIN
• 8-pin mini DIN
→
9-pin D-SUB cable. Use a “PC-1” type cable if your
computer uses a 25-pin serial port.
• Data transfer rate: 38,400 bps.
● “PC-1” Cable Connections
MINI DIN
8-PIN
D-SUB
25-PIN
5 (CTS)1
4 (RTS)2
3 (RxD)3
4 7 (GND)
8
2 (TxD) 5
• 8-pin mini DIN
→
25-pin D-SUB cable.
● Connector Pin Numbers
1
123456789
10 11 12
14 15 16 17
5
9
4
8
3
7
2
6
1
18 19 20 21 22 23 24 25
13
34
678
5
2
MINI DIN 8-PIN
D-SUB 9-PIN
D-SUB 25-PIN
■ Trademarks
• Apple and Macintosh are trademarks of Apple Computer, Inc.
• IBM-PC/AT is a trademark of International Business Machines Corporation.
All other trademarks are the property of their respective holders.
