FIC M295 / M296 Disassembly Instruction
6. Removing the Thermal Module

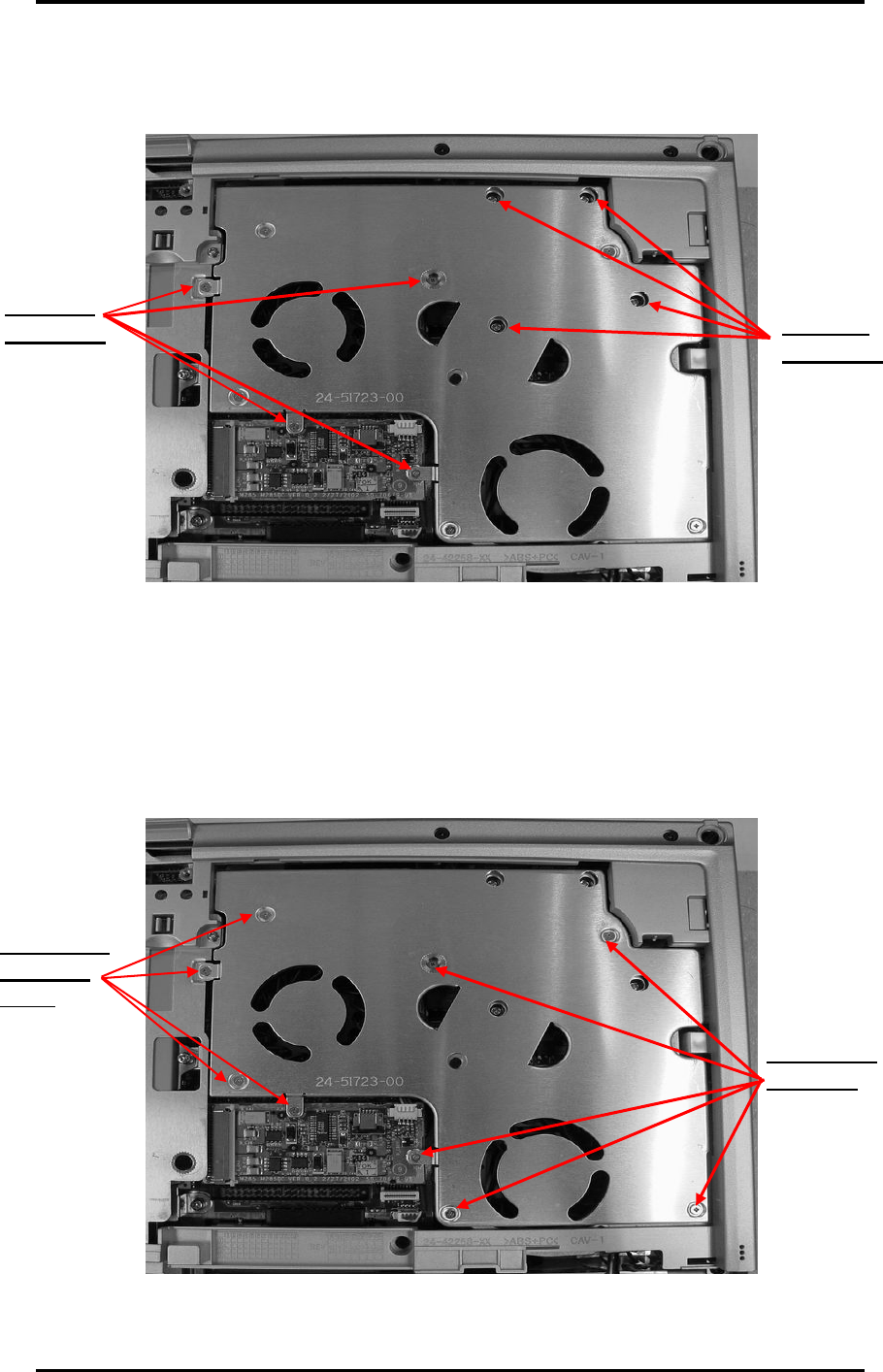

1. Release four screws and remove four screws as shown in the picture below.
Remove
4 Screws
Release
4 Screws
Remove the Thermal Module including the thermal plate and cooling fan
2. Slightly lift it up and be careful about two fan power cables connected to DC-DC board and
main board. After doing that, you can remove the whole thermal module including the
thermal plate and cooling fan. The unnecessary following step 3 and 4 could be skipped.
3. If you want to remove the thermal plate first and then the cooling fan, you need to release
nine screws as shown in the picture below and remove thermal plate by slightly lifting it up.
Screws of
Thermal
Plate
Screws of
Thermal
Plate
Remove the Thermal Plate
