Calibration - SmartPrecision Software
Calibration should be performed only after each of the encoders is aligned properly.
Calibration can be initiated by either the Calibrate button using Smart Signal Software or through the recessed push
button switch in the M3000SiDAA.
To calibrate Channel 1:
Through Software: Select "CALIBRATE SIGNAL on INPUT CHANNEL 1"
Through Hardware: Push the recessed button once.
The power indication for Channel 1 will rapidly blink until the calibration routine is complete.
To calibrate Channel 2:
Through Software: Select "CALIBRATE SIGNAL on INPUT CHANNEL 1"
Through Hardware: Push the recessed button twice quickly (within 3 sec).
The power indication for Channel 2 will rapidly blink until the calibration routine is complete.
WWaarrnniinngg:: CChhaannggiinngg ccoonnffiigguurraattiioonn sseettttiinnggss wwhhiillee iinn cclloosseedd lloooopp ccoonnttrrooll iiss nnoott rreeccoommmmeennddeedd..

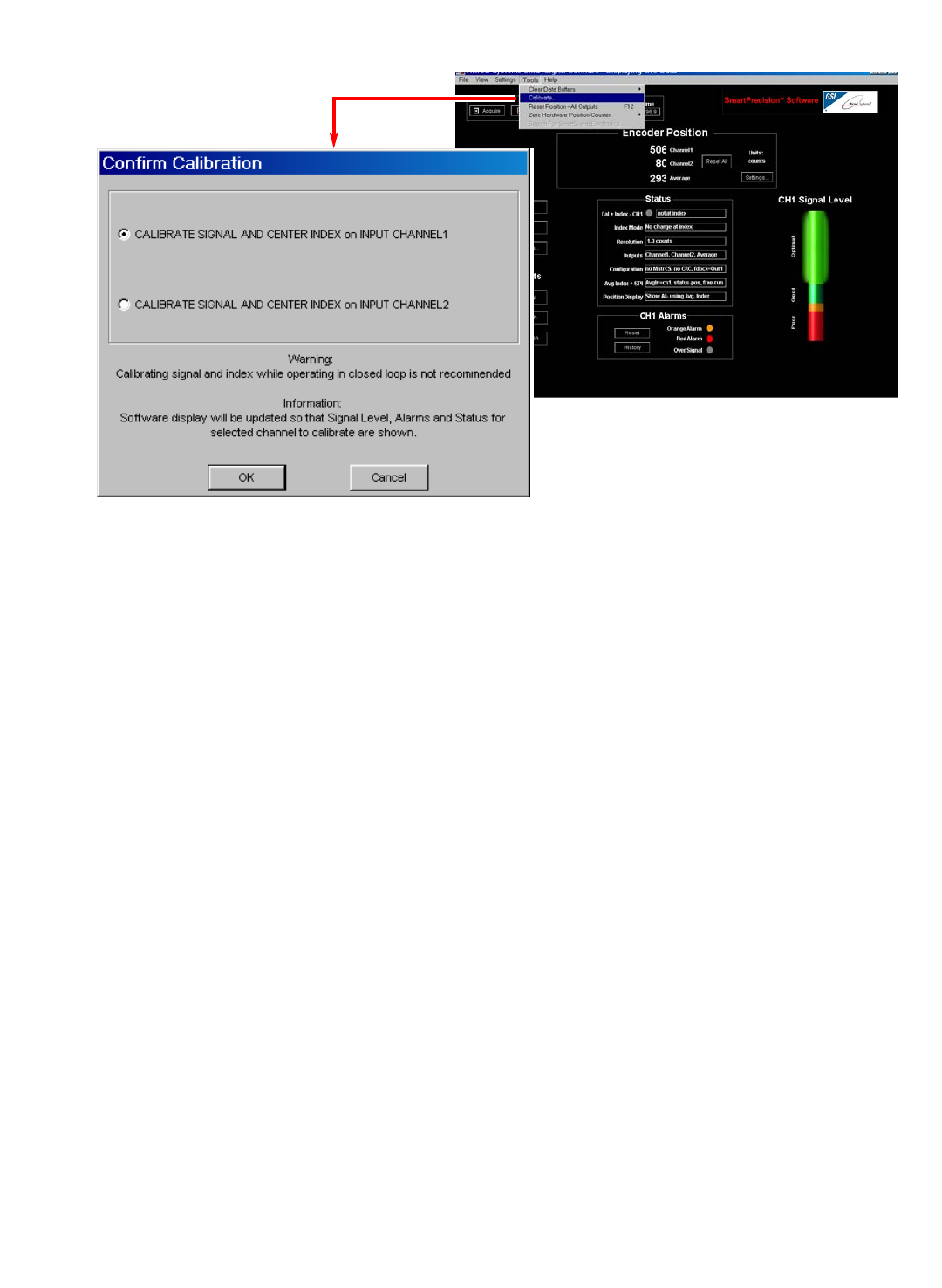

Confirm Calibration screen
