Operating and Electrical Specifications
Maximum Power Supply: 5V+/-5% @ 550mA (including two sensors)
Operating Temperature: 0 to 70 degrees C
Storage Temperature: -30 to 80 degrees C
Humidity: 10 to 90% RH non-condensing
PIN
Function
1
Serial Data Output 1+
2
Serial Data Output 1-
3
Chip Select Input 1+
4
Chip Select Input 1-
5
Serial Clock Input 1+
6
Serial Clock Input 1-
7
Serial Data Output 2+
8
Serial Data Output 2-
9
Chip Select Input 2+
10
Chip Select Input 2-
11
Serial Clock Input 2+
12
Serial Clock Input 2-
13
Serial Data Output 3+
14
Serial Data Output 3-
15
Chip Select Input 3+
16
Chip Select Input 3-
17
Serial Clock Input 3+
18
Serial Clock Input 3-
19
Serial Feedback Clock
Output or Trigger input+
20
Serial Feedback Clock
Output or Trigger input-
21
Do not connect
22
Do not connect
23
Alarm Output
24
5volt power
25
Ground

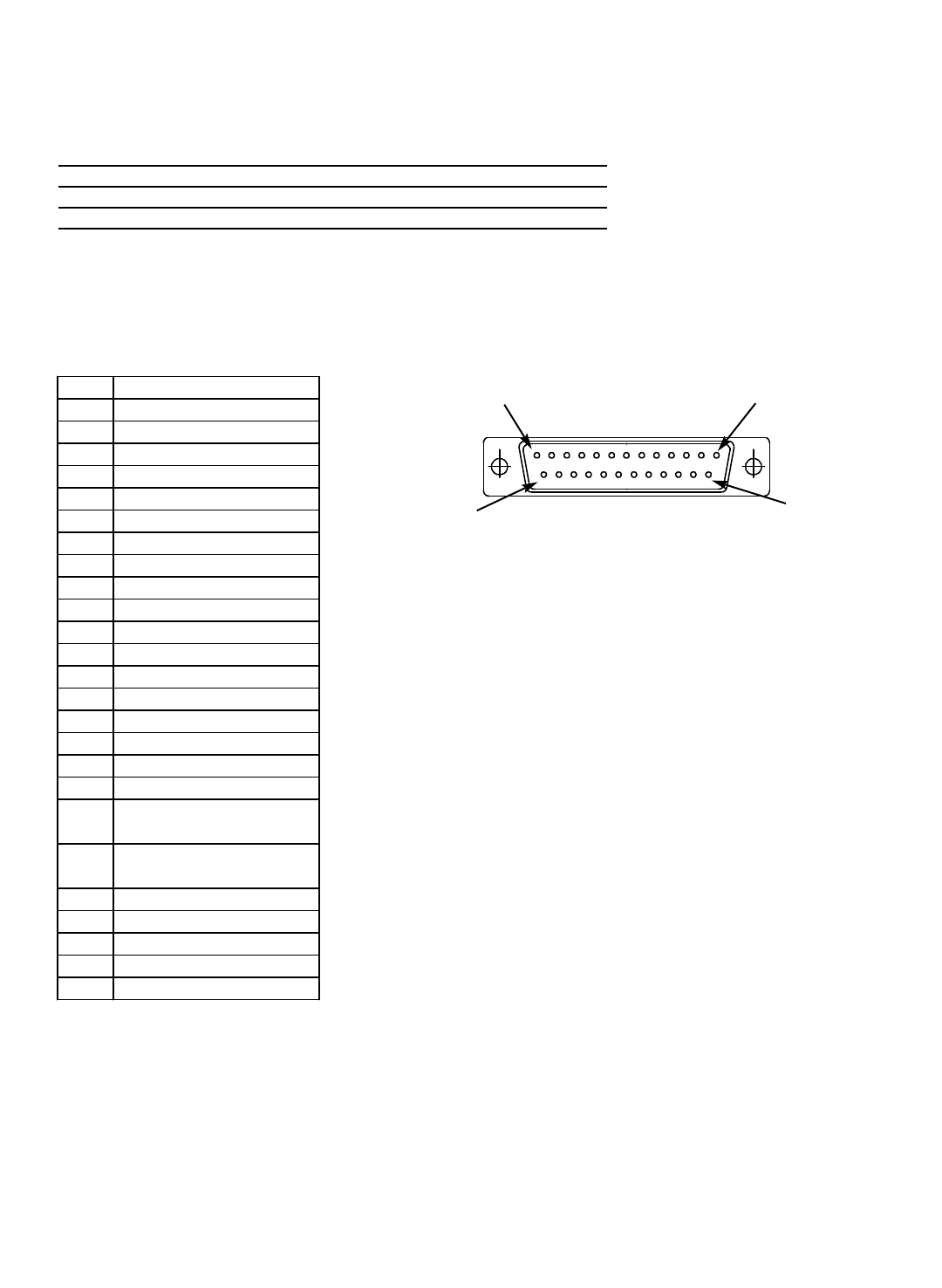

M3000SiDAA Output Connector
Pinout (DB25 )
Pin 1
Pin 14
Pin 13
Pin 25
System Specifications
M3000SiDAA Male DB25 Connector
Front View
Page 20
