For a dual mono operation, the AMP MODE switch (27) must be set to its center
position (MON1/MONO for PMP4000/PMP6000 or MON for PMP1000)! The two
loudspeaker outputs provide the main and the monitor signals, separately from
each another. Each of these signals is then sent to two speakers wired in parallel.
The illustration shows just one channel configuration possible, comprising mono
and stereo sources and additionally the tape input/output for recording the mix
signal or feeding in a playback signal.
Loudspeaker connection for F. O.H and monitor mix (mono)
PMP1000/PMP4000/PMP6000
Rear panel (excerpt)
2 x BEHRINGER EUROLIVE VP1520
(passive)
2 x BEHRINGER
EUROLIVE VP1220F
(passive)

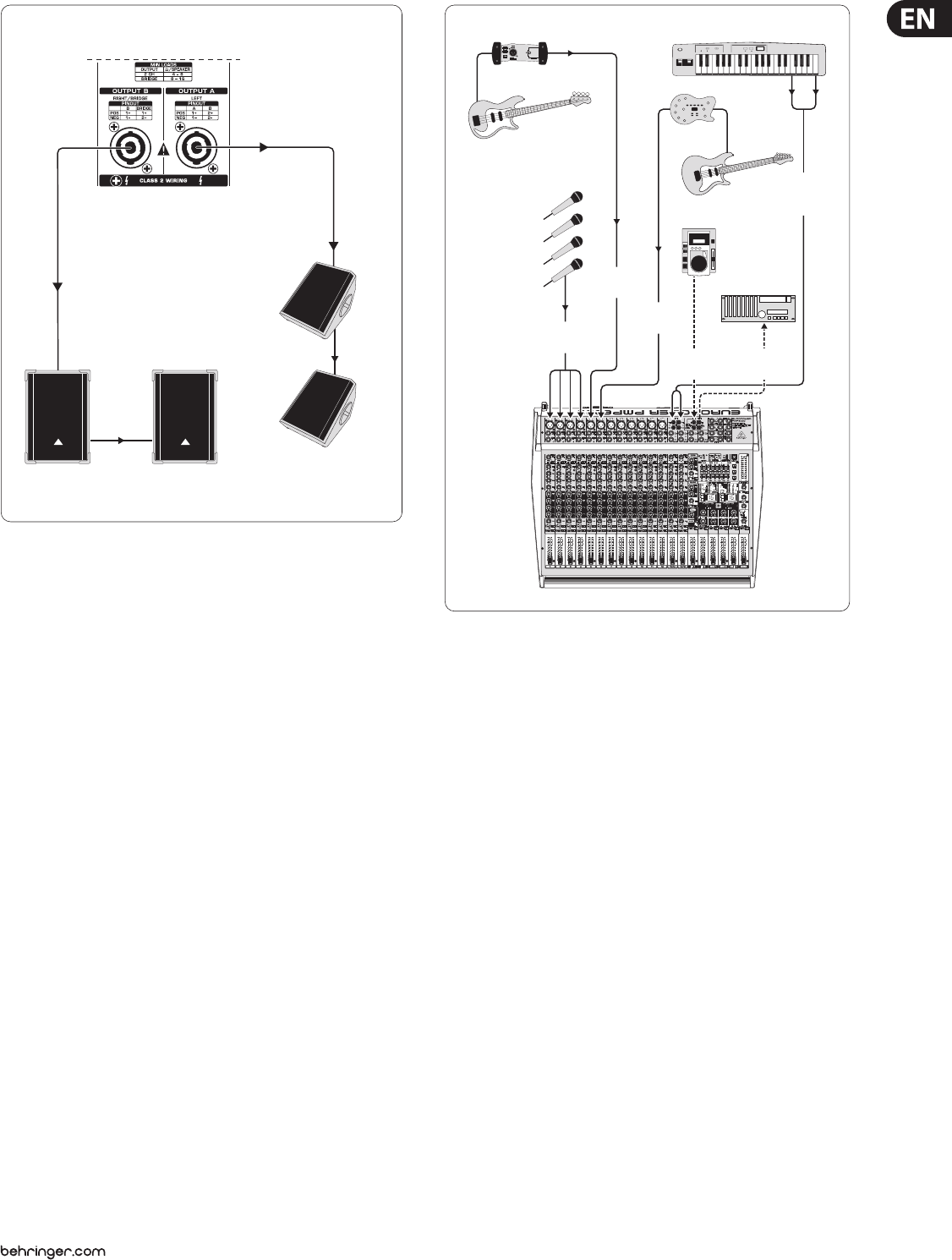

Fig. 5.3: Dual mono operation
ULTRA-G GI100
Electric bass
Vocal mics
Mono
channels 1-4
Mono
channel 5
Mono
channel 6
CD player
DAT recorder
Stereo
channel
13/14
Electric guitar
V-AMP2
Keyboard
CD/tape
in
CD/tape
out
Fig. 5.4: Standard set-up (example)
