Panel Descriptions
fig.0-02.e
921
* To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the
power on all devices before making any connections.
924
* Anchor the power cord, using the cord hook (see diagram). This prevents the plug from being pulled out accidently, and
reduces stress to the jack itself.
926a
* When connection cables with resistors are used, the volume of equipment connected to the inputs (MIX IN) may be low.
If this happens, use connection cables that do not contain resistors.

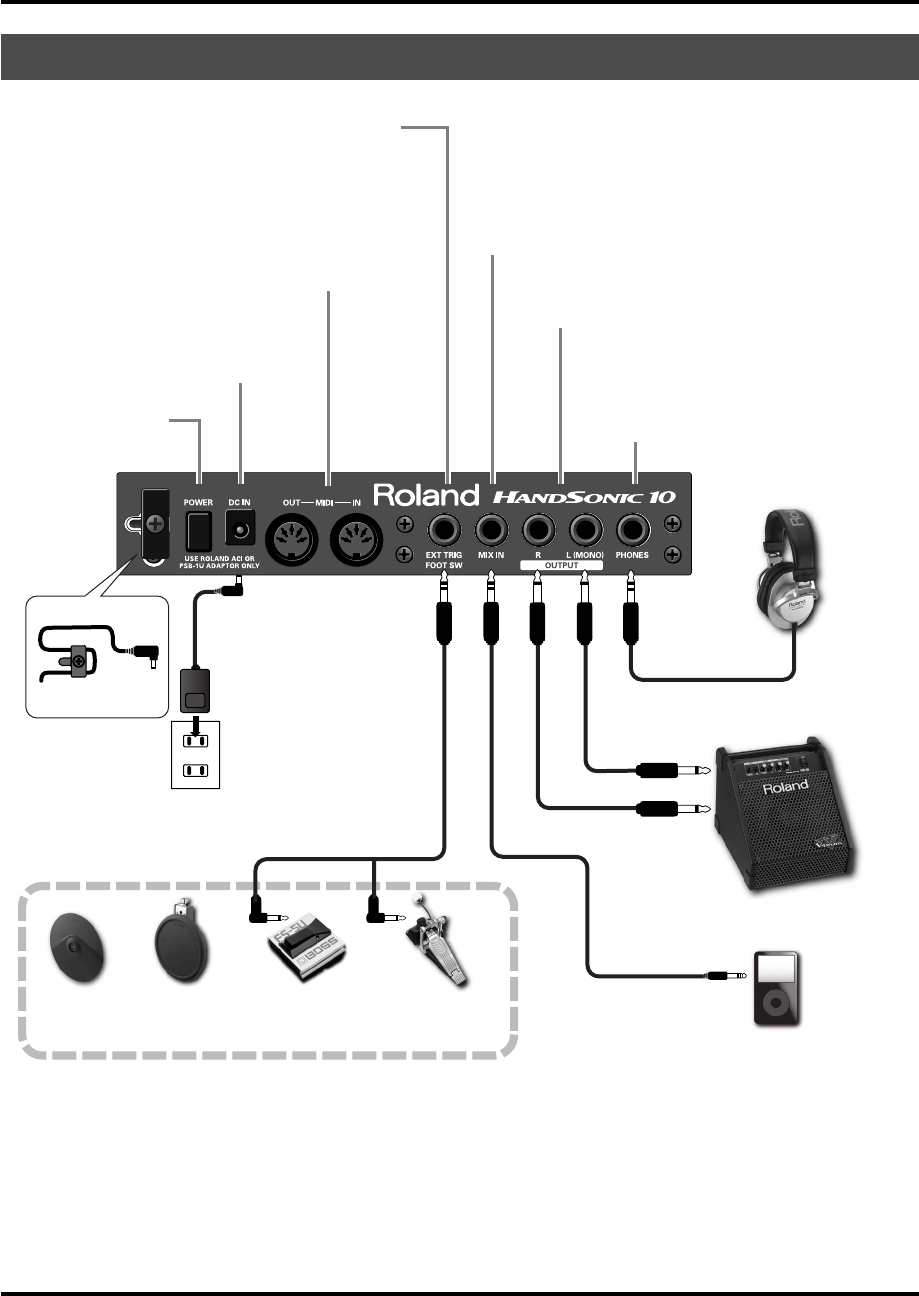

Rear Panel
AC adaptor
Audio cable
Audio cable
Kick Trigger Unit
KD-7
Foot Switch
FS-5U
Dual-Trigger Pad
PD-8
Dual-Trigger
Cymbal Pad
CY-8
Monitor Amplifier, etc.
R
L
Kick trigger unit, External pad, etc.
Cable
PCS-31L
Cord hook
Headphones
Portable music player, etc.
PHONES Jack
Connect stereo headphones.
Even if headphones are connected,
sound will still be output from the
OUTPUT jacks.
OUTPUT Jacks
For connecting to amplifiers, recording equipment.
When using in MONO, use only the L (MONO) jack.
MIX IN Jack (STEREO)
For connecting external audio sources. Sound input here
goes to the output jacks and headphone jack.
EXT TRIG / FOOT SW Jack
For connecting external pads, kick triggers
or foot switches (FS-5U/DP-2)
MIDI Connectors (IN, OUT)
OUT: For playing external modules
from the HandSonic 10
For saving data
IN: For using the HandSonic 10 as
a sound module
For loading data
AC Adaptor Jack
For connecting the included
AC adaptor
POWER Switch
Turns power on or off.
