PSU
The chunky remote 19" racked power supply is connected via a circular multiway (DC POWER IN) at the
bottom left-rear of the console. This supplies several DC operating voltages incl. +/-18 V (audio circuits), +48V
(mic phantom power), +12 V (BNCs) and +5 V (LEDs).

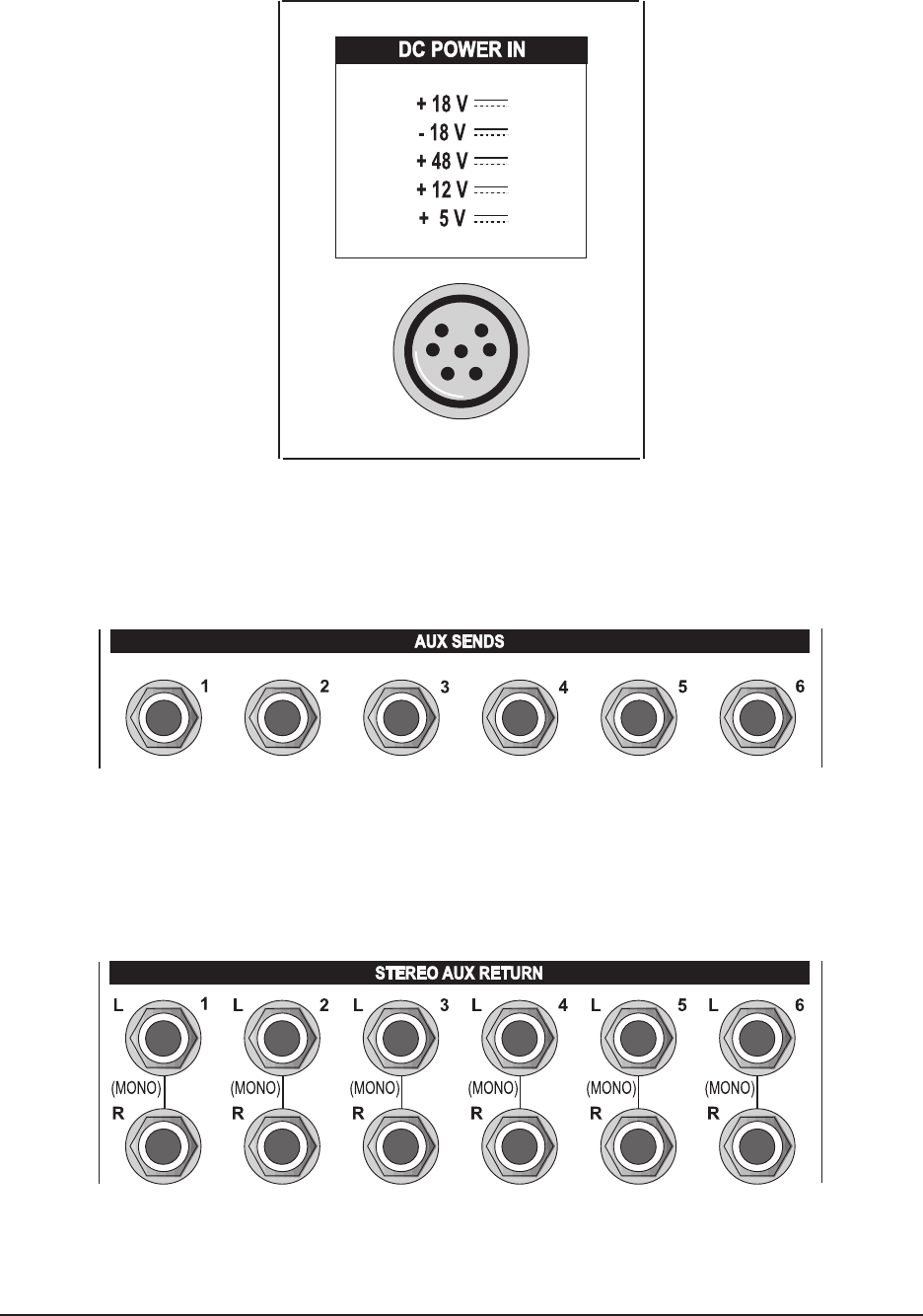

Fig. 7.2: Power supply unit connector
Auxiliary sends
Unbalanced 1/4" jacks, wired tip = signal (+ve) and sleeve = ground/screen. They operate at +4 dBu.
Fig. 7.3: Auxiliary sends
Auxiliary returns
All six stereo pairs, to be located immediately below the aux sends, are on unbalanced 1/4" jacks and operate
at 0 dBu.
Fig. 7.4: Auxiliary returns
