CONNECTIONS
CONNECTING POWER
CAUTION:
CONNECTING TO YOUR HEADPHONE
You can power the system from a standard AC outlet by using the supplied power cord.
The supplied AC power cord has a polarized plug that fits into the wall outlet only one way. If the plug
does not fit properly,turn it over and try again. Do not force it.
A headphone jack is provided for using headphones instead of the built-in speakers. (Headphones are sold
separately.)
BEFORE CONNECTIONS ARE MADE
!
!
Always turn off the Singing Machine, TV and other components before connecting or disconnecting any cables.
Please refer to the instructions listed on this manual. If another component is being connected to this unit,
please refer to the corresponding owner's manual if assistance is needed.

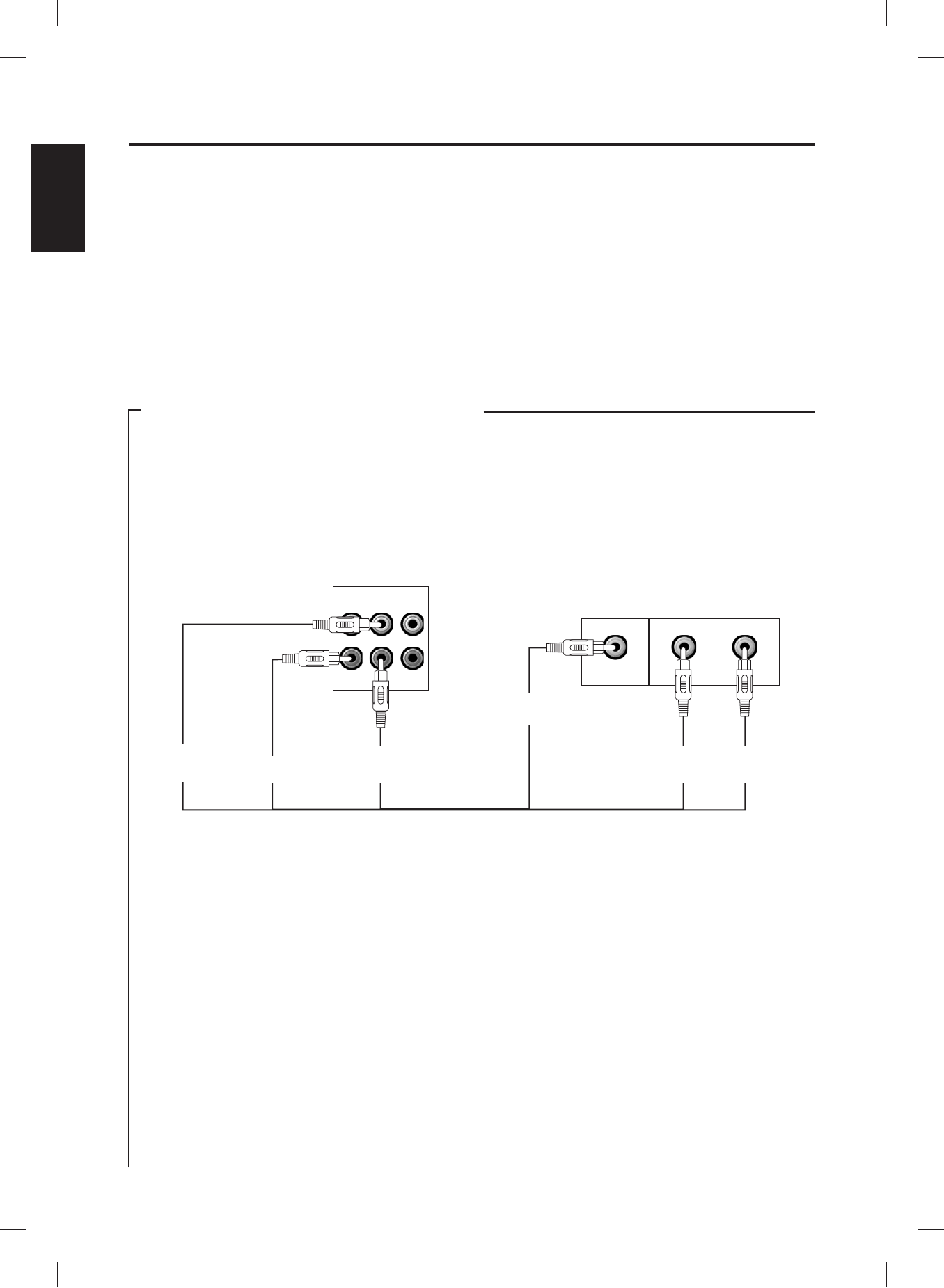

CONNECTING TO A VIDEO SYSTEM
E17
In order to view a DVD, JPG picture CD or sing-along with a CDG on your TV screen, you must connect the RCA
cables (Red-White-Yellow colored plugs) to the output jacks on the rear panel of the unit. Then connect the other
end o the RCAplugs to theAUX and VIDEO Input jacks of the video system such as a TV. (If your television does
not include the required Video Inputs a RF modulator (Radio Frequency Modulator) is recommended. The RF
Modulator connects to your TV antenna or cable line and serves as Video Input. The illustration below displays
the connections required for another video system.
NOTE:
Please use the provided CDG disc to test the connections. The lyrics and music of songs on the disc will be
displayed on the TV screen.
In order to display the image only on the video system, do not connect the AUDIO OUT (L & R) jacks. The
audio signal will come from the built in speakers. If no sound is heard, check the volume settings of the
unit.
ENGLISH
REAR VIEW OF
SINGING MACHINE
AUDIO
OUT
VIDEO
IN
VIDEO
OUT
AUDIO
IN
LL
R
R
VIDEO OUTPUT
(Yellow Jack)
REAR VIEW OF
VIDEO SYSTEM
VIDEO INPUT
(Yellow Jack)
VIDEO
IN
AUX IN
AUX IN
L
R
AUX OUT
L
(White Jack)
AUDIO OUT
L
(White Jack)
AUDIO OUT
R
(Red Jack)
AUX IN
R
(Red Jack)
