CONNECTIONS
E19
ENGLISH
CONNECTINGANAUDIOCOMPONENT FOR OUTPUT
To connect an audio component (such as a power amplifier or a PA system amplifier) so you can hear the Singing
Machine’s music & vocal through it, plug the audio component into either theAUDIO OUT jacks or COAXIAL OUT
jack.

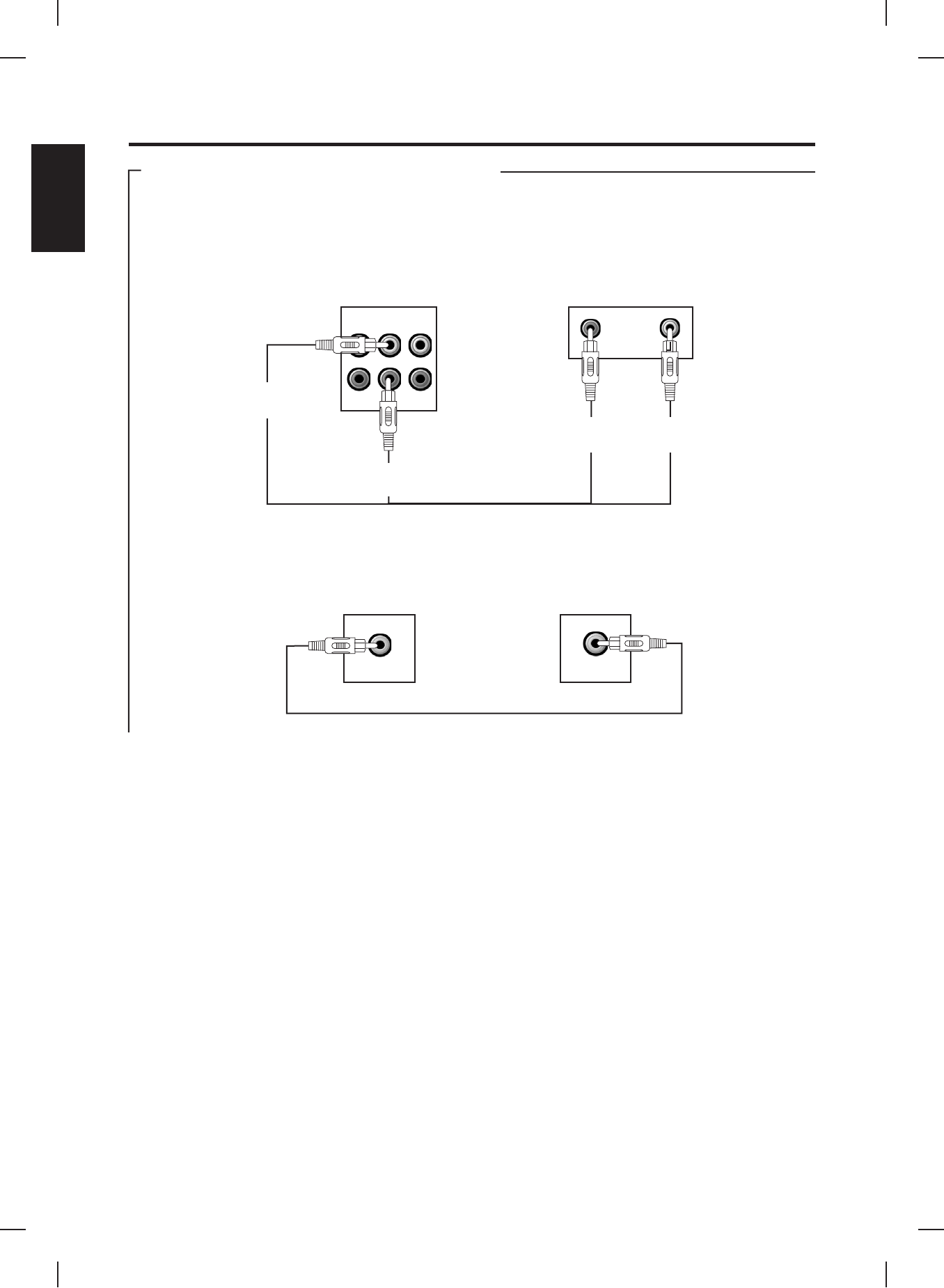

CONNECTING TO AN AUDIO SYSTEM
AUDIO OUTPUT
L
(White Jack)
OR
AUDIO
OUT
VIDEO
IN
VIDEO
OUT
AUDIO
IN
LL
R
R
REAR VIEW OF
SINGING MACHINE
ANOTHER
AUDIO COMPONENT
AUDIO INPUT
R
(Red Jack)
AUDIO INPUT
L
(White Jack)
AUDIO OUTPUT
R
(Red Jack)
R
AUDIO IN
COAXIAL IN
ANOTHER
AUDIO COMPONENT
REAR VIEW OF
SINGING MACHINE
COAXIAL
L
MONITOR SELECT
VIDEO OUT SELECT
!
!
!
!
!
To play a DVD/CDG/CD disc, set Monitor Select to DVD/AUX mode.
To display a video signal from another AV component, set the Function Select to AUX mode and Monitor
Select to DVD/AUX mode.
To display your image on the Singing Machine’s monitor, set the Monitor Select to CAMERA mode.
To display DVD/CDG image on the TV, set Function Select to DVD and set Video Out Select to DVD/AUX
mode.
To display your image on the TV,
set the CAMERA mode to video out.
