AUDIO
OUT
VIDEO
IN
VIDEO
OUT
AUDIO
IN
LL
R
R

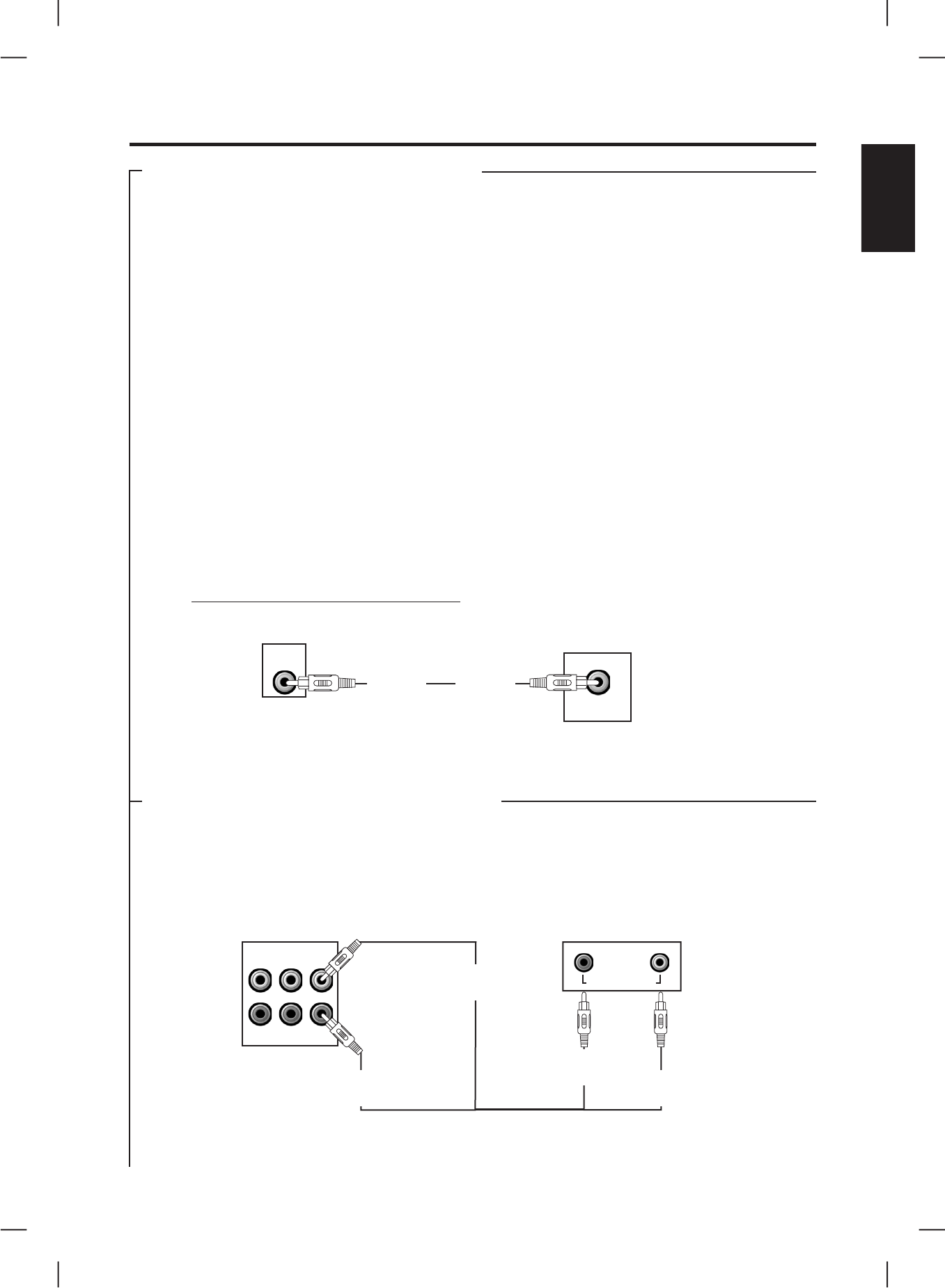

CONNECTIONS
COMMON WAYS TO CONFIGURE YOUR TV OR VCR
CONNECTINGAVIDEOCOMPONENT FOR INDEPENDENT DVD VIDEO OUTPUT
CONNECTINGANAUDIOCOMPONENT FOR INPUT
You must specify the source you wish to view when you are connecting the video out from the Singing Machine
to either a TV or a VCR. Every TV and VCR manufacturer accomplishes the set-up a little differently. Even
though every TV and VCR is a little different, the general idea is the same - if you have two sources of video
signal (cable or antenna and Singing Machine), you have to specify which one is displayed on the screen.
If you have never used the video input RCA jack or coaxial cable on your TV/VCR you should consult your
TV/VCR user guide. If you don't have your manual please contact your TV/VCR manufacturer for information
either by phone or by viewing their website for online assistance. They will be able to guide you very quickly on
how to configure your TV or VCR to display the video connection.
The three most common ways to set up the TV/VCR are:
1) A ‘Video’ button may be on the TV/VCR or on the remote control. Pressing ‘Video’ may display the input from
your Singing Machine.
2) Try looking for a ‘Video’channel between the regular channels on your TV/VCR. Do this by setting the channel
on the TV/VCR to channel 2 then pressing the ‘Down’ channel button to see if there is a ‘Video In’ or ‘Line In’
between the lowest channel and the highest channel on your system.
3) The configuration may also be located in the set-up menu on the TV/VCR. Look for a section on ‘Input
Selection’where you might be able to choose the input source i.e. ‘Cable/Ant.’, ‘Video 1’, ‘Line In’ or ‘Video In’.
(1) Locate the multicolored RCA patch cords.
(2) Connect yellow video cable to your desired DVD Output jack on the back of the Singing Machine.
(3) Connect the other end of the cords to the Video Input jack on your video system.
(4) Press the Video Out Button to DVD/AUX mode.
To connect another audio source (such as a Tuner or an AV Receiver) so you can sing along with its music,
simply connect the AUDIO OUT jacks (Red & White RCA jacks) to the Singing Machine’s AUDIO IN R & L jacks
and choose the DVD/AUX mode by pressing FUNCTION button.
FOR INDEPENDENT DVD VIDEO OUTPUT
CONNECTING TO AN AUDIO SYSTEM
E18
ANOTHER
AUDIO COMPONENT
AUDIO INPUT
R
(Red Jack)
R
L
AUDIO OUT
AUDIO OUTPUT
R
(Red Jack)
REAR VIEW OF
SINGING MACHINE
AUDIO OUTPUT
L
(White Jack)
AUDIO INPUT
L
(White Jack)
ENGLISH
CONNECTING TO A VIDEO SYSTEM
REAR VIEW OF
VIDEO SYSTEM
VIDEO
IN
VIDEO IN
(Yellow Jack)
DVD
VIDEO OUT
(Yellow Jack)
REAR VIEW OF
SINGING MACHINE
DVD OUT
