CLP-F01 Connections
ENGLISH
52

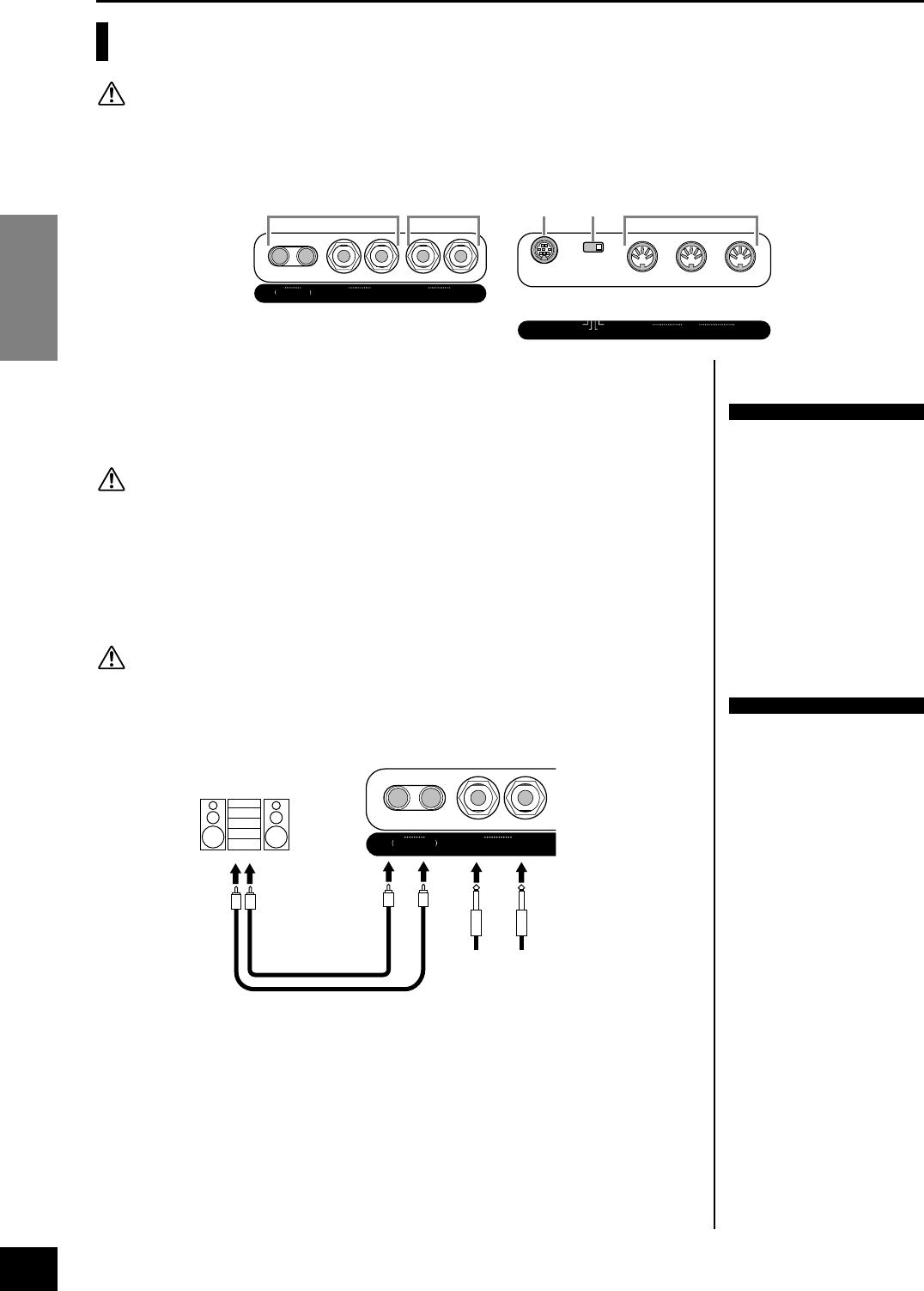

Connections
Connectors
CAUTION
Before connecting the Clavinova to other electronic components, turn off the power to all the components. Before turn-
ing the power on or off to all components, set all volume levels to minimum (0). Otherwise, electrical shock or damage to
the components may result.
1 AUX OUT [R] [L] Pin jacks (LEVEL FIXED), [R] [L/L+R] Phone jacks
You can connect these jacks to a stereo system to amplify the Clavinova or to a cas-
sette tape recorder to record your performance. Refer to the diagram below and use
audio cables to make the connections.
CAUTION
Do not route the output from the AUX OUT jacks to the AUX IN jacks. That is, when
you connect an external audio device to the AUX OUT jacks, do not connect the audio
device to the Clavinova’s AUX IN jacks. If you make this connection, the signal input at
the AUX IN jacks will be output from AUX OUT. This creates an audio loop, causing
audio oscillation and abnormal playback, and leading to malfunction of both pieces of
equipment.
CAUTION
When the Clavinova’s AUX OUT jacks are connected to an external audio system, first
turn on the power to the Clavinova, then to the external audio system. Reverse this
order when you turn the power off.
AUX IN
AUX OUT
L
/
L+RRL
/
L+RR
LEVEL FIXED
LR
TO HOST HOST SELECT
MIDI
MIDI
PC-2
Mac
PC-1
THRU OUT IN
12345
NOTE
Use audio cables and adaptor
plugs with no resistance.
NOTE
The Clavinova’s [MASTER
VOLUME] and [BRILLIANCE]
control setting does not affect
the signal output from the AUX
OUT (LEVEL FIXED) jacks.
Clavinova
Stereo
RCA
pin plug
To powered speakers
RCA
pin plug
AUX IN
When these are connected (with stan-
dard phone plugs), you can use the
[MASTER VOLUME] control to adjust
the volume of the sound output to the
external device.
When these are connected (with RCA pin
plug; LEVEL FIXED), the sound is output to
the external device at a fixed level, regardless
of the [MASTER VOLUME] control setting.
phone
plug
(standard)
audio cable
AUX OUT
L
/
L+RR
LEVEL FIXED
LR
