CLP-F01 Connections
ENGLISH
55

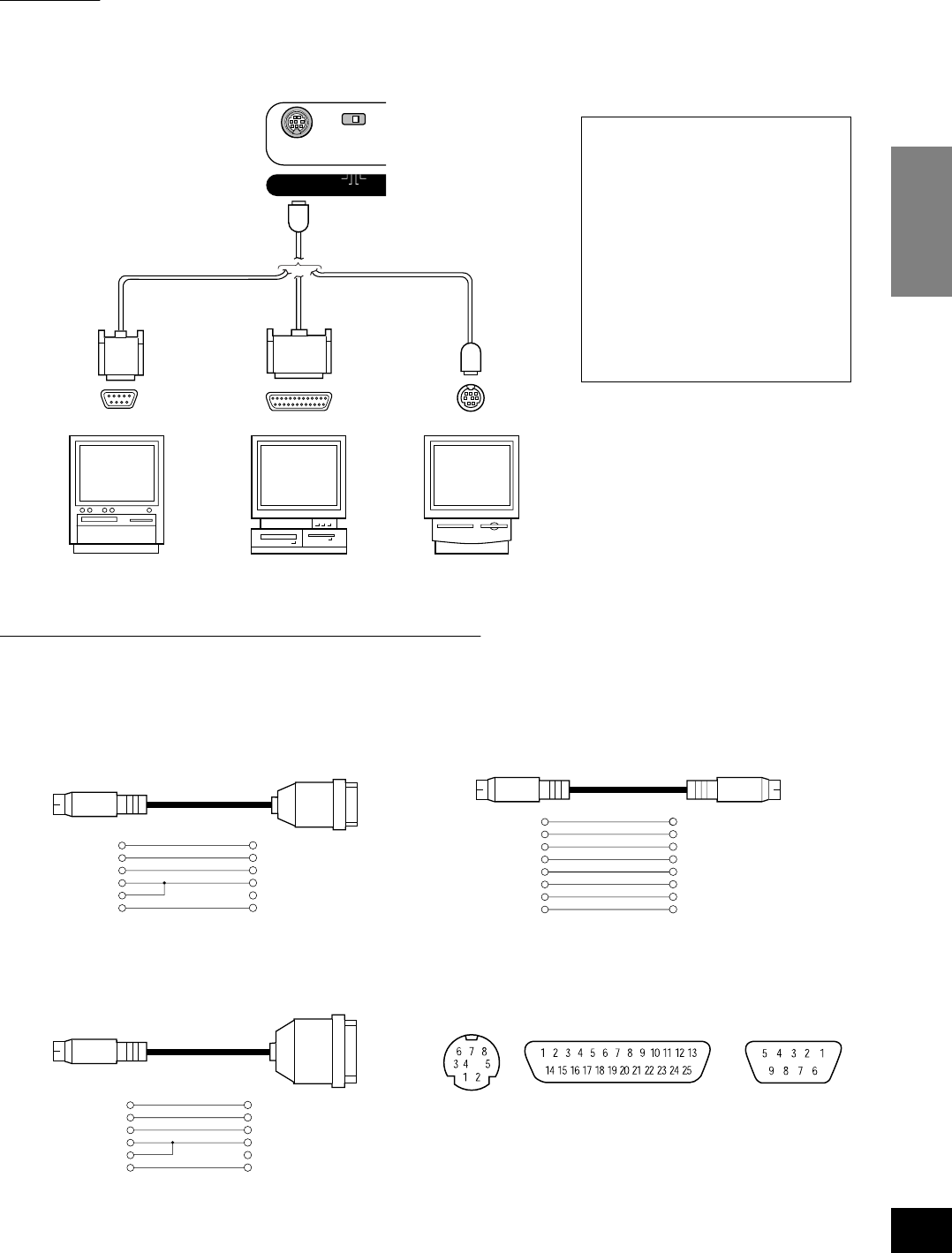

1. Connecting the serial port on the computer to the Clavinova’s TO HOST jack
Connect the computer’s serial port (RS-232C or RS-422) to the Clavinova’s TO HOST jack.
With this connection, the Clavinova functions as a MIDI interface. Therefore, you do not need a special MIDI interface.
Connection
Use a special serial cable (page 55) to connect the computer’s serial port (RS-232C or RS-422) to the Clavinova’s TO
HOST jack.
Type of serial cables and connection pin assignments
Depending on the type of computer you connect, use one of the following serial cables.
Note for Windows users
(regarding the MIDI driver)
To transfer data via the computer’s
serial port and the Clavinova’s TO
HOST jack, you need to install a
specific MIDI driver (the Yamaha
CBX-MIDI driver for Windows).
You can download this driver from
the following Yamaha web site:
http://music.yamaha.com/
download/
Clavinova
TO HOST
Windows Windows Macintosh
modem portRS-232C (D-sub 9-pin) RS-232C (D-sub 25-pin)
TO HOST HOST SELECT
MIDI
PC-2
Mac
PC-1
Windows (with a serial port of D-sub 9-pin)
8-pin mini DIN plug ➝ D-sub 9-pin plug
(Yamaha CCJ-PC2 or equivalent)
Macintosh
System peripheral plug ➝ 8-pin plug
(Yamaha CCJ-MAC or equivalent)
Windows (with a serial port of D-sub 25-pin)
8-pin mini DIN plug ➝ D-sub 25-pin plug
(Yamaha CCJ-PC1NF or equivalent)
Pin assignment
The following diagram shows the pin assignments for each cable.
8 (CTS)
7 (RTS)
2 (RxD)
5 (GND)
3 (TxD)
1
2
3
4
8
5
mini DIN
8-pin
D-sub
9-pin
2 (HSK i)
1 (HSK O)
5 (RxD-)
4 (GND)
3 (TxD-)
8 (RxD+)
7 (GP-)
6 (TxD+)
1
2
3
4
5
6
7
8
mini DIN
8-pin
mini DIN
8-pin
5 (CTS)
4 (RTS)
3 (RxD)
7 (GND)
2 (TxD)
1
2
3
4
8
5
mini DIN
8-pin
D-sub
25-pin
mini DIN 8-pin
D-sub 25-pin
Pin numbers (view from front)
D-sub 9-pin
