In the example figure below, inputs 1 to 4 have been routed to outputs 1 through 4 by
unmuting the mix-point for mic/line input 1 on each output (1 through 4) bus. Again, the
mix-points are teal to indicate the routing.

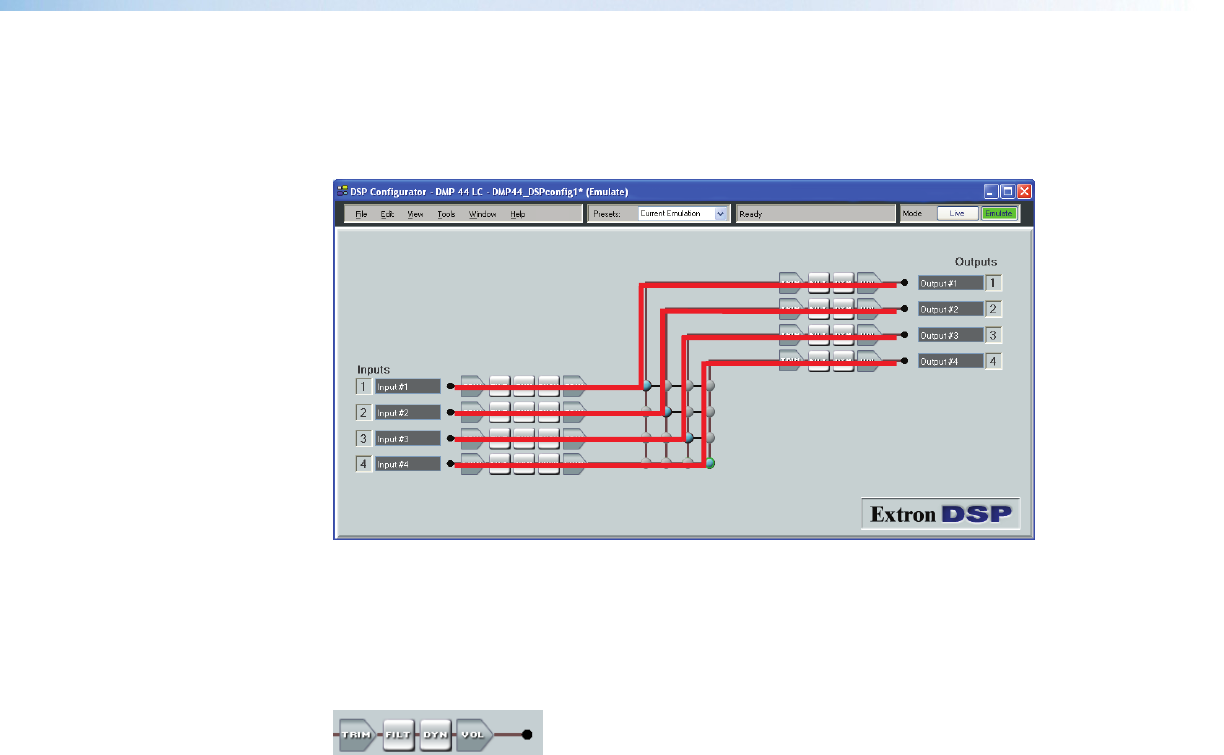

Figure 21. All Inputs to All Outputs
Line Output Channels
There are four mono line output channels. Controls and processing blocks, identical for
each output channel, are described in the following sections.
Filter
Filter function and interface is identical to the line input channel filter block, described
in “Filter Block.” However, there are a total of nine filters allowed in the output signal
processor chain.
DMP 44 LC • Operation 37
