Edirol V-4 Music Mixer User Manual



13
Before you begin

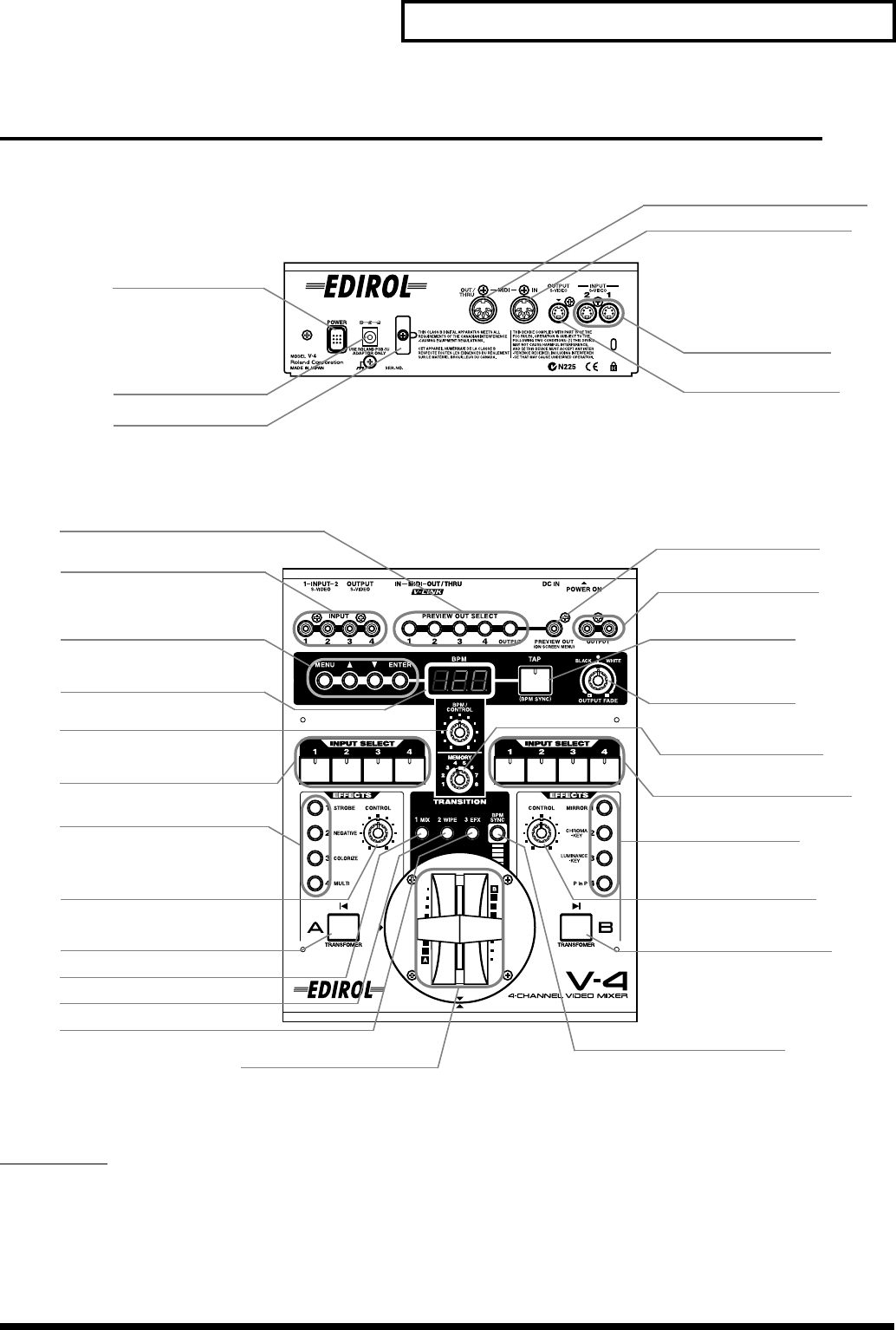

Names of things and what they do
Rear Panel
1.
Power button (POWER)
This button turns on the power of the V-4 (p. 19)
2.
DC in connector
Connect the power cable (DC) from the AC adaptor to this connector.
1. Power button (POWER)
2. DC in connector
3. Power cable hook
4. MIDI OUT connector (MIDI OUT)
5. MIDI IN connector (MIDI IN)
6. S-video output jack
(S-VIDEO OUTPUT)
7. S-video input jack
(S-VIDEO INPUT)
Rear Panel
Front Panel
8. Video (composite)
input jacks (INPUT)
9. Preview select buttons
(PREVIEW OUT SELECT)
10. Preview output jack
(PREVIEW OUT)
11. Video (composite)
output jacks (OUTPUT)
12. Parameter setting buttons
13. BPM indicator
14. Tap button (TAP)
15. Output fade dial
(OUTPUT FADE)
16. Channel A input selector
(INPUT SELECT)
17. BPM control dial
(BPM CONTROL)
18. Memory dial (MEMORY)
19. Channel B input selector
(INPUT SELECT)
20. Channel A effect
buttons (EFFECTS)
21. Channel A effect
control dial (CONTROL)
22. Channel A transformer
button (TRANSFORMER)
23. Mix button (MIX)
24. Wipe button (WIPE)
25. EFX button (EFX)
26. BPM sync button (BPM SYNC)
27. Video fader (T-bar Type)
28. Channel B effect
buttons (EFFECTS)
29. Channel B effect
control dial (CONTROL)
30. Channel B transformer
button (TRANSFORMER)
