4 KAWAI DIGITAL PIANO CA1200, CA1000
PARTS PROVIDED
End Panel (A) 2 pcs.
Side Panel (B) 2 pcs.
Back Board (C) 1 pc.
Front Panel (D) 1 pc.
Pedal Board (E) 1 pc.
Speaker Box (F) 2 pcs.
Screw G (M6 x 40) 8 pcs.
READ ME FIRST (CA1200)
(G)
(H) (I)
(J)
(K)

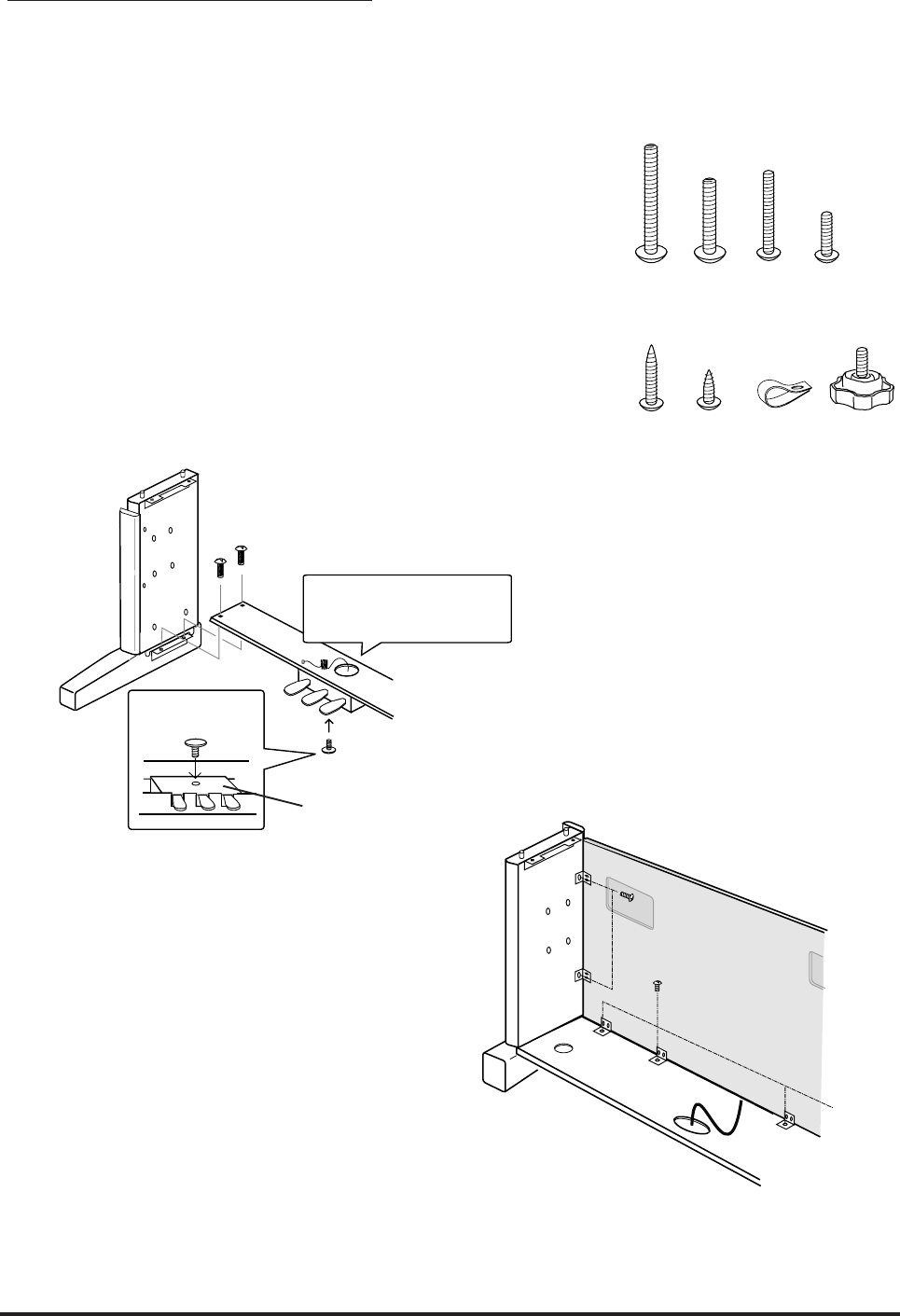

1. Insert the Adjuster (N) on the Pedal
Unit.
2. Fasten the Side Panels (B) and the
Pedal Board (E) with four screws (H).
3. Untie the pedal cable on the bottom
of Pedal Board (E) and put it through
the hole of the Pedal Board (E).
Cord Clamp
Adjuster
M4 x 15
M4 x 30
M6 x 25
M6 x 40
ø4 x 20
ø4 x 12
(L)
4. Put the Front Panel (D). First,
fasten the Side Panels (B) and the
Front Panel (D) with four screws (I).
5. Then fasten the Pedal Board (E)
and the Front Panel (D) with four
screws (J).
Screw H (M6 x 25) 8 pcs.
Screw I (M4 x 30) 4 pcs.
Screw J (M4 x 15) 4 pcs.
Screw K (ø4 x 20) 10 pcs.
Screw L (ø4 x 12) 1 pc.
Cord Clamp (M) 1 pc.
Adjuster (N) 1 pc.
Adjuster
Pedal Board
Screw
M6 x 25
Side Panel
Put the pedal cable
through the hole.
Bottom View
(H)
(B)
(E)
(N)
Screw M4 x 30
Screw M4 x 15
Back View
(B)
(E)
(D)
(I)
(J)
Before beginning the assembly of your CA1200 read and become familiar with the assembly instructions
that follow. Then, carefully unpack the piano and check your unit against the parts list.
(M)
(N)
Pedal Unit
