5INTRODUCTION
M6 x 25
1. Loosen the screw to
let the hook move
freely.
2. Let the hook engage
with the stopper and
re-tighten the screw.

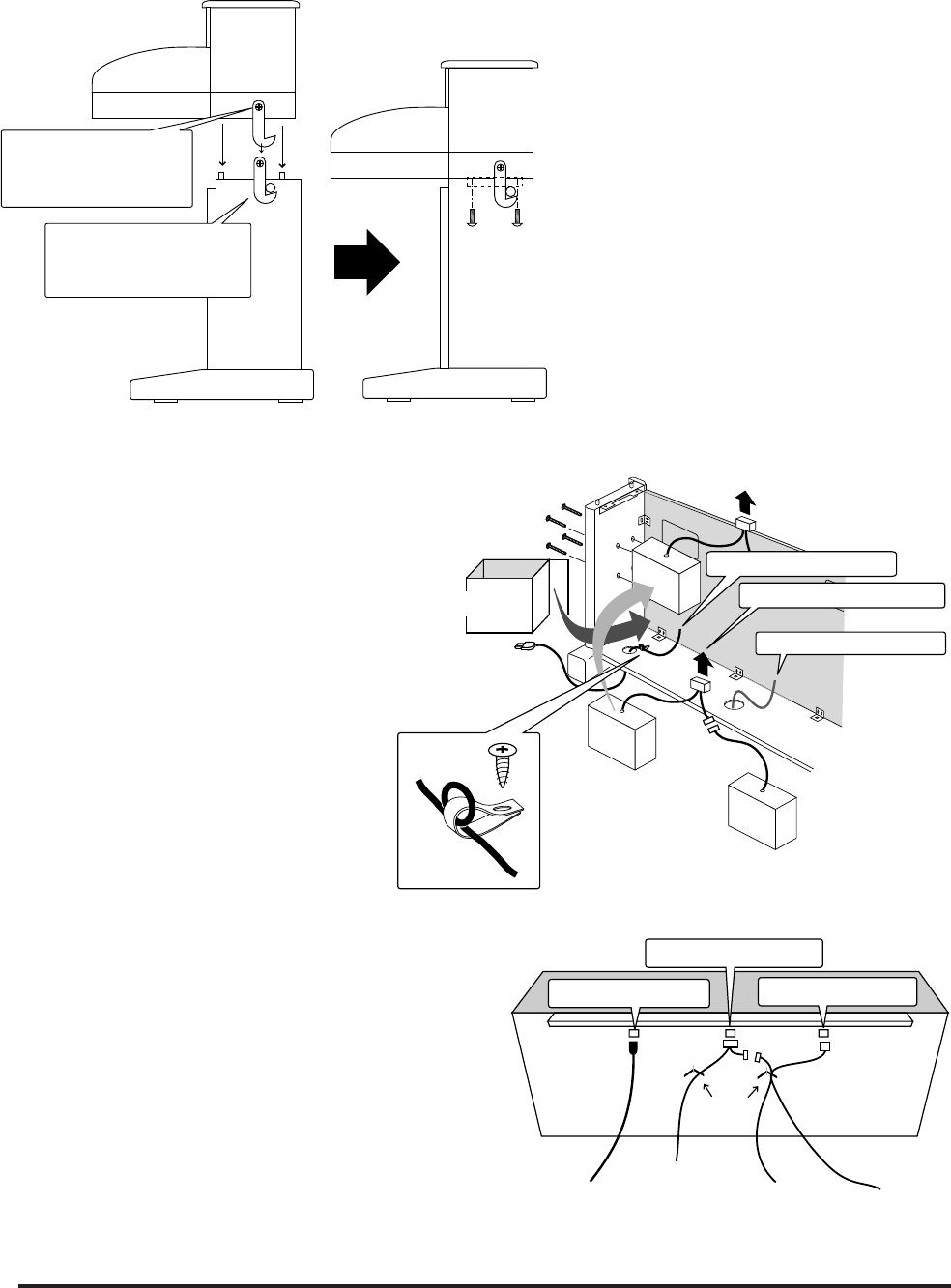

6. Loosen the screws of the hooks and
carefully put the main unit on the stand.
Align the dowels of the stand to the holes
of the main unit.
7. Let the hooks engage with the stoppers
and re-tighten the screws.
8. Fasten the main unit and the stand with
four screws (H).
CAUTION:
Be sure to secure the main unit to the
stand with the screws. If you fail to do
so, the unit could fall from the stand
causing damage or personal injury.
9. Put the right speaker box (the one
with two connectors) on the speaker
support and align the screw holes to
the holes of the right Side Panel (B).
Fix with four screws (G).
10. Repeat the same for the left
speaker box.
11. Take the speaker support out after
attaching the speaker boxes.
12. Connect the both speaker cables
together and then connect to the
speaker cable connector of the main
unit.
13. Put the pedal cable to the pedal
cable connector of the main unit.
14. Attach the speaker cables and
pedal cable with vinyl binders as
illustrated.
15. Connect the power cable to the
power cable connector of the main
unit. Put it through the hole of the
pedal board and fix with Cord Clamp
and screw (L) at the pedal board near
the hole. Turn the cord around the
Cord Clamp as illustrated.
to the Right Speaker
to the Left Speaker
Vinyl Binder
Key Bed
Bottom View (Main Unit)
Power Cable Connector
Speaker Cable Connector
Pedal Cable Connector
Right Speaker
Left Speaker
Speaker Support
to the Power Cable Connector
to the Speaker Cable Connector
to the Pedal Cable Connector
Screw M6 x 40
(H)
(G)
