Basic Connections and Settings
With the connections and settings described here, you can listen to audio data play back from your
computer while you record just your vocal or guitar performance into your sequencer.

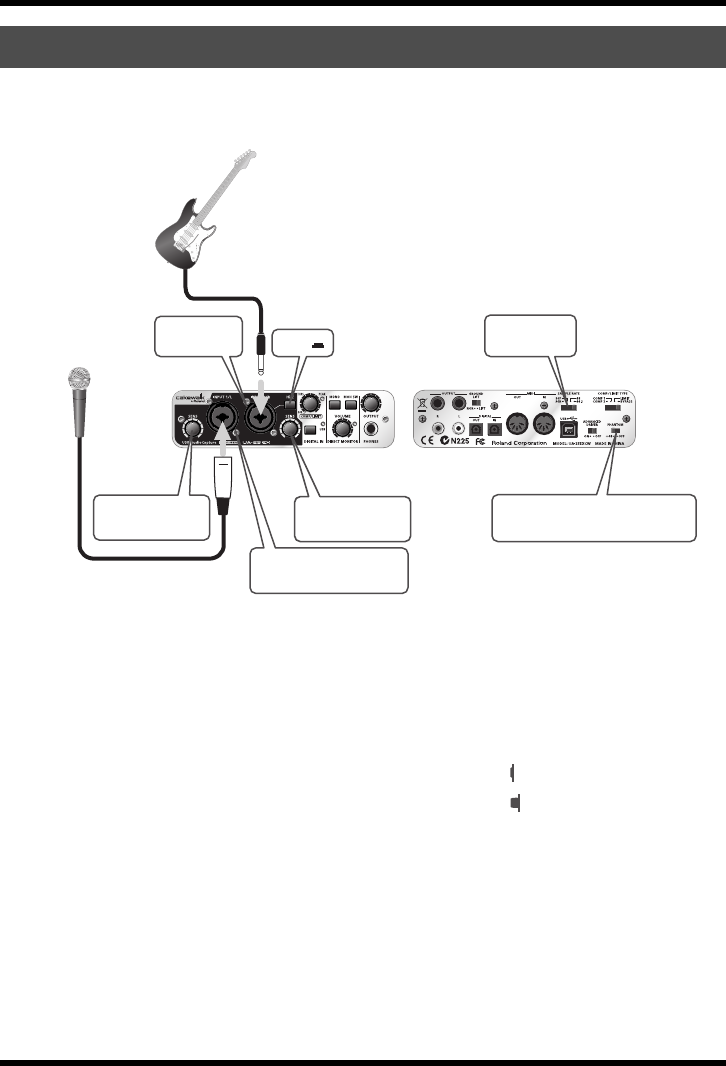

fig.mic-guitar.eps
Connections
The sound of the microphone connected to INPUT 1 will be recorded in your computer on the left
(L) channel. If you connect a source to INPUT 2, it will be recorded on the right (R) channel.
Connect your guitar/bass to INPUT 2.
Input impedance select switch
If you’ve connected a guitar/bass to INPUT 2: Select Hi-Z ( pressed inward).
If you’ve connected a microphone to INPUT 2: Select Lo-Z ( outward position).
Phantom power switch
If you’re using a condenser microphone, turn the phantom power switch on.
* If a device that does not use phantom power is connected, you must turn off the phantom
power switch. Failing to do so may cause malfunction.
Connecting a microphone or a guitar
Adjust the Input
Sensitivity
Guitar/Bass
Adjust the Input
Sensitivity
Connect to
INPUT 2
Turn ON when connecting a
phantom powerd microphone
Hi-z
Specify the
Sample Rate
Connect a microphone
to XLR type jacks
