Multi Mode

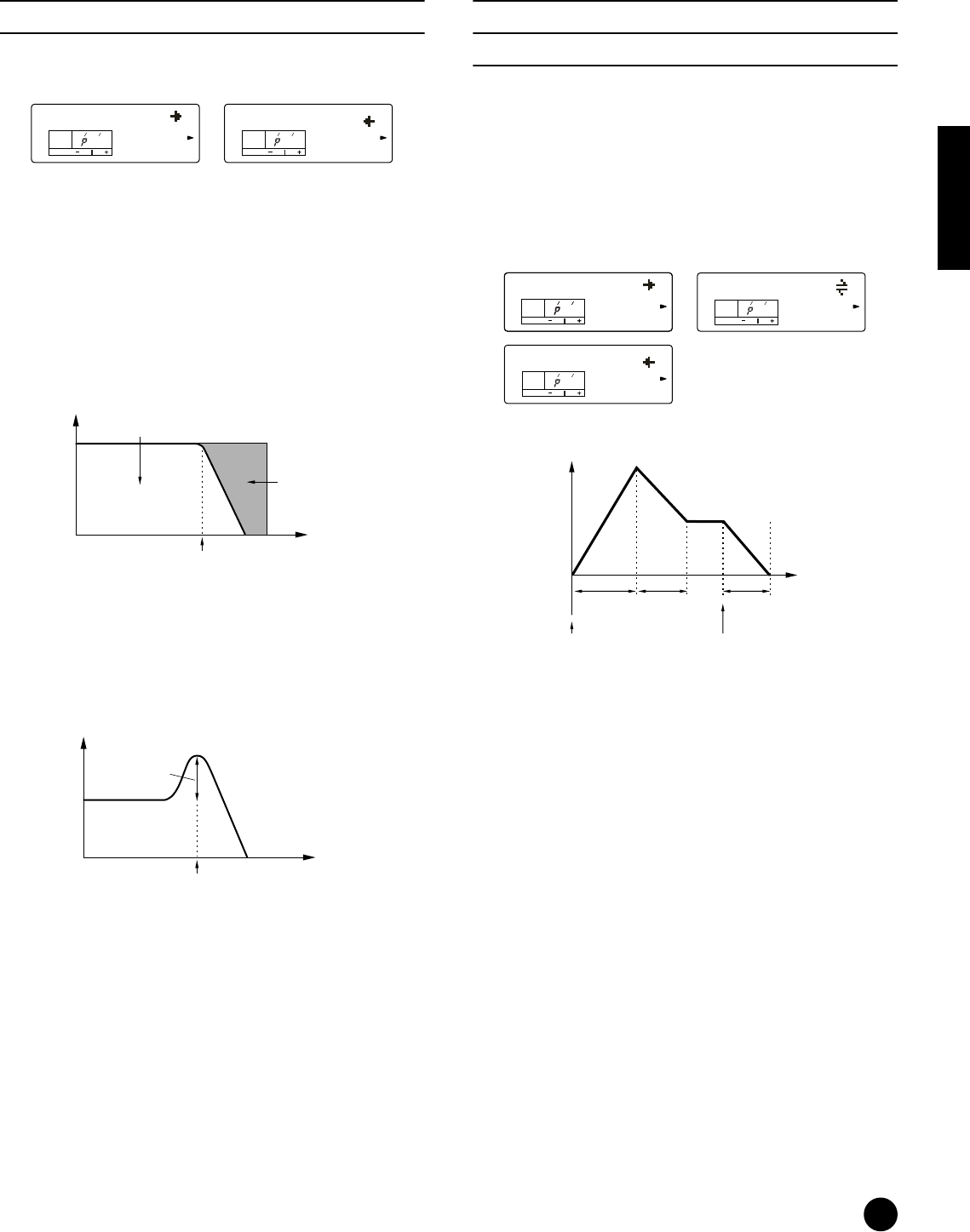

11-1. Cutoff
11-2. Resonance
You can set Filter parameters to change the tonal
characteristics of each Part
Filter is the section of the tone generator that changes
the tonal qualities of a Voice by passing only a limited
frequency range and cutting signals outside that range.
The S03 employs an LPF (low pass filter).
❏ Settings: –64 ~ +63
■ Cutoff
Set the Cutoff frequency of the low pass filter. Only
frequencies below this point are passed.
■ Resonance
Set the amount of Resonance (harmonic boost)
applied to the signal around the Cutoff frequency.
This is a useful way of adding further character to
the sound.
12-1. Attack Tm (Attack Time)
12-2. Decay Tm (Decay Time)
12-3. Releas Tm (Release Time)
This determines the EG (Envelope Generator)
Parameters for each Part. There are three parameters
governing the transition in tone and output level from
the moment a note is pressed on the keyboard to the
moment it is released or the point at which the level
has faded to zero.
n These three parameters affect both the AEG and the
FEG.
❏ Settings: –64 ~ +63
■ Attack Tm
Determines the transition time from the moment a
key on the keyboard is pressed to the point at which
the level of the Voice reaches its peak. Positive
values will lengthen the transition time and negative
values will shorten it.
■ Decay Tm
Determines the transition time from the point at
which the level of the Voice reaches its peak to the
point at which it levels off. Positive values will
lengthen the transition time and negative values will
shorten it.
■ Releas Tm
Determines the transition time from when the key is
released to when the sound level decays to zero.
Positive values will lengthen the transition time and
negative values will shorten it.
Cutoff
+00
KEYELEMPAR T
OCTAVE
PAG E
11
Resonance
+00
KEYELEMPAR T
OCTAVE
PAG E
11
1
1
Frequency
Level
Cutoff
Cutoff range
Range passed
Frequen
c
Level
Cutoff
Resonance
Attack Tm
KEYELEMPAR T
OCTAVE
PAG E
12
1
Attack Tm
KEYELEMPAR T
OCTAVE
PAG E
12
1
Decay Tm
KEYELEMPAR T
OCTAVE
PAG E
12
1
Releas Tm
+00
KEYELEMPAR T
OCTAVE
PAG E
12
1
+00 +00
Key on Key off
Attack
Time
Release
Time
Decay
Time
Time
Level
Part Tone
