22-1. FEGAtkVel
(FEG Attack Velocity)
22-2. FEGOthVel
(FEG Other Velocity)
You can set parameters controlling the sensitivity of
the Filter Envelope Generator (FEG) to note velocity.
■ FEGAtkVel
Determines the velocity sensitivity of the FEG
Attack Rate.
❏
Settings: –7~+7
■ FEGOthVel
Determines the velocity sensitivity of all FEG Rates,
other than Attack Rate.
❏ Settings: –7~+7
23-1. AEGAtkR (AEG Attack Rate)
23-2. AEGDcy1R
(AEG Decay 1 Rate)
23-3. AEGDcy2R
(AEG Decay 2 Rate)
23-4. AEGRelR
(AEG Release Rate)
You can set various Rate parameters (the time it takes
for the volume to change from one level to the next) for
the Amplitude Envelope Generator (AEG). Combined
with the AEG Level settings below, these can be used
control the change in output level from the moment a
note is pressed on the keyboard to the moment it is
released (see illustration below). You can set different
values for each Element.
❏
Settings: 0~127
n For example, if the AEG Release Rate is set to a small
value, the sustain becomes long.
24-1. AEGInitL (AEG Initial Level)
24-2. AEGDcy1L
(AEG Decay 1 Level)
24-3. AEGSusL (AEG Sustain Level)
You can set various Level parameters for the
Amplitude Envelope Generator (AEG). Combined
with the Rate settings above (AEG Atk/Dcy 1/Dcy 2/
Rel R), these can be used control the change in output
level from the moment a note is pressed on the
keyboard to the moment it is released (see illustration
below). You can set different values for each Element.
❏
Settings: 0~255

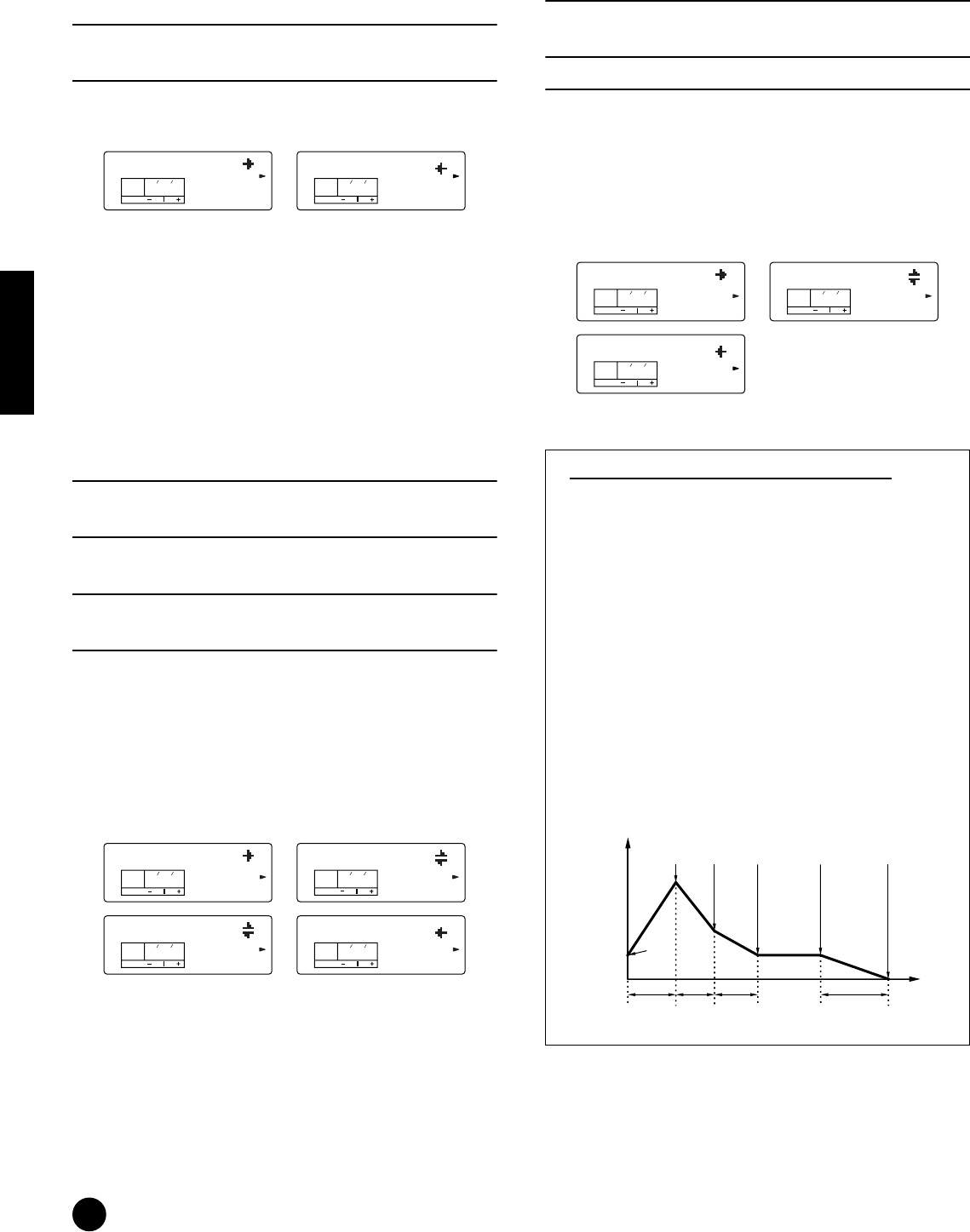

Amplitude Envelope Generator Settings
There are four Rate settings (which control how fast
the volume changes from one Level to the next) and
three Level settings (which control the actual
volume). When you play a key, the volume goes to
the Initial Level, at the speed set in Attack Rate.
From there it goes to the Decay and Sustain Levels,
at speeds set in Decay 1 and 2 Rates, respectively.
When the note is released, the volume goes down to
zero, at the speed set in Release Rate.
In the illustration below, the letters a - d indicate the
respective Rate (R) settings for Attack - Release.
The greater the value for each Rate, the faster the
filter goes to the next set Level — in other words, the
time it takes for the volume to change (between
Level settings) becomes shorter. Velocity Sensitivity
and other parameters can also be set if required.
FEGAtkVel
KEYELEMPAR T
OCTAVE
PAG E
+0
22 E 1
FEGOthVel
KEYELEMPAR T
OCTAVE
PAG E
+0
22 E 1
AEGAtkR
KEYELEMPAR T
OCTAVE
PAG E
127
23 E 1
AEGDcy1R
KEYELEMPAR T
OCTAVE
PAG E
000
23 E 1
AEGDcy2R
KEYELEMPAR T
OCTAVE
PAG E
000
23 E 1
AEGRelR
KEYELEMPAR T
OCTAVE
PAG E
000
23 E 1
AEGInitL
KEYELEMPAR T
OCTAVE
PAG E
255
24 E 1
AEGDcy1L
KEYELEMPAR T
OCTAVE
PAG E
255
24 E 1
AEGSusL
KEYELEMPAR T
OCTAVE
PAG E
255
24 E 1
0
Release
Level
Attack
Level
Init
Level
Attack
Time
Decay1
Time
Decay2
Time
Release
Time
Decay1
Level
Sustain
Level
Key off
Time
Volume
