CHAPTER 1: Getting Started
10
English

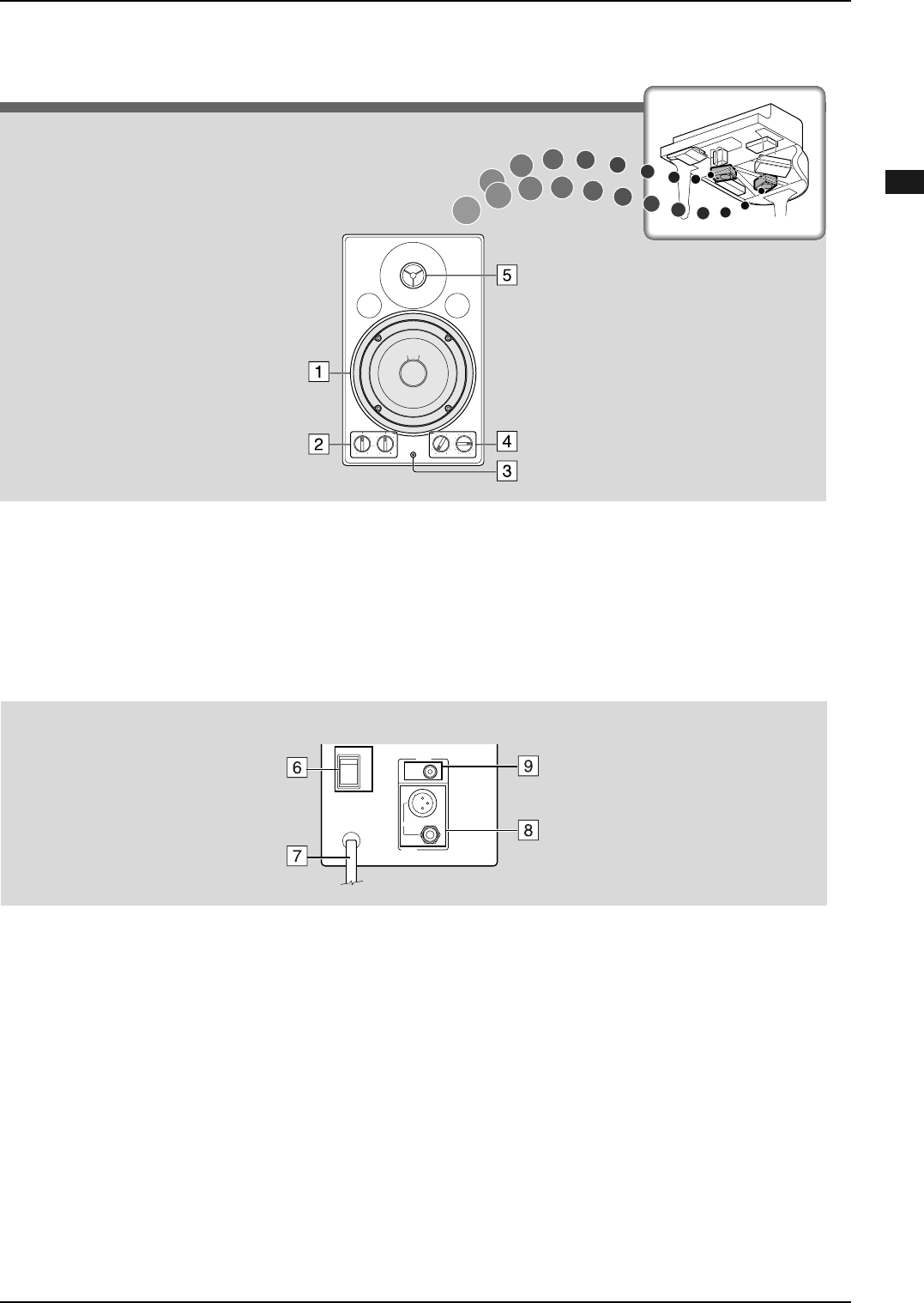

A Woofer unit
B LOW/HIGH volume controls
Adjust the base/treble sound volume.
C Power indicator
Lights up while the speaker is turned on.
D LINE1/2 volume controls
Adjust the sound volume for each line input.
Note: For normal use, turn down the LINE1
volume completely, and turn up the LINE2 volume at
the three o’clock position.
E Tweeter unit
F POWER switch
Turns the monitor speaker on/off.
G AC power cable
H INPUT LINE2 (XLR connector/phone jack)
Accepts the line output from the I/O Center or
external AV equipment.
I INPUT LINE1 (RCA jack)
Accepts the line output from external AV equipment.
LOW HIGH LINE
12
Note: The location of
each unit differs
depending on the model.
Mon
i
tor Spea
k
ers*
* Supplied only with the Mark IV Series.
— Front —
ON
INPUT
LINE 1
( 10dB)
LINE 2
(+4dB)
PARALLEL
OFF
POWER
— Rear —
