78 Chapter 7—Solo, Monitors & Meters
01V—Owner’s Manual
Monitor Setup
The signal source for the monitor out and phones is selected using the MONITOR
SETUP parameters on SETUP page 2. Selectable sources are: the stereo output, stereo
cascade in, aux sends 1 through 4, or bus outs 1 through 4. Since the Solo function has
priority, these sources can be monitored only when the Solo function is off (i.e., no
channels are soloed). Signals can be sourced pre-fader (PFL) or post-fader (AFL).
Other parameters include monitor trim and a mono/stereo switch.

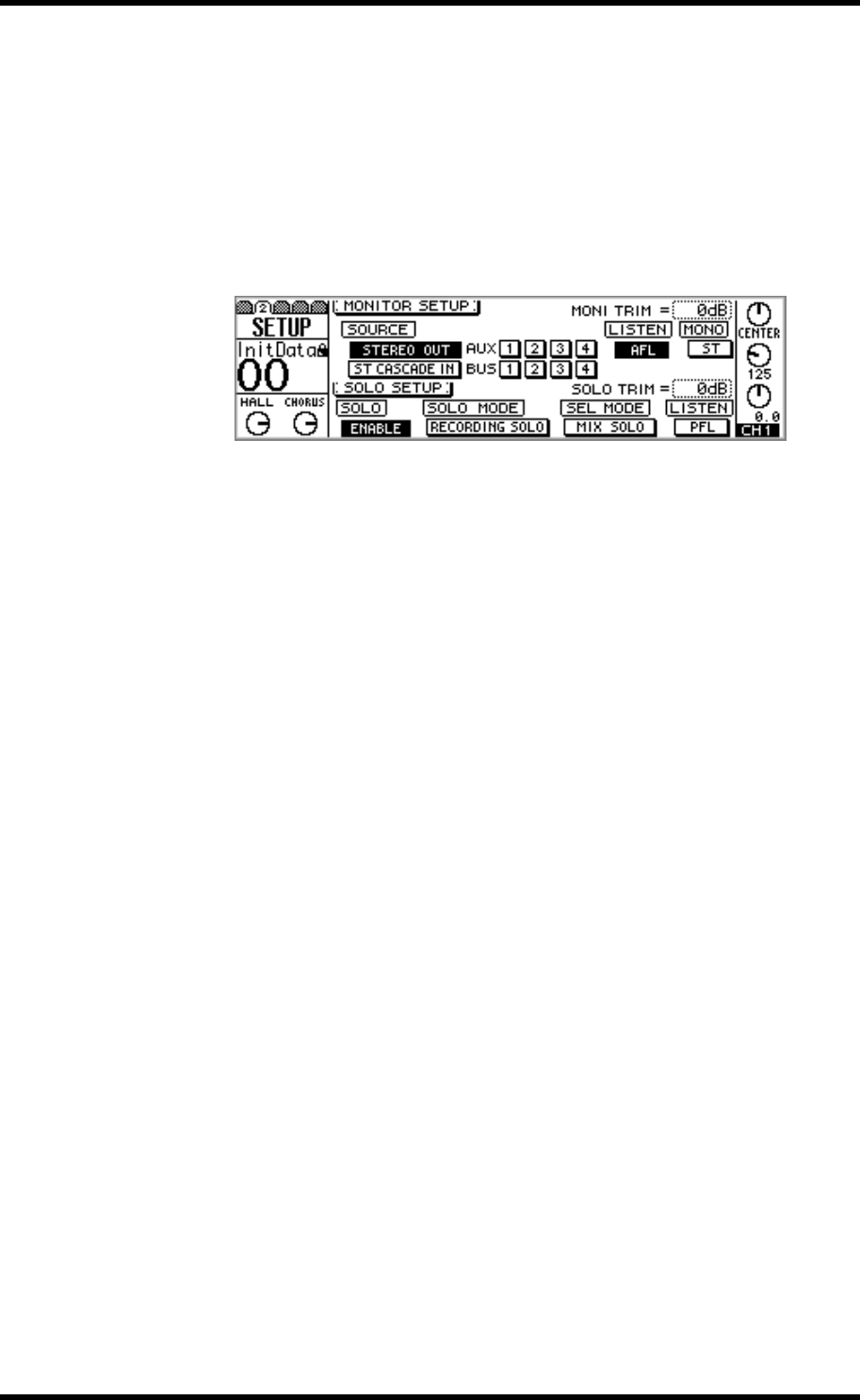

1. Use the [SETUP] button to locate SETUP page 2 shown below.
2. Use the cursor buttons to select the MONITOR SETUP parameters, and
the PARAMETER wheel, [–1/DEC] and [+1/INC] buttons, and [ENTER] but-
ton to set them.
SOURCE—These switches are used to select the signal source for the monitor out and
phones. You can select the stereo out, stereo cascade in, aux sends 1 through 4, or bus
outs 1 through 4. Several sources can be selected simultaneously.
LISTEN—This switch sets the monitor signal source to pre-fader (PFL) or post-fader
(AFL). It affects the stereo out, aux send, and bus out monitor sources. For example,
when set to PFL, the stereo out can be monitored regardless of the position of the stereo
master fader. When set to AFL, however, this fader must be raised in order to monitor
the stereo out.
MONI TRIM—This parameter is used to adjust the level of the monitor signal from
–60 dB to +6 dB.
MONO—This switch sets the monitor and phone’s signals to mono (MONO) or ste-
reo (ST). When set to MONO, the left and right signals are summed together to form a
mono mix, which is attenuated by –3 dB.
Using Monitor
To monitor, for example, the stereo out, proceed as follows.
1. Connect a monitoring system (amp, speakers) to the MONITOR OUT.
2. Make sure that the MONITOR–2TR IN switch is set to MONITOR.
3. Set the MONITOR OUT LEVEL control midway.
If you are using headphones, set the PHONES LEVEL control midway.
4. Use the [SETUP] button to locate SETUP page 2, explained previously.
5. Set the SOURCE to STEREO OUT.
If MONITOR SETUP LISTEN is set to AFL, the STEREO fader must be raised. Other-
wise, you won’t hear anything.
