23
Getting Ready
Getting Ready
2
Connect supplied AC power cable to the RD-700, and plug the
other end into an AC power outlet.
3
Connect the RD-700 and the external device.
Use audio cables to connect audio equipment, such as an amp or speakers.
Use MIDI cables to connect MIDI devices.
If you are using headphones, plug them into the PHONES jack.
Connect pedal switches or expression pedals as necessary.
Connecting Pedals
Connect the pedal included with the RD-700 to one of the Pedal jacks.
When connected to the Damper jack, the pedal can be used as a damper
pedal.
Connecting the pedal to the FC-1 or FC-2 jack allows you to assign a variety
of functions to the pedal (p. 73).

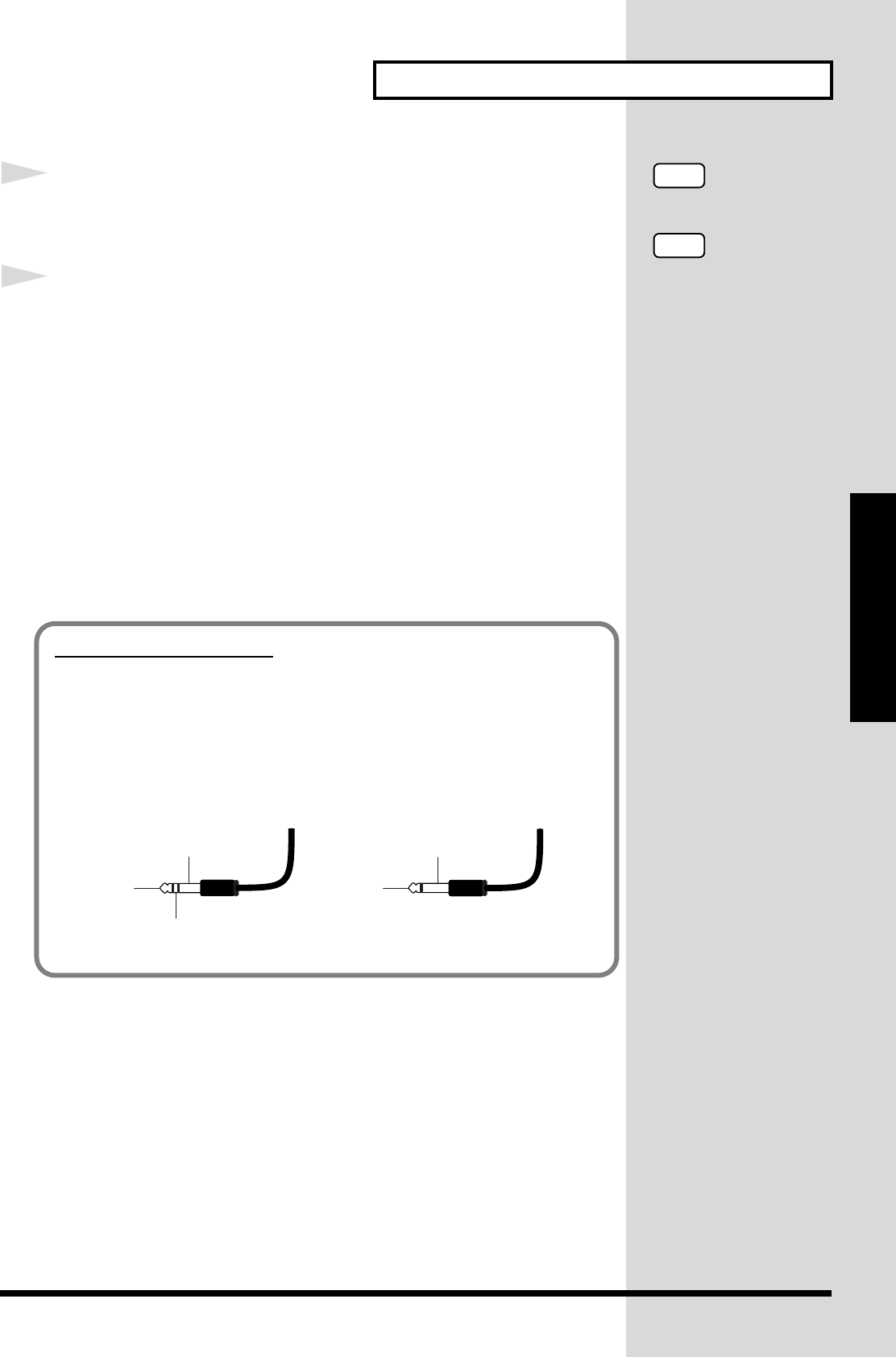

About the Output Jacks
The RD-700’s output jacks are capable of use with either balanced or
unbalanced output.
To use balanced output, use a cable with a balanced (TRS type) phone plug.
To use unbalance output, use a cable with an unbalanced (TS type) phone
plug.
fig.TRS
SLEEVE (Ground)
RING (Cold)
TIP (Hot)
SLEEVE (Ground)
TIP (Hot)
TRS TS
NOTE
Use Stereo headphones.
NOTE
Use only the specified
expression pedal (EV-5;
sold separately). By
connecting any other
expression pedal, you risk
causing malfunction and/
or damage to the unit.
