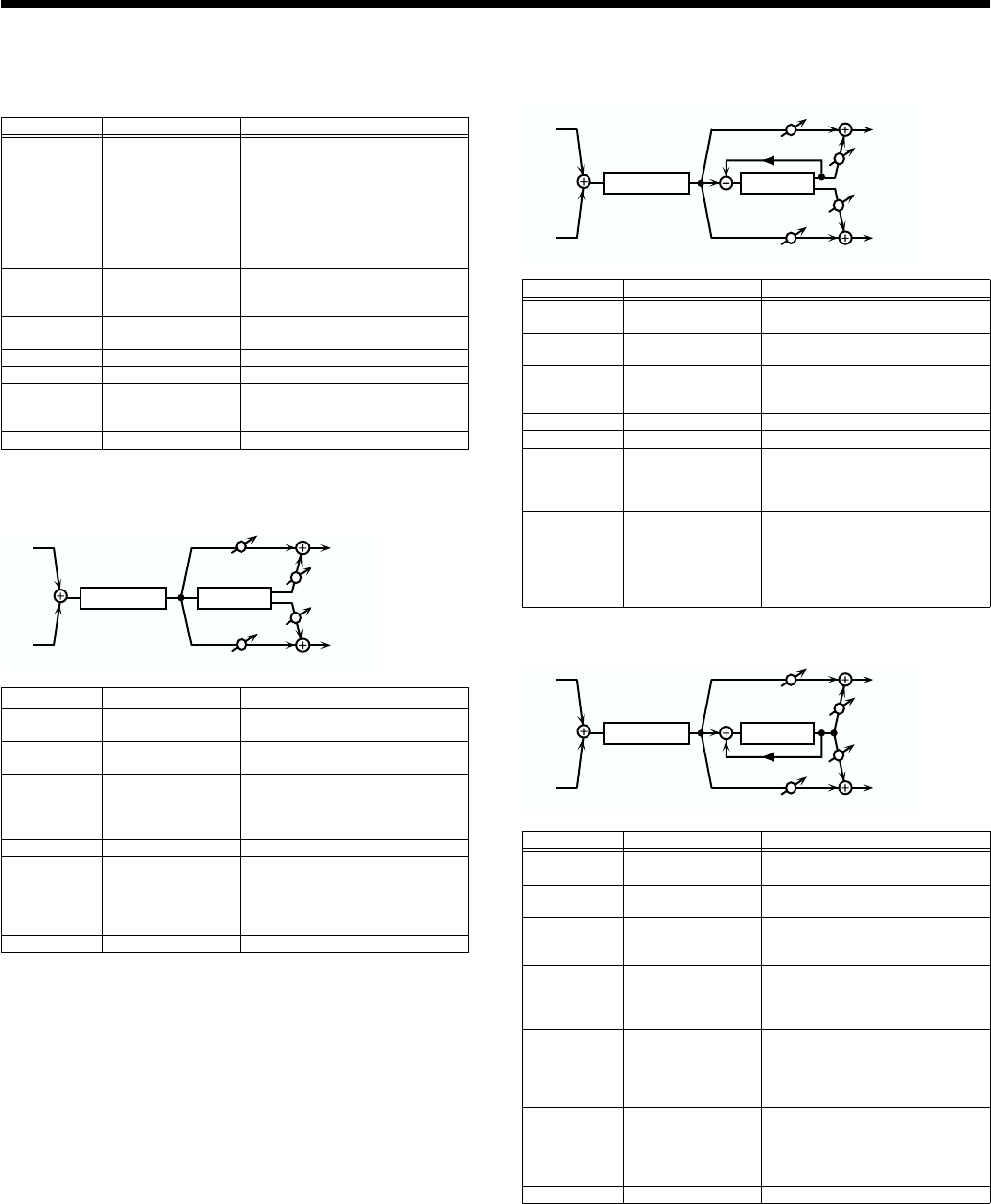

Effects/Parameter List
25: GATED REVERB
This is a special type of reverb in which the reverberant sound is cut
off before its natural length.
26: OD -> CHORUS
(Overdrive -> Chorus)
fig.02-026m
27: OD -> FLANGER
(Overdrive -> Flanger)
fig.02-027m
28: OD -> DELAY (Overdrive -> Delay)
fig.02-028m
29: DIST -> CHORUS
(Distortion -> Chorus)
The parameters are essentially the same as in “26: OD -> CHORUS,”
with the exception of the following two.
OD Drive -> Dst Drive, OD Pan -> Dist Pan
Parameter Value Explanation
Type NORMAL,
REVERSE,
SWEEP1, SWEEP2
Type of reverb
NORMAL: conventional gated
reverb
REVERSE: backwards reverb
SWEEP1: the reverberant
sound moves from right to left
SWEEP2: the reverberant
sound moves from left to right
Pre Delay 0.0–100.0 ms Adjusts the delay time from the di-
rect sound until the reverb sound
is heard.
Gate Time 5–500 ms Adjusts the time from when the re-
verb is heard until it disappears.
Low Gain -15–+15 dB Gain of the low range
High Gain -15–+15 dB Gain of the high range
Balance # D100:0W–D0:100W Volume balance between the direct
sound (D) and the reverb sound
(W)
Level # 0–127 Output Level
Parameter Value Explanation
OD Drive 0–127 Degree of distortion
Also changes the volume.
OD Pan # L64–63R Stereo location of the overdrive
sound
Cho Delay 0.0–100.0 ms Adjusts the delay time from the di-
rect sound until the chorus sound
is heard.
Cho Rate 0.05–10.00 Hz Frequency of modulation
Cho Depth 0–127 Depth of modulation
Cho Bal # D100:0W–D0:100W Adjusts the volume balance be-
tween the sound that is sent
through the chorus (W) and the
sound that is not sent through the
chorus (D).
Level 0–127 Output Level
L in
R in
Chorus
Overdrive
L out
R out
Balance W
Balance W
Balance D
Balance D
Parameter Value Explanation
OD Drive 0–127 Degree of distortion
Also changes the volume.
OD Pan # L64–63R Stereo location of the overdrive
sound
Flg Delay 0.0–100.0 ms Adjusts the delay time from when
the direct sound begins until the
flanger sound is heard.
Flg Rate 0.05–10.00 Hz Frequency of modulation
Flg Depth 0–127 Depth of modulation
Flg Fbk -98–+98% Adjusts the proportion of the
flanger sound that is fed back into
the effect. Negative (-) settings will
invert the phase.
Flg Bal # D100:0W–D0:100W Adjusts the volume balance be-
tween the sound that is sent
through the flanger (W) and the
sound that is not sent through the
flanger (D).
Level 0–127 Output Level
Parameter Value Explanation
OD Drive 0–127 Degree of distortion
Also changes the volume.
OD Pan # L64–63R Stereo location of the overdrive
sound
Dly Time 0.0–500.0 ms Adjusts the delay time from the di-
rect sound until the delay sound is
heard.
Delay Fbk -98–+98% Adjusts the proportion of the delay
sound that is fed back into the ef-
fect. Negative (-) settings will in-
vert the phase.
Dly HFDmp 200–8000 Hz,
BYPASS
Adjusts the frequency above
which sound fed back to the effect
will be cut. If you do not want to
cut the high frequencies, set this
parameter to BYPASS.
Delay Bal # D100:0W–D0:100W Adjusts the volume balance be-
tween the sound that is sent
through the delay (W) and the
sound that is not sent through the
delay (D).
Level 0–127 Output Level
L in
R in
Flanger
Overdrive
L out
R out
Balance W
Balance W
Balance D
Balance D
Feedback
L in
R in
Delay
Overdrive
L out
R out
Balance W
Balance W
Balance D
Balance D
Feedback
