Model LR16 [Before using the unit]

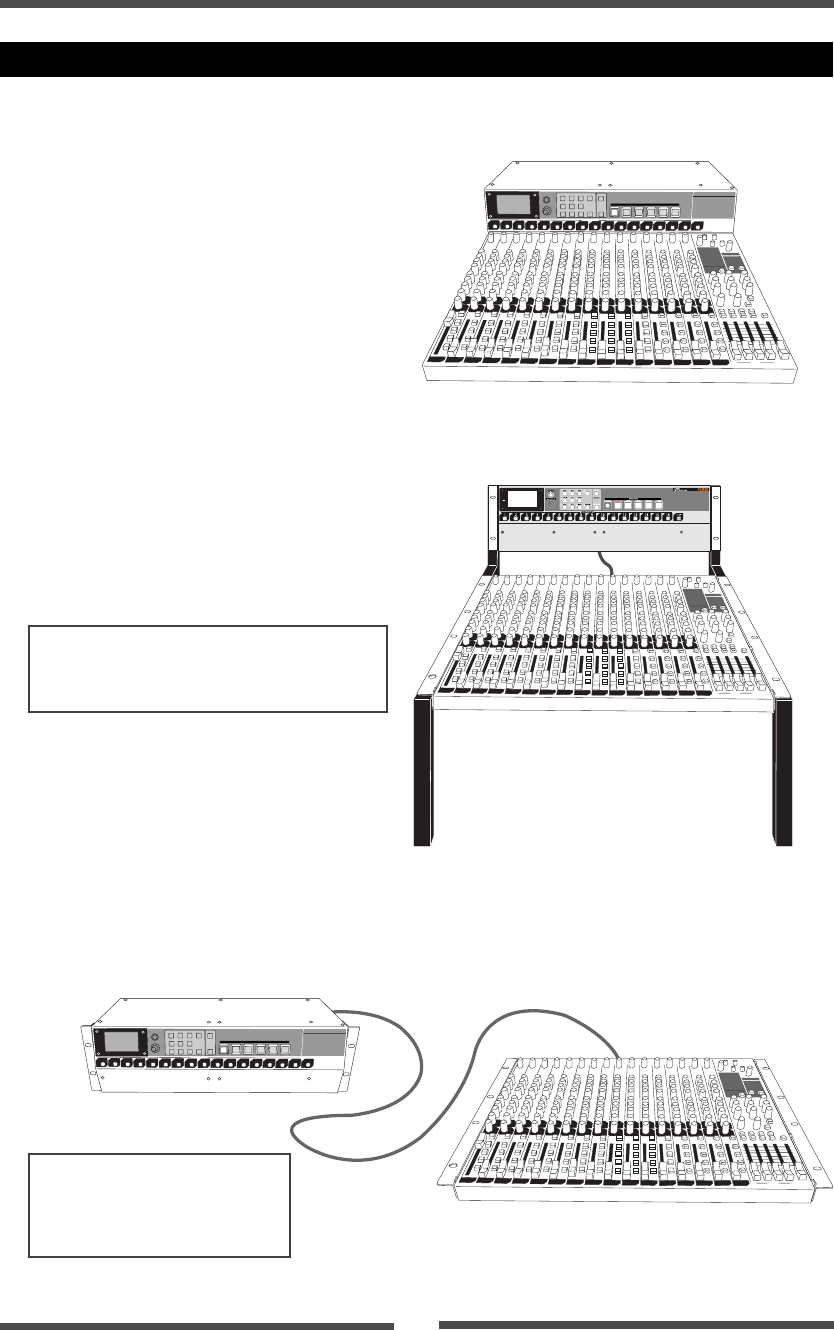

The control unit and main unit of the LR16 are separated. You can set these units flexibly.
<Usage example 1>
Integrating the main unit and control unit.
You can integrate the main unit and con-
trol unit.
Use the supplied CAT-5 cable (approx. 50
cm length) to connect between the units.
See the next page for details about how
to integrate the units.
<Usage example 2>
Mounting the main unit and control unit on the rack.
As shown on the right, you can mount
each unit to the rack. In this case, use a
CAT-5 cable which has enough length
for connecting between the units (the
cable supplied with the LR16 is approxi-
mately 50 cm length).
<Usage example 3>
Setting the main unit and control unit separately.
You can set the main unit and control unit over a 50 meter distance. In such a case, use a
CAT-5 cable which has enough length for connecting between the units (the cable sup-
plied with the LR16 is approximately 50 cm length).
Usage examples of LR16
<Note>:
Use only a CAT-5 STP cable for
connection between the main unit and the
control unit.
<Note>:
Use only a CAT-5 STP
cable for connection between
the main unit and the control
unit.
