Model LR16 [Recorder function / Other functions]
In the following procedure, it is assumed the fol-
lowing. The upgrade file is transfered to the inter-
nal hard disk of the LR16 or the USB memory stick
to which the upgrade file is copied from a personal
computer is connected to the [USB HOST] port of
the LR16, The LR16 is turned off.

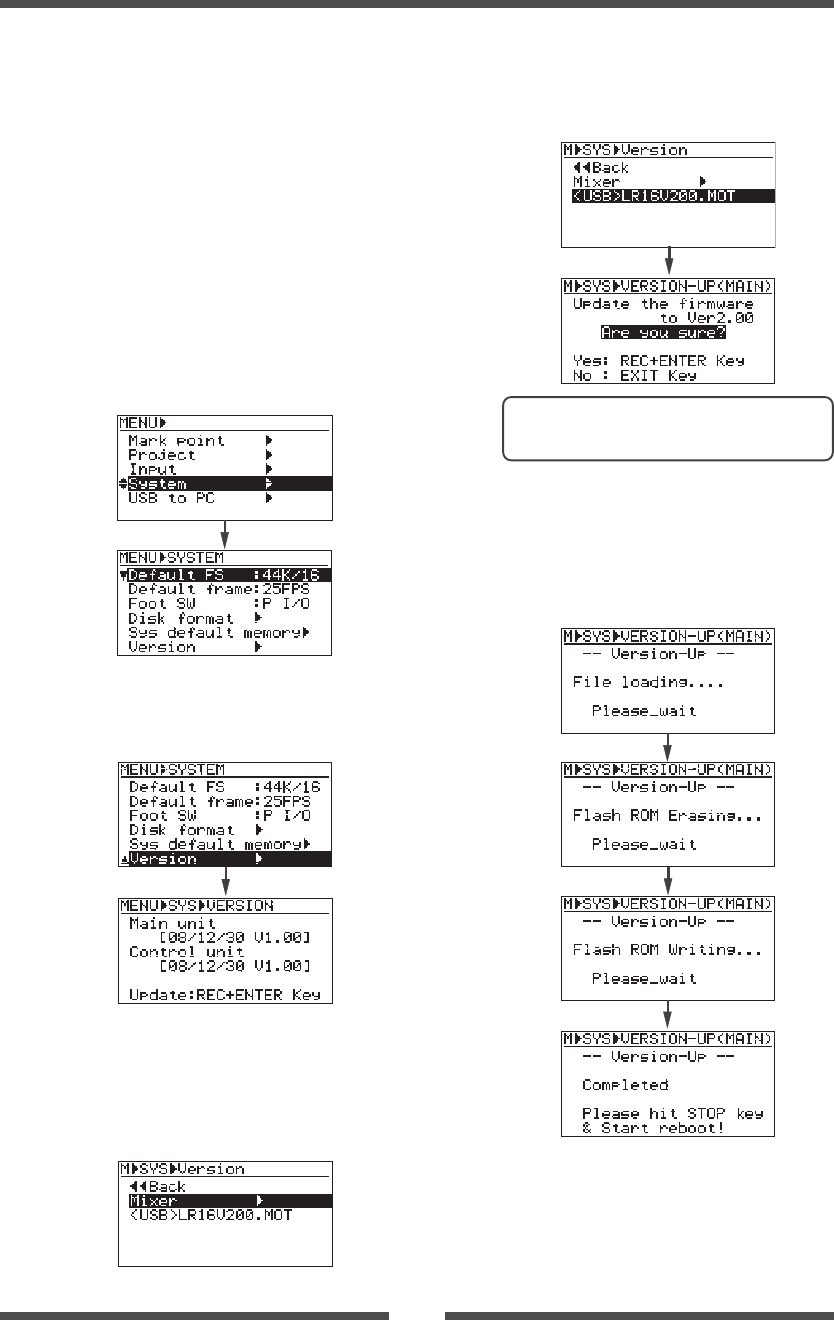

(1) Turn on the LR16.
(2) Press the [ENTER] key to bring up the
MENU screen.
When you bring up the MENU screen for
the first time, "Mark point" is highlighted.
(3) Use the [MENU] dial to highlight "System"
and press the [ENTER] key.
The display now shows the system menu
screen.
(4) Use the [MENU] dial to highlight "Version"
and press the [ENTER] key.
The current software version is shown.
(5) While holding down the [RECORD] key,
press the [ENTER] key.
The upgrade file which is stored to the
internal hard disk (or the USB memory
connected to the [USB HOST] port) is
displayed.
(6) Use the [MENU] dial to highlight the
upgrade file (with ".MOT" extension) and
press the [ENTER] key.
The confirmation message appears.
(7) While holding down the [RECORD] key,
press the [ENTER] key.
The LR16 starts upgrading the software
version and the display changes as follows.
It takes some time until completing the
software upgrade.
<Memo>: To cancel version upgrading,
press the [STOP] key.
(8) When upgrading is completed, press the
[STOP] key to exit the MENU mode.
(9) Turn the LR16 off and then on.
