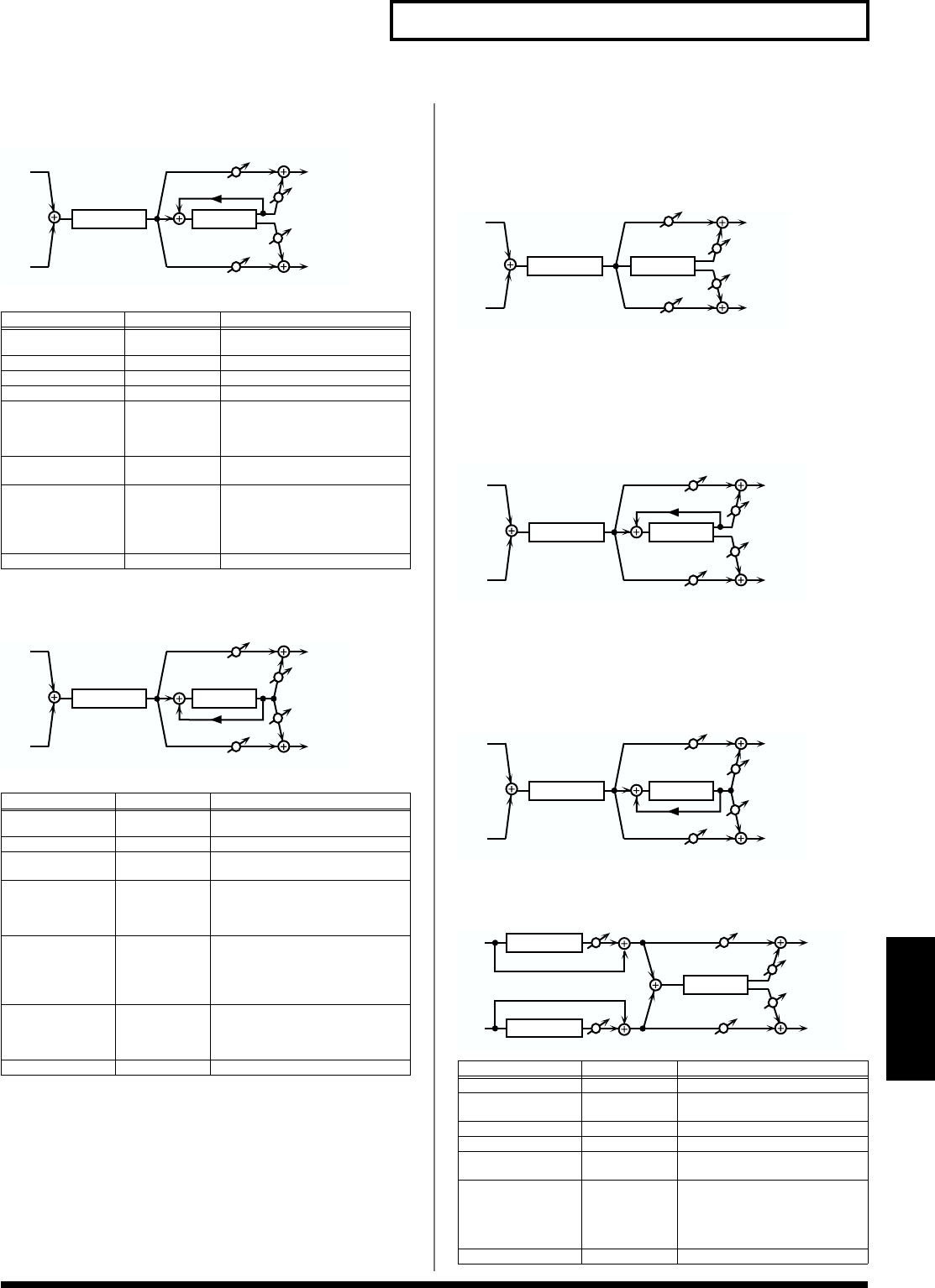

Using the XV-2020 Effects
Using the XV-2020
Effects
27: OVERDRIVE -> FLANGER
fig.02-027m
28: OVERDRIVE -> DELAY
fig.02-028m
29: DISTORTION -> CHORUS
The parameters are essentially the same as in “26: OD -> CHORUS,”
with the exception of the following two.
OD Drive -> Dist Drive, OD Pan -> Dist Pan
fig.02-029m
30: DISTORTION -> FLANGER
The parameters are essentially the same as in “27: OD ->
FLANGER,” with the exception of the following two.
OD Drive -> Dist Drive, OD Pan -> Dist Pan
fig.02-030m
31: DISTORTION -> DELAY
The parameters are essentially the same as in “28: OD -> DELAY,”
with the exception of the following two.
OD Drive -> Dist Drive, OD Pan -> Dist Pan
fig.02-031m
32: ENHANCER -> CHORUS
fig.02-032m
Parameter Value Description
OD Drive 0-127 Degree of distortion
Also changes the volume.
OD Pan # L64-63R Stereo location of the overdrive
Flg Rate 0.05-10.00 Hz Frequency of modulation
Flg Depth 0-127 Depth of modulation
Flg Feedback -98-+98 % Adjusts the amount of the
flanger sound that’s fed back
into the effect. Negative (-) set-
tings invert the phase.
Flg Delay 0.0-100.0 ms Adjusts the time until the flanger
is heard.
Flg Balance # D100:0W-
D0:100W
Adjusts the volume balance be-
tween the sound sent through
the flanger (W) and the sound
that’s not sent through the
flanger (D).
Level 0-127 Output level
Parameter Value Description
OD Drive 0-127 Degree of distortion
Also changes the volume.
OD Pan # L64-63R Stereo location of the overdrive
Delay Time 0.0-500.0 ms Adjusts the time until the delay is
heard.
Dly Feedback -98-+98 % Adjusts the amount of the delay
sound that’s fed back into the ef-
fect. Negative (-) settings invert the
phase.
Dly HF Damp 200-8000 Hz,
BYPASS
Adjusts the frequency above
which sound fed back to the effect
is filtered out. If you don’t want to
filter out any high frequencies, set
this parameter to BYPASS.
Dly Balance # D100:0W-
D0:100W
Adjusts the volume balance be-
tween the sound sent through the
delay (W) and the sound that’s not
sent through the delay (D).
Level 0-127 Output level
L in
R in
Flanger
Overdrive
L out
R out
Balance W
Balance W
Balance D
Balance D
Feedback
L in
R in
Delay
Overdrive
L out
R out
Balance W
Balance W
Balance D
Balance D
Feedback
Parameter Value Description
Enhancer Sens # 0-127 Sensitivity of the enhancer
Enhancer Mix 0-127 Level of the overtones generated
by the enhancer
Cho Rate 0.05-10.00 Hz Frequency of modulation
Cho Depth 0-127 Depth of modulation
Cho Delay 0.0-100.0 ms Adjusts the time until the chorus
is heard.
Cho Balance # D100:0W-
D0:100W
Adjusts the volume balance be-
tween the sound sent through
the chorus (W) and the sound
that’s not sent through the cho-
rus (D).
Level 0-127 Output level
L in
R in
Chorus
Distortion
L out
R out
Balance W
Balance W
Balance D
Balance D
L in
R in
Flanger
Distortion
L out
R out
Balance W
Balance W
Balance D
Balance D
Feedback
L in
R in
Delay
Distortion
L out
R out
Balance W
Balance W
Balance D
Balance D
Feedback
Chorus
L in
R in
L out
R out
Mix
Mix
Enhancer
Enhancer
Balance W
Balance W
Balance D
Balance D
