Adding Effects
25: STEP FLANGER
This is a flanger in which the flanger pitch changes in steps. The
speed at which the pitch changes can also be specified in terms of a
note-value of a specified tempo.

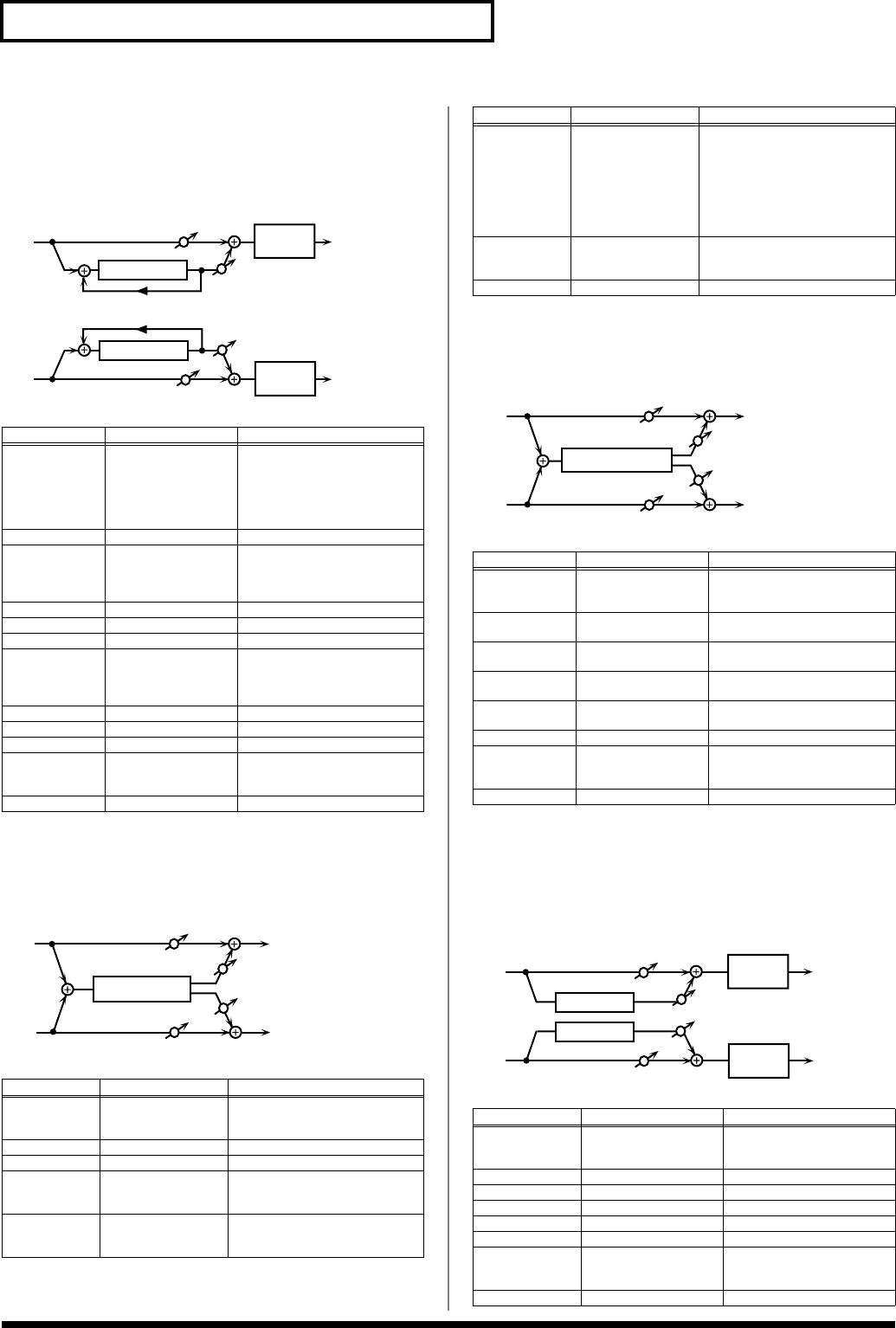

fig.MFX-25
26: HEXA-CHORUS
Uses a six-phase chorus (six layers of chorused sound) to give
richness and spatial spread to the sound.
fig.MFX-26
27: TREMOLO CHORUS
This is a chorus effect with added Tremolo (cyclic modulation of
volume).
fig.MFX-27
28: SPACE-D
This is a multiple chorus that applies two-phase modulation in
stereo. It gives no impression of modulation, but produces a
transparent chorus effect.
fig.MFX-28
Parameter
Value Explanation
Filter Type
OFF, LPF, HPF Type of filter
OFF:
no filter is used
LPF:
cuts the frequency
range above the Cutoff Freq
HPF:
cuts the frequency
range below the Cutoff Freq
Cutoff Freq 200–8000 Hz Basic frequency of the filter
Pre Delay 0.0–100.0 ms Adjusts the delay time from
when the direct sound begins
until the flanger sound is
heard.
Rate # 0.05–10.00 Hz, note Frequency of modulation
Depth 0–127 Depth of modulation
Phase 0–180 deg Spatial spread of the sound
Feedback # -98– +98 % Adjusts the proportion of the
flanger sound that is fed back
into the effect. Negative (-) set-
tings will invert the phase.
Step Rate # 0.10–20.00 Hz, note Rate (period) of pitch change
Low Gain -15– +15 dB Gain of the low range
High Gain -15– +15 dB Gain of the high range
Balance # D100:0W–D0:100W Volume balance between the
direct sound (D) and the
flanger sound (W)
Level 0–127 Output Level
Parameter
Value Explanation
Pre Delay 0.0–100.0 ms Adjusts the delay time from the
direct sound until the chorus
sound is heard.
Rate # 0.05–10.00 Hz, note Frequency of modulation
Depth 0–127 Depth of modulation
Pre Delay
Deviation
0–20 Adjusts the differences in Pre
Delay between each chorus
sound.
Depth
Deviation
-20– +20 Adjusts the difference in modu-
lation depth between each cho-
rus sound.
R in
R out
L in
L out
Feedback
Feedback
Balance W
Balance D
Balance W
Balance D
2-Band
EQ
2-Band
EQ
Step Flanger
Step Flanger
Balance W
Balance W
L in
R in
L out
R out
Hexa Chorus
Balance D
Balance D
Pan Deviation
0–20 Adjusts the difference in stereo
location between each chorus
sound.
0:
All chorus sounds will be in
the center.
20:
Each chorus sound will be
spaced at 60 degree intervals
relative to the center.
Balance # D100:0W–D0:100W Volume balance between the di-
rect sound (D) and the chorus
sound (W)
Level 0–127 Output Level
Parameter
Value Explanation
Pre Delay 0.0–100.0 ms Adjusts the delay time from
the direct sound until the cho-
rus sound is heard.
Chorus Rate # 0.05–10.00 Hz, note Modulation frequency of the
chorus effect
Chorus Depth 0–127 Modulation depth of the cho-
rus effect
Tremolo Rate # 0.05–10.00 Hz, note Modulation frequency of the
tremolo effect
Tremolo
Separation
0–127 Spread of the tremolo effect
Tremolo Phase 0–180 deg Spread of the tremolo effect
Balance # D100:0W–D0:100W Volume balance between the
direct sound (D) and the trem-
olo chorus sound (W)
Level 0–127 Output Level
Parameter
Value Explanation
Pre Delay
0.0–100.0 ms Adjusts the delay time from
the direct sound until the
chorus sound is heard.
Rate # 0.05–10.00 Hz, note Frequency of modulation
Depth 0–127 Depth of modulation
Phase 0–180 deg Spatial spread of the sound
Low Gain -15– +15 dB Gain of the low range
High Gain -15– +15 dB Gain of the high range
Balance # D100:0W–D0:100W Volume balance between
the direct sound (D) and the
chorus sound (W)
Level 0–127 Output Level
Parameter
Value Explanation
Tremolo Chorus
L in
R in
L out
R out
Balance D
Balance D
Balance W
Balance W
L in
R in
Space D
Space D
L out
R out
2-Band
EQ
2-Band
EQ
Balance W
Balance W
Balance D
Balance D
